616 H (1690818) - AGCO Lawn Tractor, 16hp Transmission & Rear Tire Group Parts Diagram

Lawn Tractor, 16hp

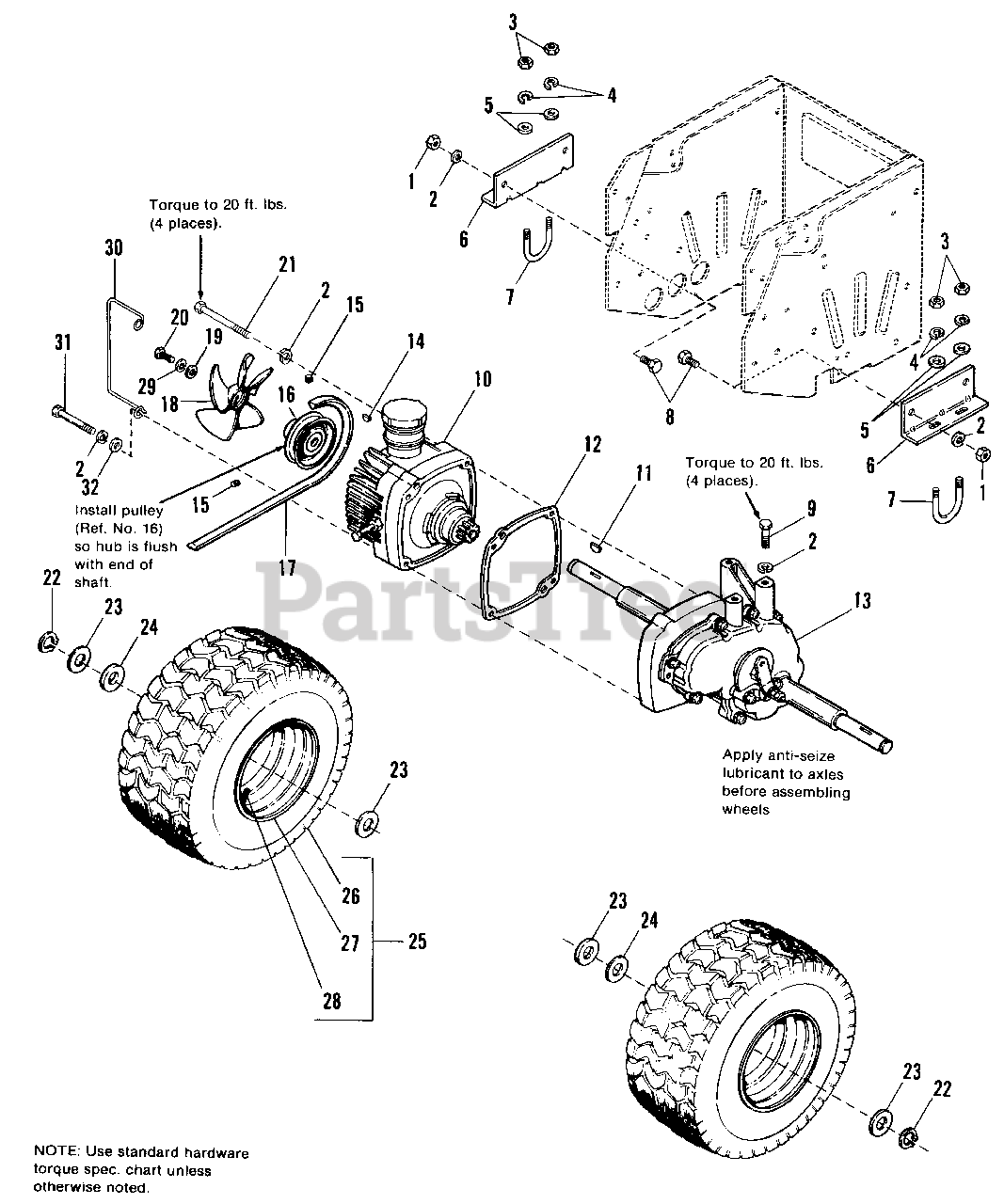

Transmission & Rear Tire Group Parts Diagram

  • Title

1

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

3

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2817642

WASHER, 5/16

$

$

Not available

6

Simplicity 1670562

SUPPORT, Transmission

$

$

Not available

7

Simplicity 1670563

"U" BOLT, Axle

$

$

Not available

8

Simplicity 2821965

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

9

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

10

Simplicity 1700690SM

TRANSMISSION, Hydrostatic (See page 15 for parts list)

$1738.99

$

Usually ships in 2-12 days

0

11

Simplicity 2810536SM

KEY, Woodruff, #18, 1/4 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 1671154SM

GASKET

$13.99

$

In Stock, only 1 left!

0

13

GEAR REDUCTION & DIFFERENTIAL ASSY.

$

$

Not available

14

Simplicity 2805119SM

KEY, Woodruff, #3, 1/8 x 1/2

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960617SM

SETSCREW, Hex Soc. Cup., 1/4-28 x 1/4

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1670855SM

PULLEY, Transmission

$95.99

$

Usually ships in 2-12 days

0

17

Simplicity 1672135SM

BELT, "V" Drive

$45.99

$

Usually ships in 2-12 days

0

18

Simplicity 1671718SM

FAN, 7" Diameter

$

$

Not available

19

Simplicity 2172742

WASHER, 1/4 x 1-1/4 x 14 Ga.

$

$

Not available

20

Simplicity 2821958

CAPSCREW, Hex, 1/4-2 x 1/2

$

$

Not available

21

Simplicity 2823903

CAPSCREW, Hex, 3/8-16 x 3

$

$

Not available

22

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 2168055SM

WASHER

$

$

Not available

24

Simplicity 2827241

WASHER, Plain, 1 x 1-3/4 x 1/4

$

$

Not available

25

Simplicity 1672236

WHEEL & TIRE ASSY.

$

$

Not available

26

Simplicity 1665326

TIRE, 20 x 10-10

$

$

Not available

27

Simplicity 1672235SM

WHEEL ASSY.

$

$

Not available

28

Simplicity 2156305

VALVE STEM & CAP

$

$

Not available

29

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

30

Simplicity 1672061

BELT STOP

$

$

Not available

31

Simplicity 2822918

CAPSCREW, 3/8-16 x 3-1/4

$

$

Not available

32

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
