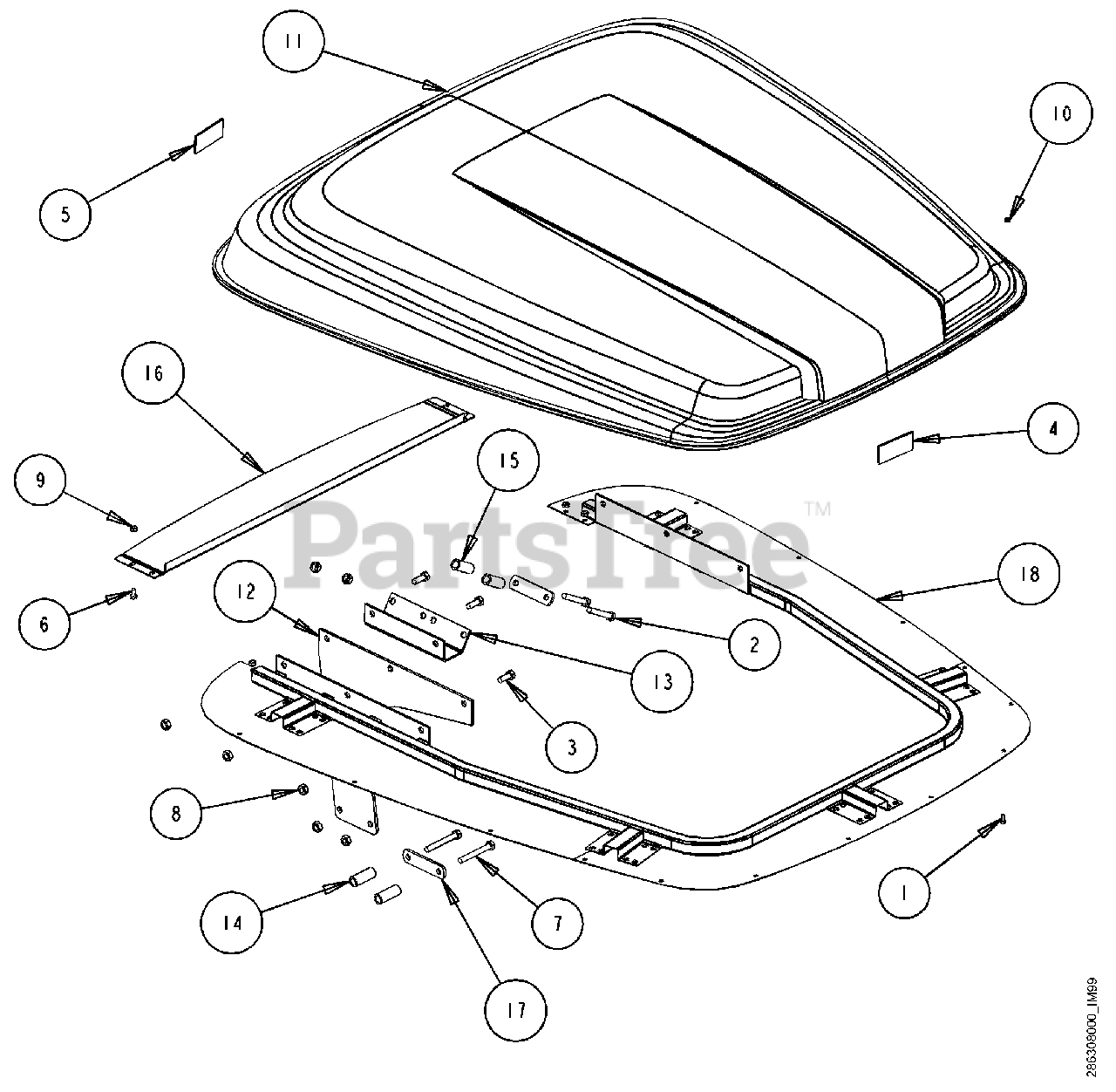

616 (590-616-100) - Cub Cadet Canopy att Sun Shade Parts Diagram

Canopy

Sun Shade Parts Diagram

  • Title

1

Bolt RHMS #10-24 x 1/2

$

$

Not available

2

Bolt HHCS 3/8-16 x 2 1/2 Gr5

$

$

Not available

3

Bolt HHCS 3/8-16 x 1 Gr5

$

$

Not available

4

Reflector Amber

$

$

Not available

5

Reflector Red

$

$

Not available

6

Bolt HHCS 1/4-20 x 1/2 Gr5

$

$

Not available

7

Bolt HHCS 3/8-16 x 3 Gr5

$

$

Not available

8

Nut FL Lock 3/8-16

$

$

Not available

9

Nut FL Lock 1/4-20

$

$

Not available

10

Nut HXNYLK #10-24

$

$

Not available

11

Canopy, Plastic

$

$

Not available

12

Mount Plate

$

$

Not available

13

Top Bracket

$

$

Not available

14

Bushing (1 3/4" Long)

$

$

Not available

15

Bushing (1 15/16" Long)

$

$

Not available

16

Rear Flange

$

$

Not available

17

Inner Plate

$

$

Not available

18

Canopy Frame

$

$

Not available
