616 (2020185) - AGCO Lawn Tractor, 16.5hp SIDE PLATES AND DROP HOUSING Parts Diagram

Lawn Tractor, 16.5hp

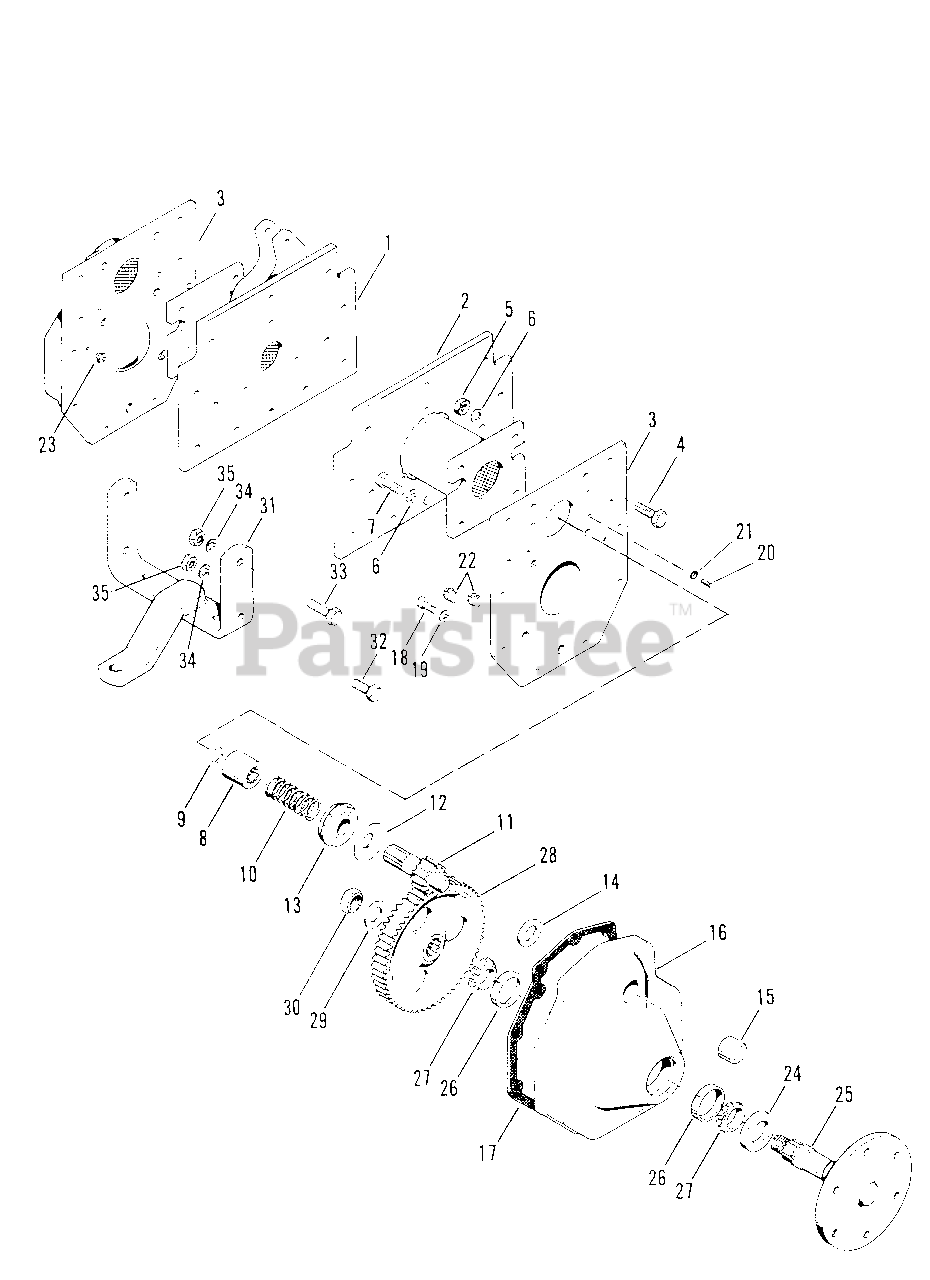

SIDE PLATES AND DROP HOUSING Parts Diagram

  • Title
1

Simplicity 173440

Axle Extension, L.H.

$

$

Not available

2

Simplicity 168022

Axle Extension, R.H.

$

$

Not available

3

Simplicity 168048

Housing Plate

$

$

Not available

4

Simplicity 2715100

Hex Capscrew, 1/2"-13 x 1-1/2" lg.

$

$

Not available

5

Simplicity 2717006

Hex Nut, Full, 1/2"-13

$

$

Not available

6

Simplicity 2720004

Locks Washer, 1/2"

$

$

Not available

7

Simplicity 715138

Hex Capscrew, 1/2"-13 x 1" lg.

$132.99

$

Usually ships in 2-12 days

0

8

Simplicity 168050

Axle Coupe

$

$

Not available

9

Simplicity 168051

Retaining Ring

$

$

Not available

10

$

$

Not available

11

Simplicity 168053

Bull Pinion

$

$

Not available

12

$

$

Not available

13

Simplicity 2168054SM

Rear Axle Bearing

$119.99

$

Usually ships in 2-12 days

0

14

Simplicity 2168055SM

Thrust Washer

$

$

Not available

15

Simplicity 2168056SM

Roller Bearing

$

$

Not available

16

Simplicity 168003

Drop Housing

$

$

Not available

$29.99

$

In Stock, only 4 left!

0

18

Simplicity 2715096

Hex Capscrew,

$

$

Not available

19

Simplicity 2720002

Lock Washer, 3/11"

$

$

Not available

20

$

$

Not available

21

$

$

Not available

22

Simplicity 2726003

Pipe Plug

$

$

Not available

23

Simplicity 2172899SM

Relief Valve

$14.99

$

Usually ships in 2-12 days

0

24

$

$

Not available

25

Simplicity 171495

Rear Axle Assembly

$

$

Not available

26

Simplicity 168060

Bearing Cup

$

$

Not available

27

Simplicity 168061

Bearing Cone

$

$

Not available

28

Simplicity 168062

Bull Gear

$

$

Not available

29

Simplicity 2105083

Plain Washer

$

$

Not available

30

Simplicity 2717531

Flex Lock Nut

$

$

Not available

31

$

$

Not available

32

Simplicity 2715100

Hex Capscrew, 1/2"-13 x 1-1/2" lg.

$

$

Not available

33

Simplicity 2715141

Hex Capscrew, 1/2"-13 x 2" lg.

$

$

Not available

34

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

35

Simplicity 2717006

Hex Nut, 1/2"-13

$

$

Not available
