615000x31A - Scotts 15" Snow Thrower (2000) Illustrated Parts List Parts Diagram

15" Snow Thrower

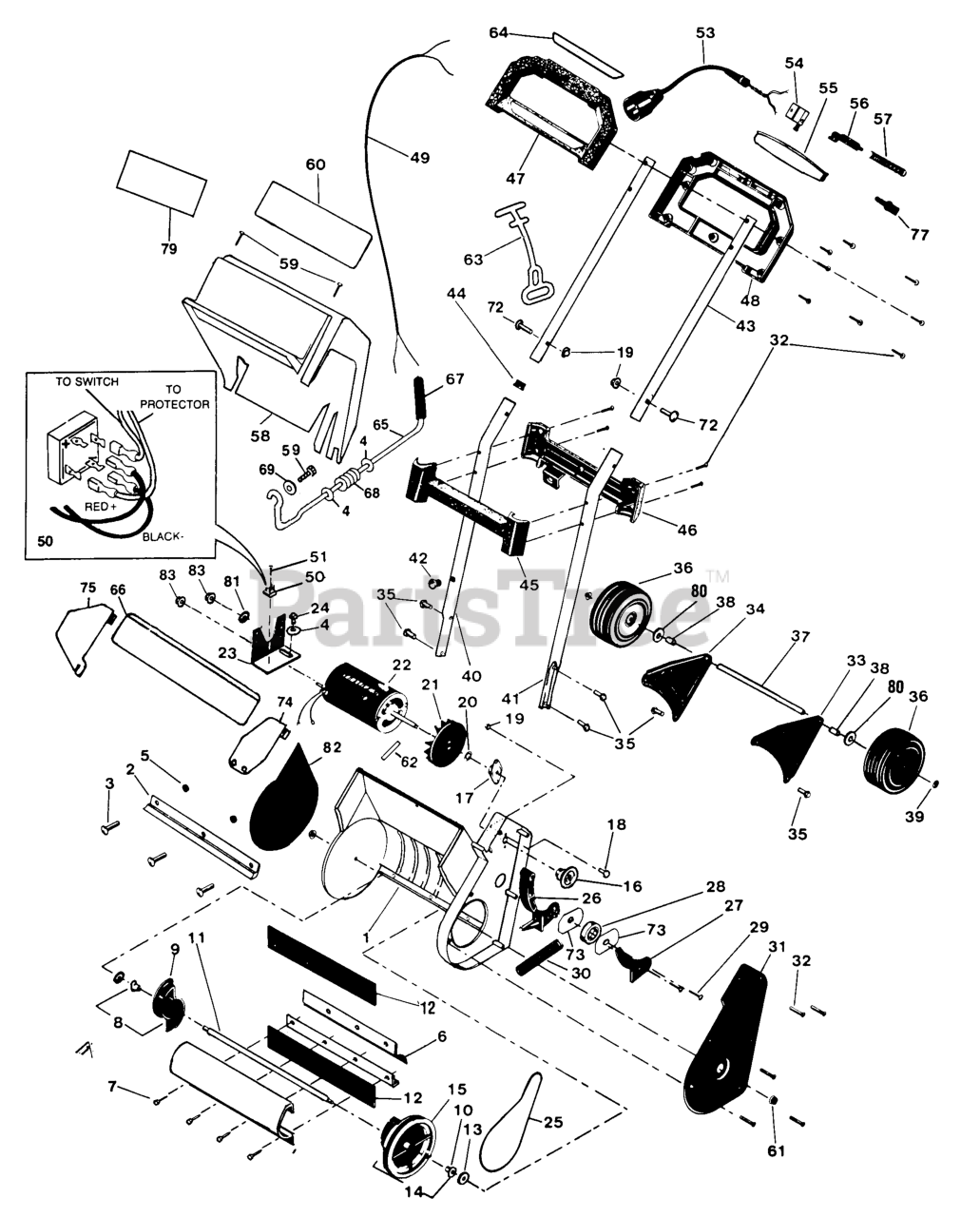

Illustrated Parts List Parts Diagram

  • Title
1

Murray 583599MA

HOUSING-SCOOP

$95.99

$

Usually ships in 2-12 days

0

2

Murray 905040MA

BLADE, SCRAPER

$

$

Not available

3

Murray 3809

BOLT, 1/4-20X .63 CARR

$3.49

$

Usually ships in 2-12 days

0

4

Murray 071067MA

WASHER, FLAT .28X .63X.065

$82.99

$

In Stock, only 1 left!

0

5

Murray 780285MA

NUT, 1/4-20 WDFLWHIZ-LK
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

6

Murray 780169

SEGMENT-DRUM

$

$

Not available

7

Murray 780212

SCREW 10-24-3/4

$

$

Not available

8

UNKNOWN

$

$

Not available

9

Murray 780605

CAP-DRUM END

$9.99

$

Usually ships in 2-12 days

0

10

Murray 904970MA

BEARING-BRONZE

$5.49

$

Usually ships in 2-12 days

0

11

Murray 780211

SHAFT-PADDLE

$

$

Not available

12

Murray 780238MA

PADDLE-AUGER

$34.99

$

Usually ships in 2-12 days

0

13

Murray 996407

WASHER, FLAT .328X .75

$3.49

$

Usually ships in 2-12 days

0

14

UNKNOWN

$

$

Not available

15

Murray 780336

PULLEY-DRIVEN

$

$

Not available

16

Murray 583688

PULLEY-DRIVE

$24.99

$

Usually ships in 2-12 days

0

17

Murray 904975

BEARING, SELF ALIGN

$

$

Not available

18

Murray 313686MA

SCREW, 1/4-20X .50

$3.99

$

In Stock, only 2 left!

0

19

Murray 303008MA

NUT, 1/4-20 HEXKEPS
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

20

Murray 577598MA

RING, RET E.30X.04TRU5133-37

$4.49

$

In Stock, only 1 left!

0

21

Murray 760256MA

FAN,MOTOR

$12.99

$

Usually ships in 2-12 days

0

22

Murray 586949

MOTOR,120V

$268.99

$

Usually ships in 2-12 days

0

23

Murray 904988

BRKT, MOTOR MT.

$2.99

$

Usually ships in 2-12 days

0

24

Murray 904985

SCREW, 1/4-14X .75

$3.49

$

Usually ships in 2-12 days

0

25

Murray 780239MA

BELT-DRIVE

$17.99

$

Usually ships in 2-12 days

0

26

Murray 904993

ARM-IDLER

$3.49

$

Usually ships in 2-12 days

0

27

Murray 904998

RETAINER IDLER BRNG

$4.49

$

Usually ships in 2-12 days

0

28

Murray 904997

BEARING - BALL

$8.49

$

Usually ships in 2-12 days

0

29

Murray 905140

SCREW, #8 X.63 POLY

$1.99

$

Usually ships in 2-12 days

0

30

Murray 904999

SPRING IDLER

$

$

Not available

31

Murray 780240-853

COVER-DRIVE HSNG LH

$

$

Currently unavailable

32

Murray 1694MA

SCREW, #8 X 3/4 POLY

$3.49

$

Usually ships in 2-12 days

0

33

Murray 904976E853

BRKT, WHEEL LH

$

$

Currently unavailable

34

Murray 904977E853

BRKT, WHEEL RH

$

$

Currently unavailable

35

Murray 310169MA

SCREW, 1/4-20X .63 WAHHTAP
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

36

Murray 585556

WHEEL, 15" SNOW SHOVEL

$13.99

$

Usually ships in 2-12 days

0

37

Murray 904980

AXLE WHEEL

$

$

Not available

38

Murray 585564

SPACE R-WHL,.328IDX.06X9/16L

$

$

Currently unavailable

39

Murray 3535MA

NUT, PUSH ON CAP .312 OD

$4.99

$

Usually ships in 2-12 days

0

40

Murray 578914-853

HANDLE, LOWER RH

$18.99

$

Usually ships in 2-12 days

0

41

Murray 578918-853

HANDLE, LOWER LH

$

$

Currently unavailable

42

Murray 905017

BUSHING

$3.49

$

Usually ships in 2-12 days

0

43

Murray 578906-853

HANDLE, UPPER

$

$

Currently unavailable

44

Murray 579527

PROTECTOR, HARNESS

$3.99

$

Usually ships in 2-12 days

0

45

Murray 903142

HARNESS, PROTECTOR

$

$

Not available

46

Murray 577120

SET,HANDLE.ASSIST

$

$

Not available

46-1

ORDER SET

$

$

Not available

46-2

ORDER SET

$

$

Not available

47

Murray 578981

SET,HANDLE.GRIP

$

$

Currently unavailable

47-1

ORDER SET

$

$

Not available

47-2

ORDER SET

$

$

Not available

48

UNKNOWN

$

$

Not available

49

Murray 905018MA

WIRE HARNESS

$7.49

$

Usually ships in 2-12 days

0

50

Murray 780062MA

RECTIFIER, FULL WAVE

$24.99

$

Usually ships in 2-12 days

0

51

Murray 761327

SCREW, #6 X .50

$

$

Currently unavailable

53

Murray 905030MA

CONNECTIN LEAD

$19.99

$

Usually ships in 2-12 days

0

54

Murray 780266

SWITCH, TRM 2516LOV

$5.99

$

Usually ships in 2-12 days

0

55

Murray 905027

BAR-SWITCH

$6.49

$

Usually ships in 2-12 days

0

56

Murray 905028

LEVER-SWITCH

$

$

Currently unavailable

57

Murray 905029

SPRING - SWITCH

$3.49

$

Usually ships in 2-12 days

0

58

Murray 905047

COVER-MOTOR

$

$

Currently unavailable

59

Murray 905032

SCREW, 10-16X .63

$

$

Not available

60

UNKNOWN

$

$

Not available

61

Murray 711634MA

NUT, 5/16-18 WDFLLK

$3.99

$

Usually ships in 2-12 days

0

62

Murray 12569MA

PIN, GROOVED.125 DIAX.63LG

$3.49

$

Usually ships in 2-12 days

0

63

Murray 10542MA

STRAIN RELIEF, CORD

$

$

Not available

64

UNKNOWN

$

$

Not available

65

Murray 905009

ROD-DISCHARGE

$35.99

$

Usually ships in 2-12 days

0

66

Murray 905006

SLIDER-VANE

$22.99

$

Usually ships in 2-12 days

0

67

Murray 905045

GRIP, HAND VINYL

$4.49

$

Usually ships in 2-12 days

0

68

Murray 583687

SPRING,ACTUATOR ROD NEW-15

$

$

Not available

69

Murray 900373

WASHER, FLAT .750X .22X.070

$1.99

$

Usually ships in 2-12 days

0

72

Murray 905408

BOLT, 1/4-20X1.25

$

$

Not available

73

Murray 904996

RETAINER-BELT

$

$

Currently unavailable

74

Murray 905007

OUTER DEFLECTOR

$

$

Not available

75

Murray 780068MA

INNER DEFLECTOR

$4.49

$

Usually ships in 2-12 days

0

77

Murray 780069MA

KEY, HI-PRO

$2.49

$

Usually ships in 2-12 days

0

79

UNKNOWN

$

$

Not available

80

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

81

Murray 780325

GROMMETT.5 X .81 #GRO 1/2UL

$

$

Not available

82

Murray 780206-853

COVER-HSNG RH

$

$

Currently unavailable

83

Murray 071056MA

NUT, #10-32 HNYLLK

$10.99

$

Usually ships in 2-12 days

0
