615000x30NB - Murray 15" Snow Thrower (2003) General Assembly Parts Diagram

15" Snow Thrower

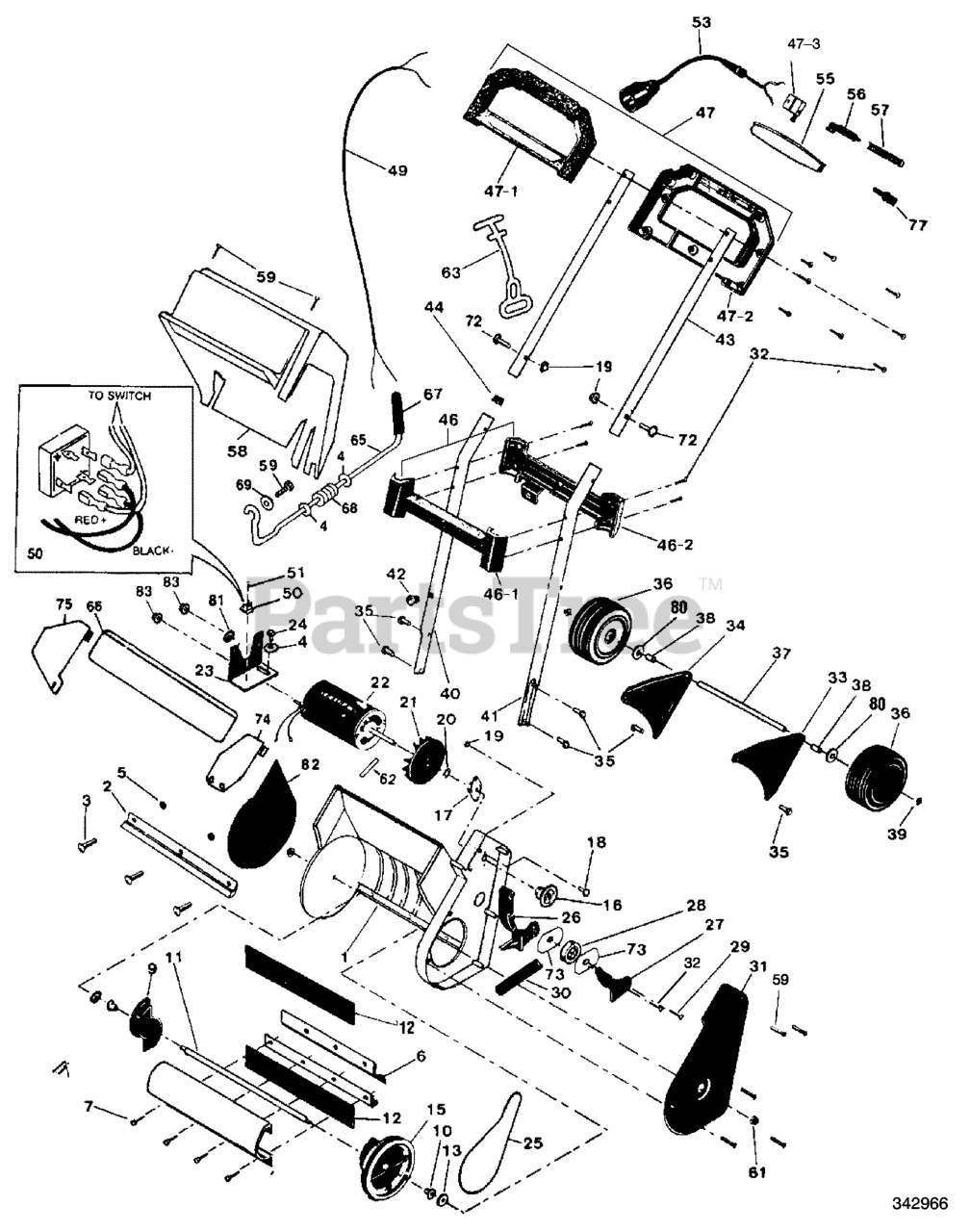

General Assembly Parts Diagram

  • Title

1

Murray 583599MA

Housing, Scoop

$95.99

$

Usually ships in 2-12 days

0

2

Murray 905040MA

Blade, Scraper

$

$

Not available

3

Murray 3809

Bolt

$3.49

$

Usually ships in 2-12 days

0

4

Murray 71067

Washer, Flat
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

5

Murray 73826

Nut, 1/4-20

$4.99

$

In Stock, Qty 20+

0

6

Murray 780169

Segment, Drum

$

$

Not available

7

Murray 780212

Screw

$

$

Not available

9

Murray 780605

Cap, Drum End

$9.99

$

Usually ships in 2-12 days

0

10

Murray 904970MA

Bearing, Bronze

$5.49

$

Usually ships in 2-12 days

0

11

Murray 780211

Shaft, Paddle

$

$

Not available

12

Murray 780238MA

Paddle, Auger

$34.99

$

Usually ships in 2-12 days

0

13

Murray 996407

Washer, Flat

$3.49

$

Usually ships in 2-12 days

0

15

Murray 780336

Pulley, Driven

$

$

Not available

16

Murray 583688

Pulley, Drive

$24.99

$

Usually ships in 2-12 days

0

17

Murray 904975

Bearing, Self Align

$

$

Not available

18

Murray 313686MA

Screw, 1/4-20

$3.99

$

In Stock, only 2 left!

0

19

Murray 303008MA

Nut, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

20

Murray 577598MA

Ring, Retainer

$4.49

$

In Stock, only 1 left!

0

21

Murray 760256MA

Fan, Motor

$12.99

$

Usually ships in 2-12 days

0

22

Murray 1501639

Motor, 120V

$

$

Currently unavailable

--

Murray 3291

AMP Terminal .250 2-250

$

$

Not available

--

Murray 50802

AMP Terminal .250 Male 42

$

$

Not available

--

Murray 50803MA

Insulator

$27.99

$

Usually ships in 2-12 days

0

23

Murray 904988

Bracket, Motor Mount

$2.99

$

Usually ships in 2-12 days

0

24

Murray 904985

Screw, 1/4-14x0.75

$3.49

$

Usually ships in 2-12 days

0

25

Murray 37X134

Belt, Drive

$

$

Currently unavailable

26

Murray 904993

Arm, Idler

$3.49

$

Usually ships in 2-12 days

0

27

Murray 904998

Bearing, Retainer Idler

$4.49

$

Usually ships in 2-12 days

0

28

Murray 904997

Bearing, Ball

$8.49

$

Usually ships in 2-12 days

0

29

Murray 26X303MA

Screw

$3.99

$

Usually ships in 2-12 days

0

30

Murray 904999

Spring Idler

$

$

Not available

31

Murray 780240E701MA

Cover, Left Drive Housing

$15.99

$

Usually ships in 2-12 days

0

32

Murray 1694MA

Screw

$3.49

$

Usually ships in 2-12 days

0

33

Murray 904976E701

Bracket, Left Wheel

$8.99

$

Usually ships in 2-12 days

0

34

Murray 904977E701MA

Bracket, Right Wheel

$8.99

$

Usually ships in 2-12 days

0

35

Murray 310169MA

Screw
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

36

Murray 585556

Wheel, 15"

$13.99

$

Usually ships in 2-12 days

0

37

Murray 904980

Axle

$

$

Not available

38

Murray 585564

Spacer, Wheel

$

$

Currently unavailable

39

Murray 3535MA

Nut, Push On Cap

$4.99

$

Usually ships in 2-12 days

0

40

Murray 578914E701

Handle, Right Lower

$16.99

$

Usually ships in 2-12 days

0

41

Murray 578918E701

Handle, Left Lower

$16.99

$

Usually ships in 2-12 days

0

42

Murray 905017

Bushing

$3.49

$

Usually ships in 2-12 days

0

43

Murray 578906E701MA

Handle, Upper

$18.99

$

Usually ships in 2-12 days

0

44

Murray 579527

Protector, Harness

$3.99

$

Usually ships in 2-12 days

0

45

Murray 903142

Harness, Protector

$

$

Not available

46

Murray 577120

Set, Handle Assist

$

$

Not available

46-1

Order Set

$

$

Not available

46-2

Order Set

$

$

Not available

47

Murray 1501759

Set, Handle Grip

$30.99

$

Usually ships in 2-12 days

0

47-1

Order Set

$

$

Not available

47-2

Order Set

$

$

Not available

47-3

Order Set

$

$

Not available

49

Murray 905018MA

Harness, Wire

$7.49

$

Usually ships in 2-12 days

0

50

Murray 780062MA

Rectifier, Full Wave

$24.99

$

Usually ships in 2-12 days

0

51

Murray 761327

Screw

$

$

Currently unavailable

53

Murray 905030MA

Connecting Lead

$19.99

$

Usually ships in 2-12 days

0

55

Murray 905027

Bar, Switch

$6.49

$

Usually ships in 2-12 days

0

56

Murray 905028

Lever, Switch

$

$

Currently unavailable

57

Murray 905029

Spring, Switch

$3.49

$

Usually ships in 2-12 days

0

58

Murray 905047

Cover, Motor

$

$

Currently unavailable

59

Murray 905032

Screw

$

$

Not available

61

Murray 711634MA

Nut

$3.99

$

Usually ships in 2-12 days

0

62

Murray 12569MA

Pin, Grooved

$3.49

$

Usually ships in 2-12 days

0

63

Murray 10542MA

Strain Relief, Cord

$

$

Not available

65

Murray 905009

Rod, Discharge

$35.99

$

Usually ships in 2-12 days

0

66

Murray 905006

Slider, Vane

$22.99

$

Usually ships in 2-12 days

0

67

Murray 905045

Grip, Hand Vinyl

$4.49

$

Usually ships in 2-12 days

0

68

Murray 583687

Spring, Actuator Rod

$

$

Not available

69

Murray 900373

Washer, Flat

$1.99

$

Usually ships in 2-12 days

0

72

Murray 905408

Bolt

$

$

Not available

73

Murray 904996

Retainer, Belt

$

$

Currently unavailable

74

Murray 905007

Deflector, Outer

$

$

Not available

75

Murray 780068MA

Deflector, Inner

$4.49

$

Usually ships in 2-12 days

0

77

Murray 780069MA

Key, Hi-Pro

$2.49

$

Usually ships in 2-12 days

0

80

Murray 71071

Washer, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

81

Murray 780325

Grommet

$

$

Not available

82

Murray 780206E701

Cover, Right Housing

$16.99

$

Usually ships in 2-12 days

0

83

Murray 71056

Nut

$

$

Not available

--

Murray 906520

Wrench

$

$

Not available

--

Murray F-031040C

Book, Instruction

$

$

Currently unavailable
