613777-2215-J1 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

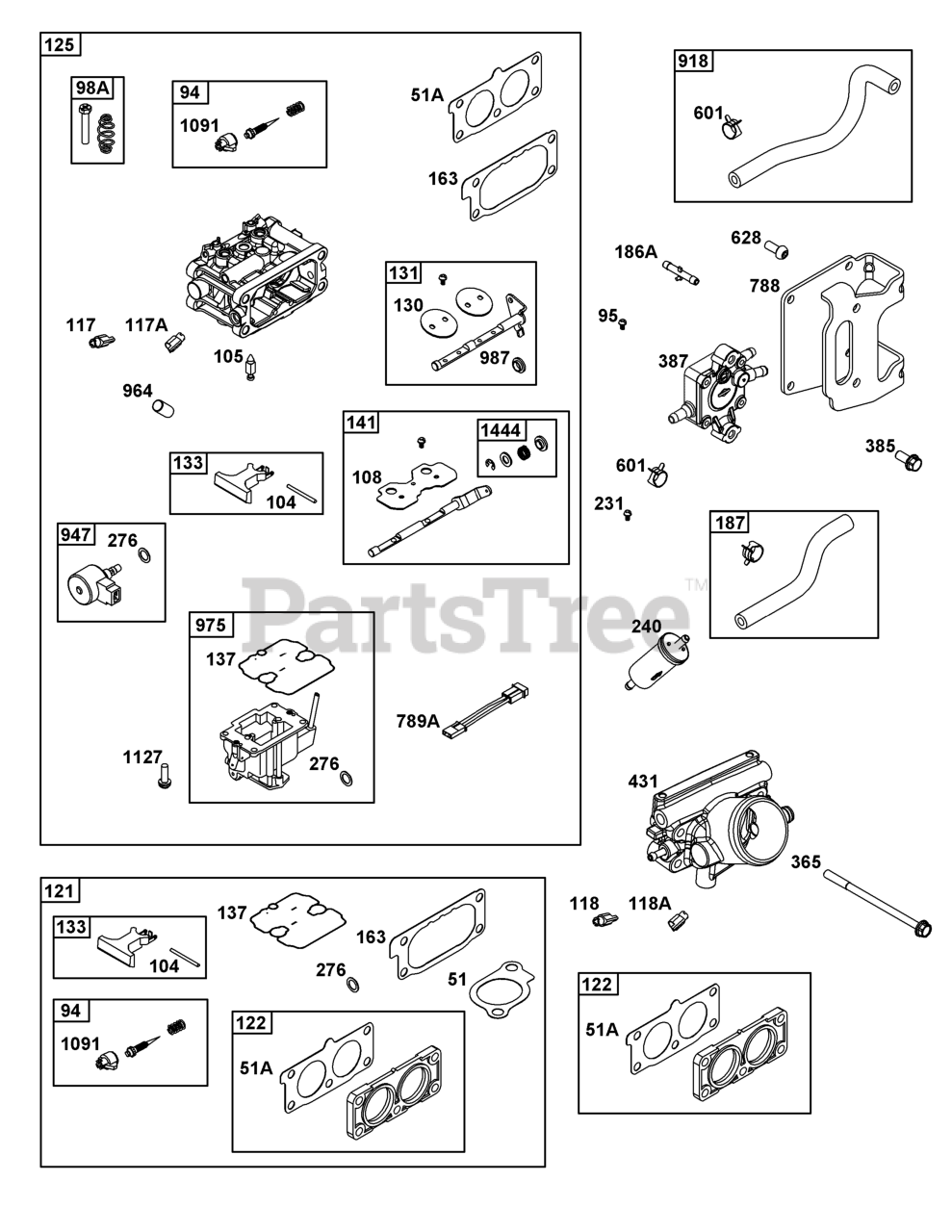

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

94

Briggs & Stratton 843295

KIT, Idle Mixture

$43.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 809716

KIT, Idle Speed

$41.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690739

PIN, Float Hinge

$6.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 843366

VALVE, Float Needle

$36.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 844652

VALVE, Choke

$15.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 843587

JET, Main

Note: (Standard) (Left Jet)

$41.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 842098

JET, Main

Note: (Standard) (Right Jet)

$20.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 842104

JET, Main

Note: (High Altitude) (Left Jet)

$32.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 843587

JET, Main

Note: (High Altitude) (Right Jet)

$41.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 843297

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$

$

Not available

122

Briggs & Stratton 846245

SPACER, Carburetor

$13.99

$

In Stock, only 4 left!

0

125

Briggs & Stratton 845272

CARBURETOR

$398.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 841913

VALVE, Throttle

$16.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 844789

KIT, Throttle Shaft

$103.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 809637

FLOAT, Carburetor

$

$

Not available

137

Briggs & Stratton 809645

GASKET, Float Bowl

$9.99

$

In Stock, Qty 12

0

141

Briggs & Stratton 845037

KIT, Choke Shaft

$75.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

186A

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

In Stock, only 1 left!

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 806476

WASHER, Sealing

$6.99

$

In Stock, only 2 left!

0

365

Briggs & Stratton 841853

SCREW

Note: (Carburetor/Throttle Body)

$6.49

$

In Stock, only 2 left!

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 7

0

387

Briggs & Stratton 84003048

PUMP, Fuel

$65.99

$

In Stock, Qty 20+

0

431

Briggs & Stratton 845862

MANIFOLD, Intake

Note: (Part information located in Air Cleaner Group.)

$58.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 16

0

628

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

788

Briggs & Stratton 844530

BRACKET, Fuel Pump

$41.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 843364

HARNESS, Wiring

$56.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 844526

HOSE, Vacuum

$20.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 842109

SOLENOID, Fuel

$

$

Not available

964

Briggs & Stratton 809640

CAP, Carburetor

$10.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 842106

BOWL, Float

$114.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 809639

SEAL, Choke/Throttle Shaft

$7.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691515

CAP-LIMITER

$8.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 809715

SCREW

Note: (Float Bowl to Carburetor Body)

$3.49

$

Usually ships in 2-12 days

0

1444

Briggs & Stratton 845039

KIT, Choke Shaft Seal

$42.99

$

In Stock, only 1 left!

0
