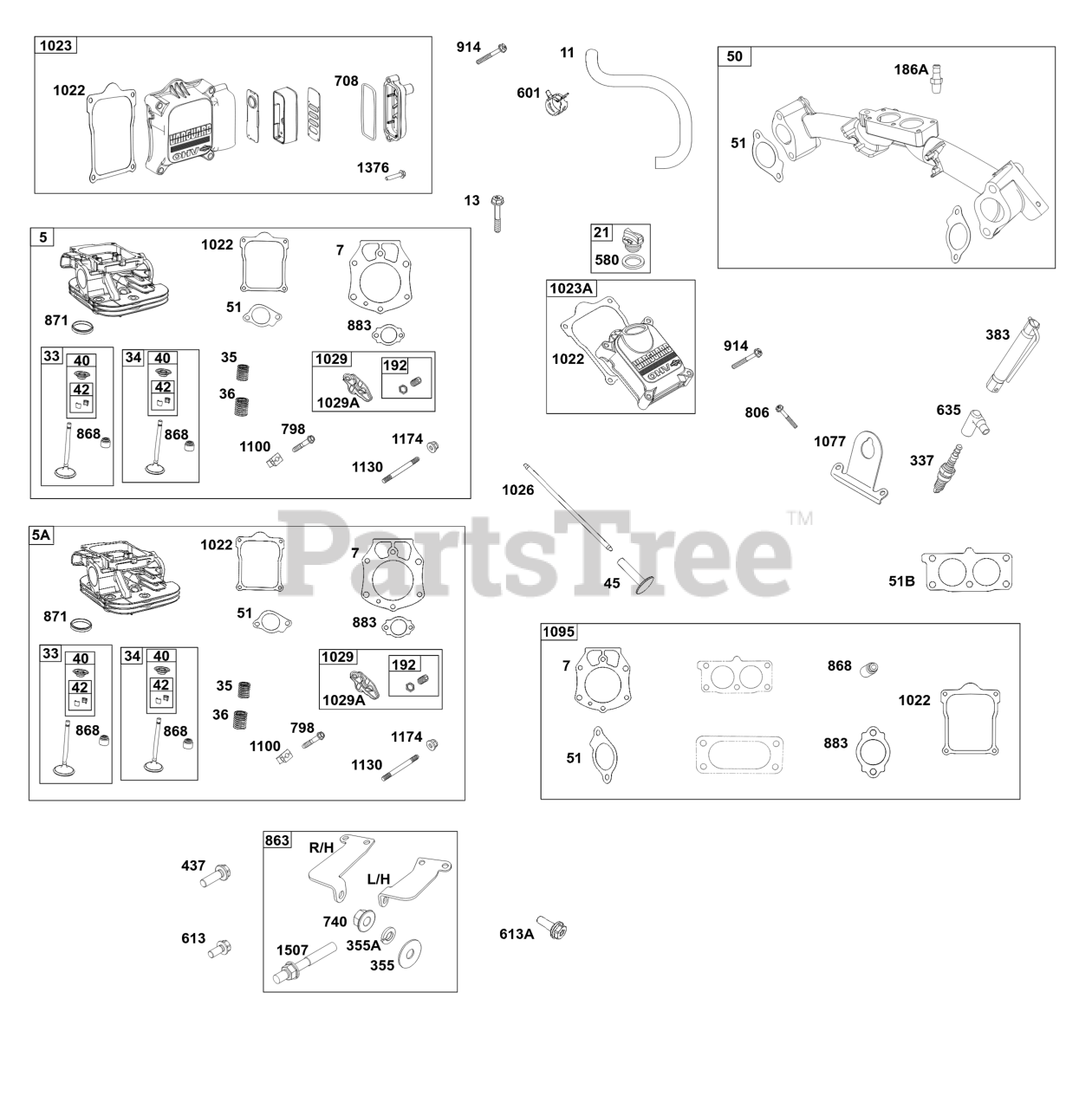

613477-4237-J1 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

Cylinder Head Group Parts Diagram

  • Title

5

Briggs & Stratton 848344

HEAD, Cylinder
(Superseded to 84006467)

$345.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 848345

HEAD, Cylinder
(Superseded to 84006468)

$345.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 809730

GASKET, Cylinder Head

$37.99

$

In Stock, Qty 16

0

11

Briggs & Stratton 809736

TUBE, Breather

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 809784

SCREW

Note: (Cylinder Head)

$3.99

$

In Stock, Qty 20+

0

21

Briggs & Stratton 843464

CAP, Oil Fill

$10.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 844787

VALVE, Exhaust

$47.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 843730

VALVE, Intake

$28.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 845589

SPRING, Valve

Note: (Intake) (Pink)

$7.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 845589

SPRING, Valve

Note: (Exhaust) (Pink)

$7.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 844788

RETAINER, Valve

$6.99

$

In Stock, Qty 12

0

42

Briggs & Stratton 807683

KEEPER, Valve

$6.99

$

In Stock, Qty 8

0

45

Briggs & Stratton 809785

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 844340

MANIFOLD, Intake

$235.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 847671

GASKET, Intake

$4.49

$

In Stock, only 3 left!

0

51B

Briggs & Stratton 841882

GASKET, Intake

$3.99

$

In Stock, Qty 20+

0

186A

Briggs & Stratton 844568

CONNECTOR, Hose

$8.49

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 690083

ADJUSTER. Rocker Arm

$11.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 792015

PLUG, Spark

$6.99

$

In Stock, Qty 20+

0

355

Briggs & Stratton 844035

WASHER

Note: (Muffler Bracket)

$4.99

$

Usually ships in 2-12 days

0

355A

Briggs & Stratton 691075

WASHER

Note: (Muffler Bracket)

$3.49

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

437

Briggs & Stratton 846149

SCREW

Note: (Exhaust Manifold)

$4.49

$

In Stock, only 3 left!

0

580

Briggs & Stratton 809894

SEAL, O-Ring

Note: (Oil Fill Cap)

$9.49

$

In Stock, only 1 left!

0

601

CLAMP, Hose

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

613

Briggs & Stratton 692062

SCREW

$3.49

$

In Stock, Qty 14

0

613A

Briggs & Stratton 692062

SCREW

$3.49

$

In Stock, Qty 14

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

708

Briggs & Stratton 841301

SEAL, O-Ring

Note: (Breather Reed)

$11.99

$

Usually ships in 2-12 days

0

740

Briggs & Stratton 690941

NUT

Note: (Muffler Bracket)

$4.99

$

In Stock, Qty 6

0

798

Briggs & Stratton 691492

SCREW

Note: (Rocker Arm)

$3.99

$

In Stock, only 2 left!

0

806

Briggs & Stratton 807357

SCREW

Note: (Lifting Bracket)

$3.99

$

Usually ships in 2-12 days

0

863

Briggs & Stratton 84002127

BRACKET, Muffler

$102.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

871

Briggs & Stratton 692057

BUSHING, Valve Guide
(Superseded to 84002672)

$12.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 809872

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

914

Briggs & Stratton 807357

SCREW

Note: (Rocker Cover)

$3.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 809732

GASKET, Rocker Cover

$17.99

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 809789

COVER, Rocker

$98.99

$

Usually ships in 2-12 days

0

1023A

Briggs & Stratton 809731

COVER, Rocker

$56.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 809783

ROD, Push

$17.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

ARM, Rocker

$12.99

$

In Stock, Qty 11

0

1029A

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1077

Briggs & Stratton 809729

BRACKET, Lifting

$18.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 843713

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$90.99

$

In Stock, only 1 left!

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 2 left!

0

1130

Briggs & Stratton 841590

STUD

Note: (Intake Manifold)

$10.99

$

In Stock, only 1 left!

0

1174

Briggs & Stratton 842067

NUT

Note: (Intake Manifold)

$3.99

$

Usually ships in 2-12 days

0

1376

Briggs & Stratton 806421

SCREW

Note: (Breather Reed Cover)

$

$

Not available

1507

Briggs & Stratton 846324

STUD

Note: (Muffler Bracket)

$13.99

$

Usually ships in 2-12 days

0
