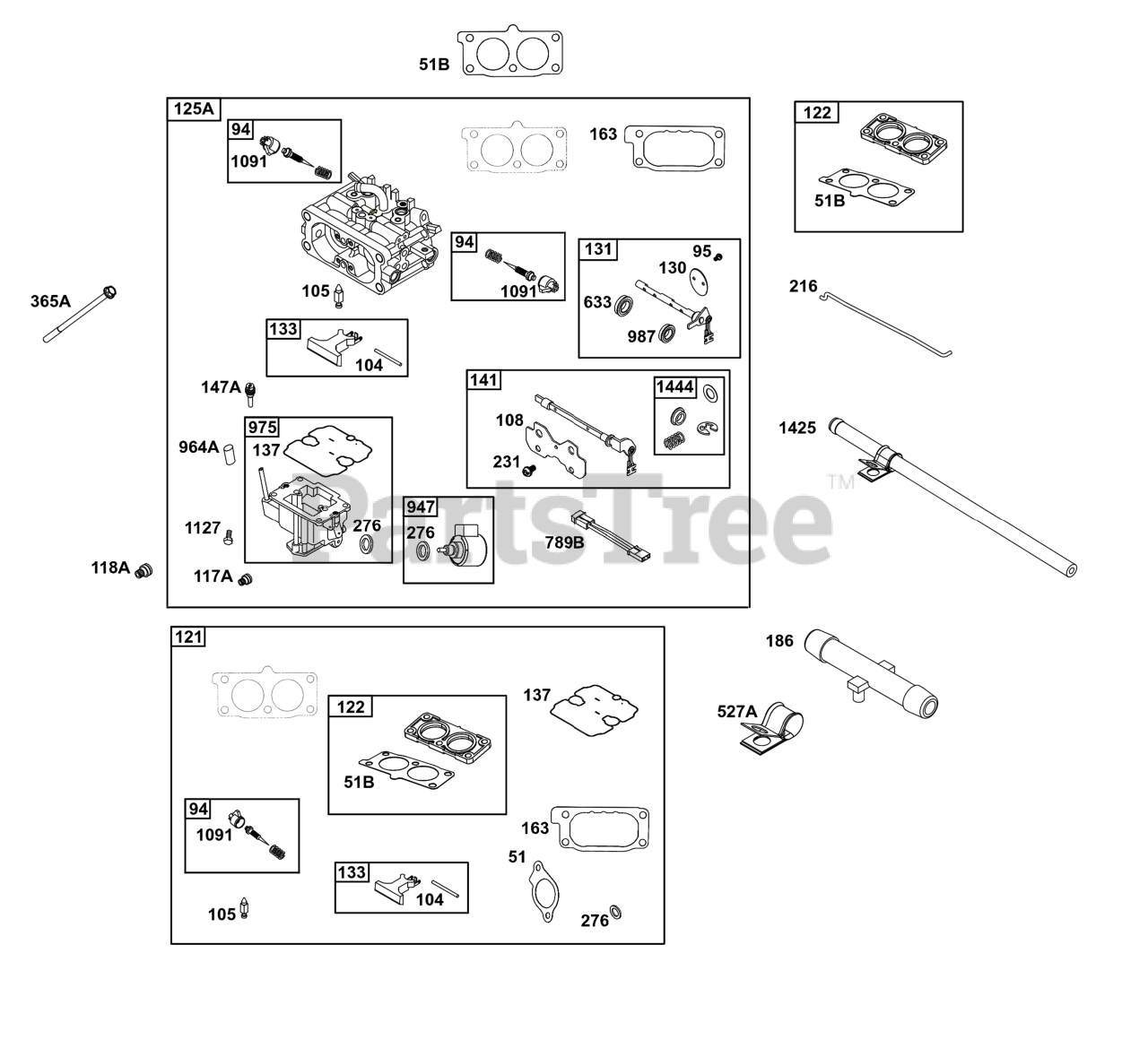

613477-0267-J1 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

$

$

Not available

51B

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

94

Briggs & Stratton 843295

KIT, Idle Mixture

$43.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690739

PIN, Float Hinge

$6.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 809759

VALVE, Float Needle

$

$

Not available

108

Briggs & Stratton 844652

VALVE, Choke

$15.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 843365

JET, Main

Note: (Standard) (Left Jet)

$30.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 842098

JET, Main

Note: (Standard) (Right Jet)

$20.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 843376

JET, Main

Note: (Hi Altitude, 5000ft) (Left Jet)

$35.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 843587

JET, Main

Note: (Hi Altitude, 5000ft) (Right Jet)

$41.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 843297

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$

$

Not available

122

Briggs & Stratton 846245

SPACER, Carburetor

$13.99

$

In Stock, only 4 left!

0

125A

Briggs & Stratton 845329

CARBURETOR

$411.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 841913

VALVE, Throttle

$16.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 845038

KIT, Throttle Shaft

$103.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 809637

FLOAT, Carburetor

$

$

Not available

137

Briggs & Stratton 809645

GASKET, Float Bowl

$9.99

$

In Stock, Qty 13

0

141

Briggs & Stratton 845036

KIT, Choke Shaft

$91.99

$

In Stock, only 1 left!

0

147A

Briggs & Stratton 842740

JET, Pilot

$28.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 20+

0

186

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 845297

LINK, Choke

$10.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 806476

WASHER, Sealing

$6.99

$

In Stock, only 2 left!

0

365A

Briggs & Stratton 841853

SCREW

Note: (Carburetor/Throttle Body)

$6.49

$

Usually ships in 2-12 days

0

527A

Briggs & Stratton 807116

CLAMP, Cable

$4.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 809641

SEAL, Choke/Throttle Shaft

$6.99

$

In Stock, only 1 left!

0

789B

Briggs & Stratton 843364

HARNESS, Wiring

$56.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 842109

SOLENOID, Fuel

$

$

Not available

964A

Briggs & Stratton 809640

CAP, Carburetor

$10.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 842106

BOWL, Float

$114.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 809639

SEAL, Choke/Throttle Shaft

$7.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691515

CAP-LIMITER

$8.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 809715

SCREW

Note: (Float Bowl to Carburetor Body)

$3.49

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 844712

HOSE, Purge Line

$29.99

$

Usually ships in 2-12 days

0

1444

Briggs & Stratton 845039

KIT, Choke Shaft Seal

$42.99

$

In Stock, only 1 left!

0
