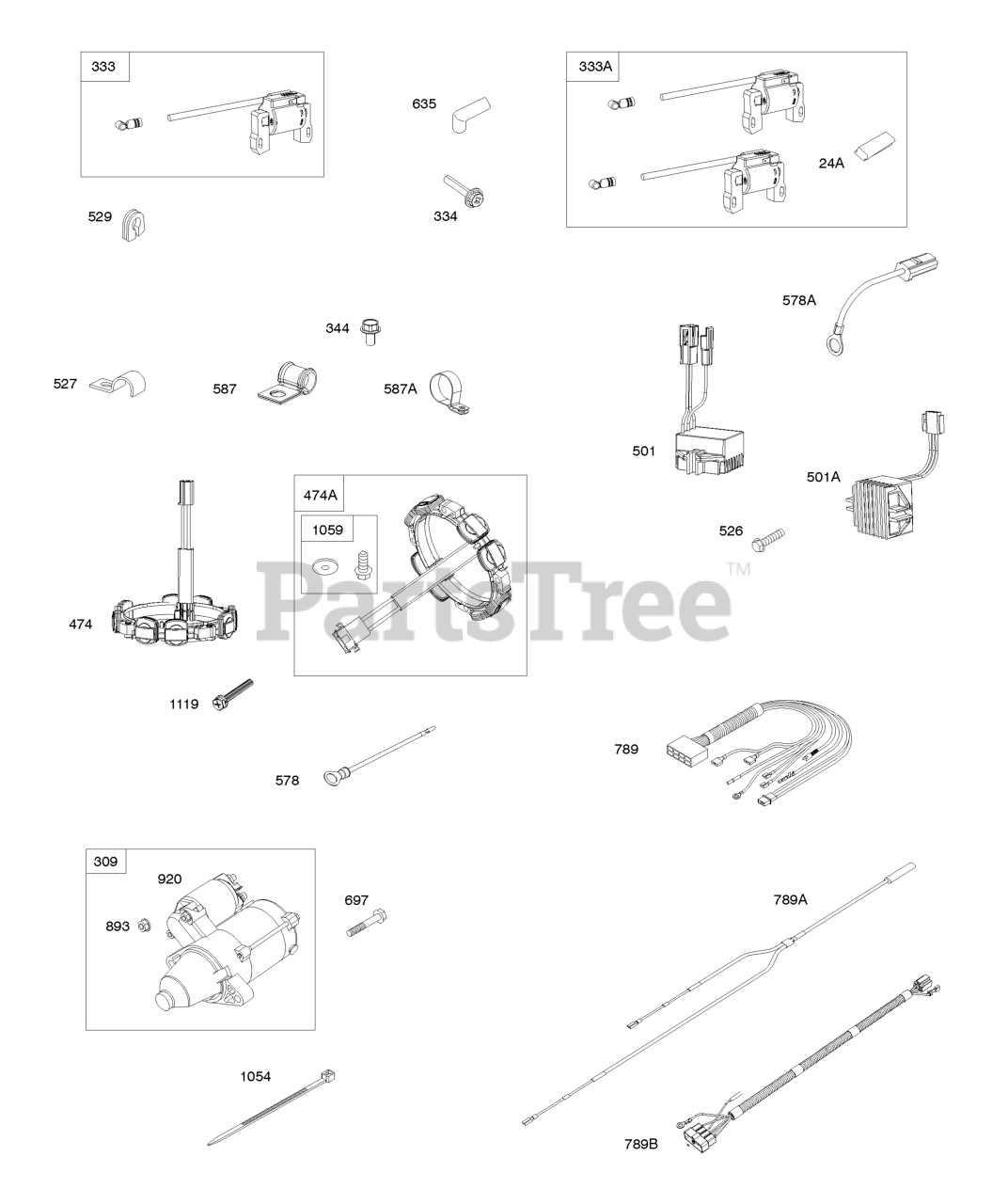

613277-0114-E1 - Briggs & Stratton Horizontal Engine Armatures, Alternators, Regulators, Electric Starter Parts Diagram

Horizontal Engine

Armatures, Alternators, Regulators, Electric Starter Parts Diagram

  • Title

24A

Briggs & Stratton 843837

Key-Flywheel

Note: (Offset Key) (Aluminum)

$7.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 845760

Motor-Starter
(Superseded to 84008634)

$238.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845126

Armature-Magneto

Note: Used After Code Date 10012800

$63.99

$

In Stock, only 1 left!

0

333A

Briggs & Stratton 843860

Armature-Magneto

Note: (Includes Offset Flywheel Key) Used Before Code Date 10012900

$118.99

$

In Stock, only 3 left!

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature) (M4x23mm)

$3.49

$

In Stock, Qty 7

0

344

Briggs & Stratton 841233

SCREW

Note: (Cable Clamp) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

474A

Briggs & Stratton 696579

Alternator

Note: Used Before Code Date 15110200

$107.99

$

In Stock, Qty 6

0

501A

Briggs & Stratton 691573

Regulator
(Superseded to 84004837)

Note: Used Before Code Date 15110200

$99.99

$

In Stock, Qty 14

0

526

Briggs & Stratton 690717

Screw

Note: (Regulator) (M6x30mm)

$3.49

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 690744

Grommet

Note: (Magneto Armature Wires)

$7.49

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 846866

Clamp-Cable

$5.49

$

Usually ships in 2-12 days

0

587A

Briggs & Stratton 844414

Clamp-Cable

$12.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 690711

Screw

Note: (Starter Motor) (Drive Cap) (M8x38mm)

$6.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 847062

Harness-Wiring

$67.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 809967

Harness-Wiring

$61.99

$

In Stock, only 4 left!

0

893

Briggs & Stratton 845758

Nut

Note: (Starter Solenoid)

$2.99

$

In Stock, only 1 left!

0

920

Briggs & Stratton 846737

Solenoid-Starter
(Superseded to 847694)

$61.99

$

In Stock, only 3 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

Note: (Alternator)

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator) (M4x30mm)

$3.99

$

Usually ships in 2-12 days

0
