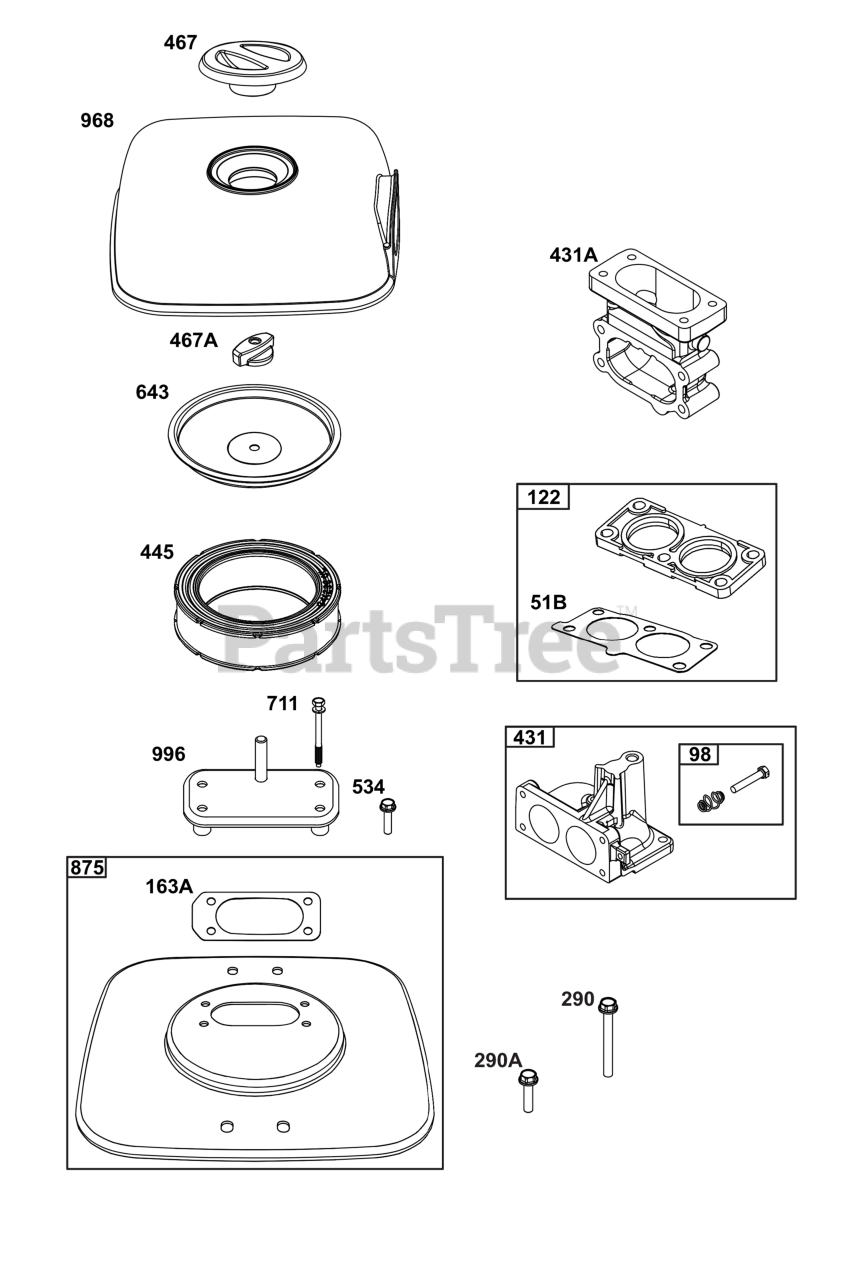

613277-0011-E1 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

51B

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

98

Briggs & Stratton 841842

KIT, Idle Speed

$12.99

$

Usually ships in 2-12 days

0

122

SPACER, Carburetor

Note: (Part information located in Carburetor Group.)

$

$

Not available

163A

Briggs & Stratton 843117

GASKET, Air Cleaner

$5.99

$

In Stock, only 1 left!

0

290

Briggs & Stratton 809911

SCREW

Note: (Intake Elbow)

$3.99

$

Usually ships in 2-12 days

0

290A

Briggs & Stratton 807421

SCREW

Note: (Intake Elbow)

$3.49

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 841539

ELBOW, Intake

$88.99

$

Usually ships in 2-12 days

0

431A

Briggs & Stratton 843116

ELBOW, Intake

$88.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 841856

FILTER, A/C Cartridge

$27.99

$

In Stock, only 4 left!

0

467

Briggs & Stratton 846008

KNOB, Air Cleaner Cover

$16.99

$

Usually ships in 2-12 days

0

467A

Briggs & Stratton 846007

KNOB, Air Cleaner Cover
(Superseded to 846432)

$8.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 692062

SCREW

Note: (Air Cleaner)

$3.49

$

In Stock, Qty 20+

0

643

Briggs & Stratton 844932

RETAINER, Air Cleaner

$22.99

$

In Stock, Qty 7

0

711

Briggs & Stratton 807385

SCREW

Note: (Carburetor Shield)

$3.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 843118

BASE, Air Cleaner

$72.99

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 843447

COVER, Air Cleaner
(Superseded to 846323)

$64.99

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 846006

SHIELD, Carburetor

$36.99

$

Usually ships in 2-12 days

0
