613 SPECIAL (71691430) - Allis-Chalmers Lawn Tractor, 13hp Peerless Model 801-019B Parts Diagram

Lawn Tractor, 13hp

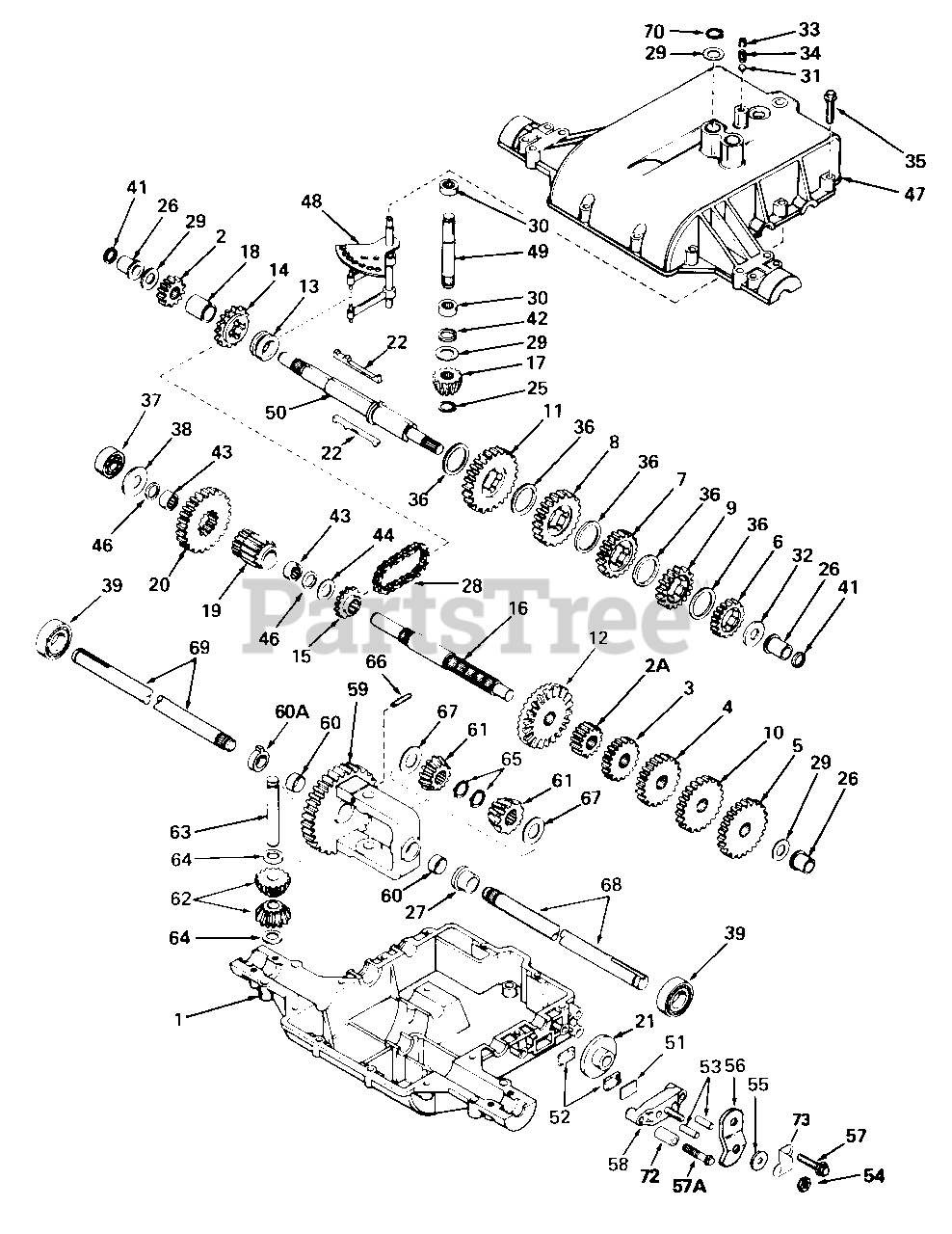

Peerless Model 801-019B Parts Diagram

  • Title

1

Simplicity 770071A

CASE, Transaxle

$

$

Not available

2

Simplicity 778136

GEAR, Spur (15 teeth)

$

$

Not available

2A

Simplicity 778145

GEAR, Spur (12 teeth)

$

$

Not available

3

Simplicity 778126A

GEAR, Spur (20 teeth)

$

$

Not available

4

Simplicity 778127A

GEAR, Spur (25 teeth)

$

$

Not available

5

Simplicity 778129A

GEAR, Spur (30 teeth)

$

$

Not available

6

Simplicity 778121A

GEAR, Spur (20 teeth)

$

$

Not available

7

Simplicity 778123A

GEAR, Spur (25 teeth)

$

$

Not available

8

Simplicity 778124A

GEAR, Spur (30 teeth)

$

$

Not available

9

Simplicity 778122A

GEAR, Spur (22 teeth)

$

$

Not available

10

Simplicity 778128A

GEAR, Spur (28 teeth)

$

$

Not available

11

Simplicity 778146A

GEAR, Spur (37teeth)

$

$

Not available

12

Simplicity 778137A

GEAR, Bevel (42 teeth)

$

$

Not available

13

Simplicity 784266

COLLAR, Shift

$

$

Not available

14

Simplicity 786060

SPROCKET (14 teeth)

$

$

Not available

15

Simplicity 786061

SPROCKET (10 teeth)

$

$

Not available

16

Simplicity 776204

SHAFT, Counter

$

$

Not available

17

Simplicity 778113A

BEVEL PINION, Input

$

$

Not available

18

Simplicity 786074

SPACER

$

$

Not available

19

Simplicity 778138

PINION, Output

$

$

Not available

20

Simplicity 778139

GEAR, Output

$

$

Not available

21

Simplicity 790003

DISK, Brake

$

$

Not available

22

Simplicity 792089A

KEY

$

$

Not available

25

Simplicity 788040

RING, Retaining

$

$

Not available

26

Simplicity 780105A

BUSHING, Flanged

$

$

Not available

27

Simplicity 780118A

BUSHING, Flanged

$

$

Not available

28

Simplicity 786062A

CHAIN, Roller (No. 41 chain, 22 links)

$

$

Not available

29

Simplicity 780072

WASHER, Thrust

$

$

Not available

30

Simplicity 780122

BEARING, Needle

$

$

Not available

31

Simplicity 790277

BALL, Steel

$142.99

$

Usually ships in 2-12 days

0

32

Simplicity 780109

WASHER, Thrust

$

$

Not available

33

Simplicity 792078

SCREW, Set, 3/8-16 x 3/8

$

$

Not available

34

Simplicity 792079

SPRING

$

$

Not available

35

Simplicity 792073

SCREW, Hex Hd., Thd. Form., 1/4-20 x 1-1/4

$61.99

$

In Stock, Qty 5

0

36

Simplicity 780108

WASHER, Thrust

$4.49

$

Usually ships in 2-12 days

0

37

Simplicity 780121

BEARING, Ball

$

$

Not available

38

Simplicity 780113

WASHER, Flat

$

$

Not available

39

Simplicity 780119

BEARING, Ball

$

$

Not available

41

Simplicity 788051

SEAL, Square Cut

$

$

Not available

42

Simplicity 788057

SEAL, Square Cut

$

$

Not available

43

Simplicity 780112

BEARING, Needle

$

$

Not available

44

Simplicity 780114

WASHER, Flat

$

$

Not available

46

Simplicity 788053

SEAL, Square Cut

$

$

Not available

47

Simplicity 772082

COVER, Transaxle

$5.99

$

Usually ships in 2-12 days

0

48

Simplicity 784290

ROD & FORK ASSY., Shift

$62.99

$

Usually ships in 2-12 days

0

49

Simplicity 776135

SHAFT, Input

$

$

Not available

50

Simplicity 776184A

SHAFT, Brake

$

$

Not available

51

Simplicity 790007

PLATE, Brake Pad

$

$

Not available

52

Simplicity 790006

PAD, Brake

$

$

Not available

53

Simplicity 786026

PIN, Dowel

$

$

Not available

54

Simplicity 792075

LOCKNUT, 5/16-24

$

$

Not available

55

Simplicity 792076

WASHER, Flat

$

$

Not available

56

Simplicity 790019

LEVER, Brake
(Superseded to 593432)

$137.99

$

In Stock, Qty 20+

0

57

Simplicity 792073

SCREW, Hex Hd., Thd., Form., 1/4-20 x 1-1/4

$61.99

$

In Stock, Qty 5

0

57A

Simplicity 792085

SCREW, Hex Hd., Thd., Form., 1/4-20 x 2-1/4

$

$

Not available

58

Simplicity 790025

HOLDER, Brake Pad

$24.99

$

Usually ships in 2-12 days

0

59

Simplicity 778053A

GEAR ASSY., Differential (Incl. 2 of No. 60)

$

$

Not available

60

Simplicity 780064

BUSHING

$

$

Not available

60A

Simplicity 780120

BUSHING

$

$

Not available

61

Simplicity 778166

GEAR, Bevel

$

$

Not available

62

Simplicity 778131

PINION, Bevel

$

$

Not available

63

Simplicity 786034

PIN, Drive

$

$

Not available

64

Simplicity 780065

WASHER, Thrust

$

$

Not available

65

Simplicity 792125

RING, Retaining (Pkg. of 2)

$

$

Not available

66

Simplicity 792040

PIN, Roll
(Superseded to 795259)

$32.99

$

In Stock, Qty 9

0

67

Simplicity 780001

WASHER, Thrust

$

$

Not available

68

Simplicity 774645

AXLE (15-1/2" long)

$

$

Not available

69

Simplicity 774644

AXLE (12-1/2" long)

$

$

Not available

70

Simplicity 792035

RING, Retaining

$

$

Not available

72

Simplicity 786066

SPACER

$

$

Not available

73

Simplicity 786086

BRACKET

$

$

Not available
