613 SPECIAL (71691430) - Allis-Chalmers Lawn Tractor, 13hp Front Axle Group Parts Diagram

Lawn Tractor, 13hp

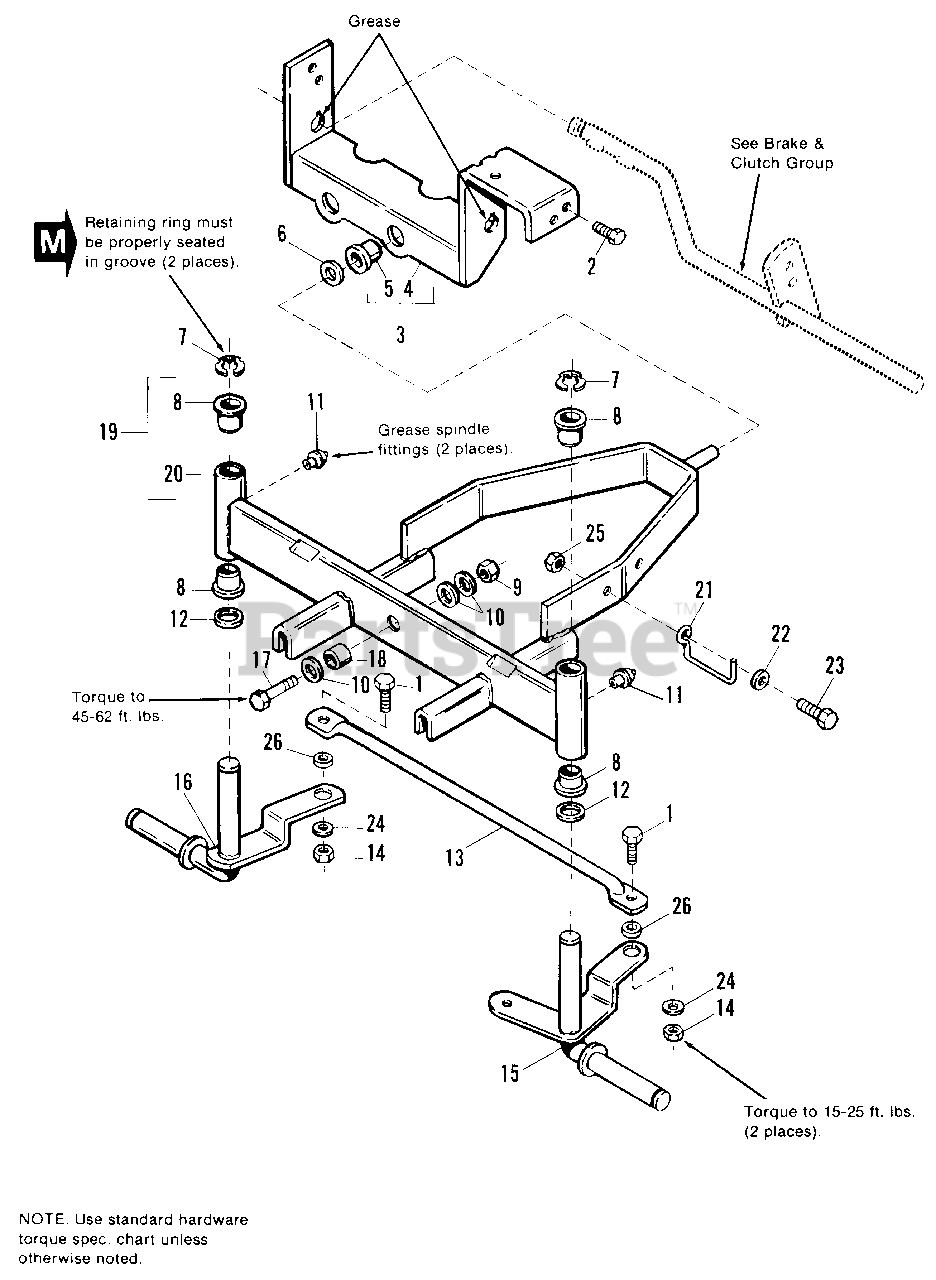

Front Axle Group Parts Diagram

  • Title
1

Simplicity 1921210SM

CAPSCREW, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

2

Simplicity 1664847SM

SCREW, Hex, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1665601

SUPPORT ASSY., Axle, Rear w/Bushing

$

$

Not available

4

SUPPORT ASSY., Axle, Rear (See Ref. No. 3)

$

$

Not available

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 1960020SM

WASHER, 3/8

$4.49

$

In Stock, Qty 20+

0

7

$4.49

$

In Stock, Qty 20+

0

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 1930648SM

LOCKNUT, Hex, 1/2-13

$2.49

$

Usually ships in 2-12 days

0

10

Simplicity 1926192SM

WASHER, 9/16

$19.99

$

Usually ships in 2-12 days

0

11

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 1677133ASM

SPINDLE ASSY., L.H.

$131.99

$

Usually ships in 2-12 days

0

16

Simplicity 1677131ASM

SPINDLE ASSY., R.H.

$41.99

$

Usually ships in 2-12 days

0

17

Simplicity 1921525SM

CAPSCREW, Hex Hd., 1/2-13 x 3/4

$7.49

$

Usually ships in 2-12 days

0

18

Simplicity 1671260SM

SPACER
(Superseded to 703450)

$8.49

$

Usually ships in 2-12 days

0

19

Simplicity 1611709

AXLE ASSY., Front (Incl. Ref. Nos. 8 & 20)

$

$

Not available

20

AXLE SUB ASSY., (See Ref. No. 19)

$

$

Not available

21

Simplicity 1668147SM

GUIDE, Drag Link

$

$

Not available

22

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

23

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

24

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 20+

0
