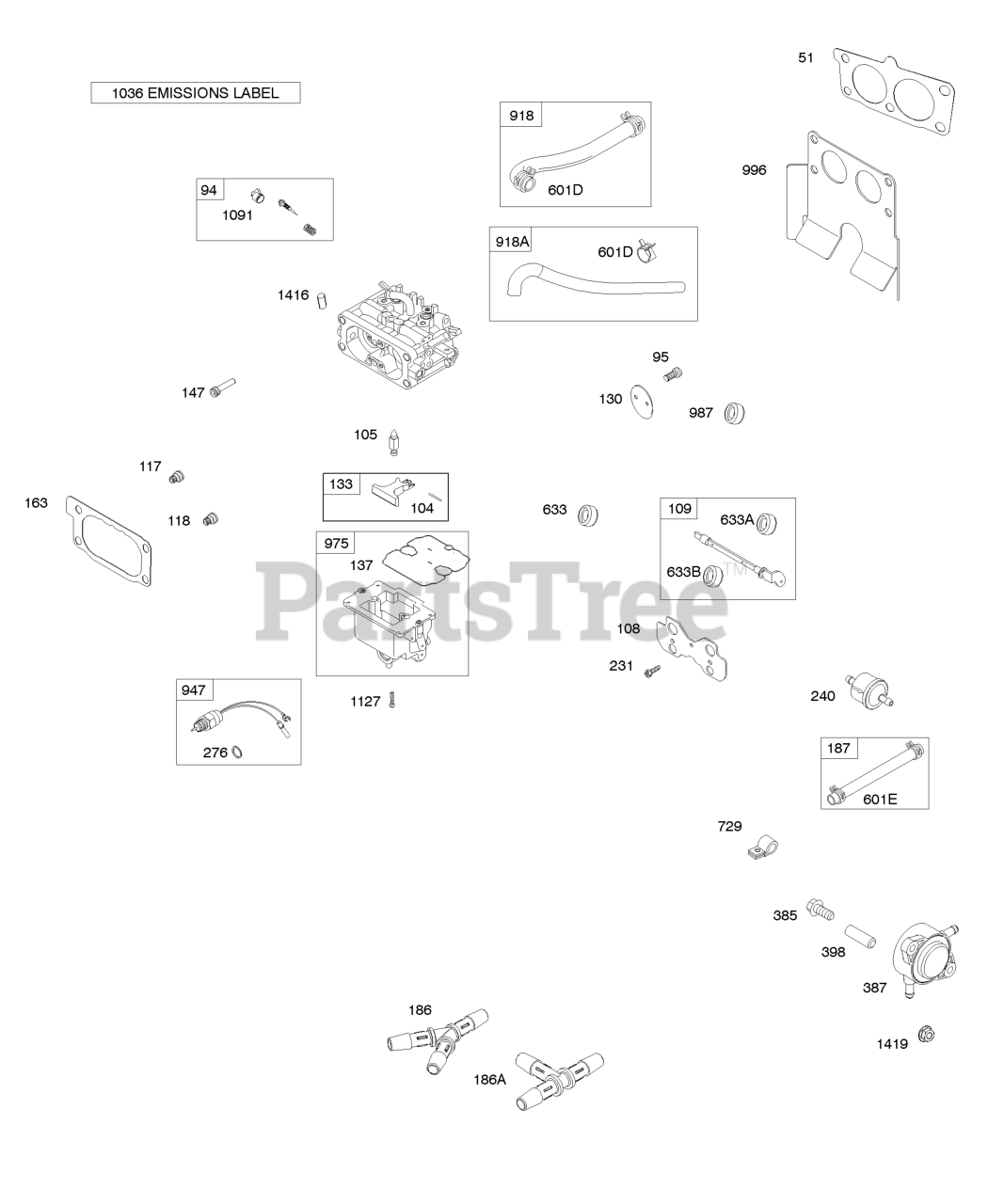

612177-0100-E1 - Briggs & Stratton Horizontal Engine Carburetor, Fuel Supply Parts Diagram

Horizontal Engine

Carburetor, Fuel Supply Parts Diagram

  • Title

51

Briggs & Stratton 841885

Gasket-Intake

$74.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 843295

Kit-Idle Mixture

$43.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690739

Pin-Float Hinge

$6.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 809759

Valve-Float Needle

$

$

Not available

108

Briggs & Stratton 841915

Valve-Choke
(Superseded to 844652)

$15.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 841914

Shaft-Choke

$41.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 842096

Jet-Main

Note: (Standard) (Left Jet)

$17.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 842738

Jet-Main

Note: (Standard) (Right Jet)

$27.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 842098

Jet-Main

Note: (High Altitude) (Right Jet)

$20.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 842103

Jet-Main

Note: (High Altitude) (Left Jet)

$19.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 841913

Valve-Throttle

$16.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 809637

Float-Carburetor

$36.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 809645

Gasket-Float Bowl

$9.99

$

In Stock, Qty 14

0

147

Briggs & Stratton 841920

Jet-Pilot

$24.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 20+

0

186

Briggs & Stratton 841895

Connector-Hose

Note: ("Y" Shaped)

$8.49

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 841894

Connector-Hose

Note: (Fuel Pump)

$5.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 806476

Washer-Sealing

$6.99

$

In Stock, only 2 left!

0

385

Briggs & Stratton 809911

Screw

Note: (Fuel Pump)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 807429

Pump-Fuel
(Superseded to 808656)

$27.99

$

In Stock, Qty 20+

0

398

Briggs & Stratton 841888

Spacer-Fuel Pump

$7.99

$

Usually ships in 2-12 days

0

601D

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 17

0

601E

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 809641

Seal-Choke/Thr Shaft

Note: (Throttle Shaft)

$6.99

$

In Stock, only 1 left!

0

633A

Briggs & Stratton 809638

Seal-Choke/Thr Shaft

Note: (Choke Shaft)

$7.49

$

In Stock, only 1 left!

0

633B

Briggs & Stratton 809644

Seal-Choke/Thr Shaft

Note: (Choke Shaft)

$8.49

$

In Stock, only 1 left!

0

729

Briggs & Stratton 842245

Clip-Wire

$5.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 809323

Hose-Vacuum

Note: (Formed) (Valve Cover to Fuel Pump)

$8.99

$

Usually ships in 2-12 days

0

918A

Briggs & Stratton 791801

Hose-Vacuum
(Superseded to 791744)

Note: (Formed) (Valve Cover to Fuel Pump)

$14.99

$

In Stock, only 2 left!

0

947

Briggs & Stratton 809632

Solenoid-Fuel

$166.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 842106

Bowl-Float

$114.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 809639

Seal-Throttle Shaft

$7.49

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 841883

Shield-Carburetor

$34.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1091

Briggs & Stratton 691515

Cap-Limiter

$8.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 809715

Screw

Note: (Float Bowl to Carburetor Body)

$3.49

$

Usually ships in 2-12 days

0

1416

Briggs & Stratton 809640

Cap-Carburetor

$10.99

$

Usually ships in 2-12 days

0

1419

Briggs & Stratton 690939

NUT

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 8

0
