612000x30A - Murray 12" Snow Thrower (2000) Illustrated Parts List Parts Diagram

12" Snow Thrower

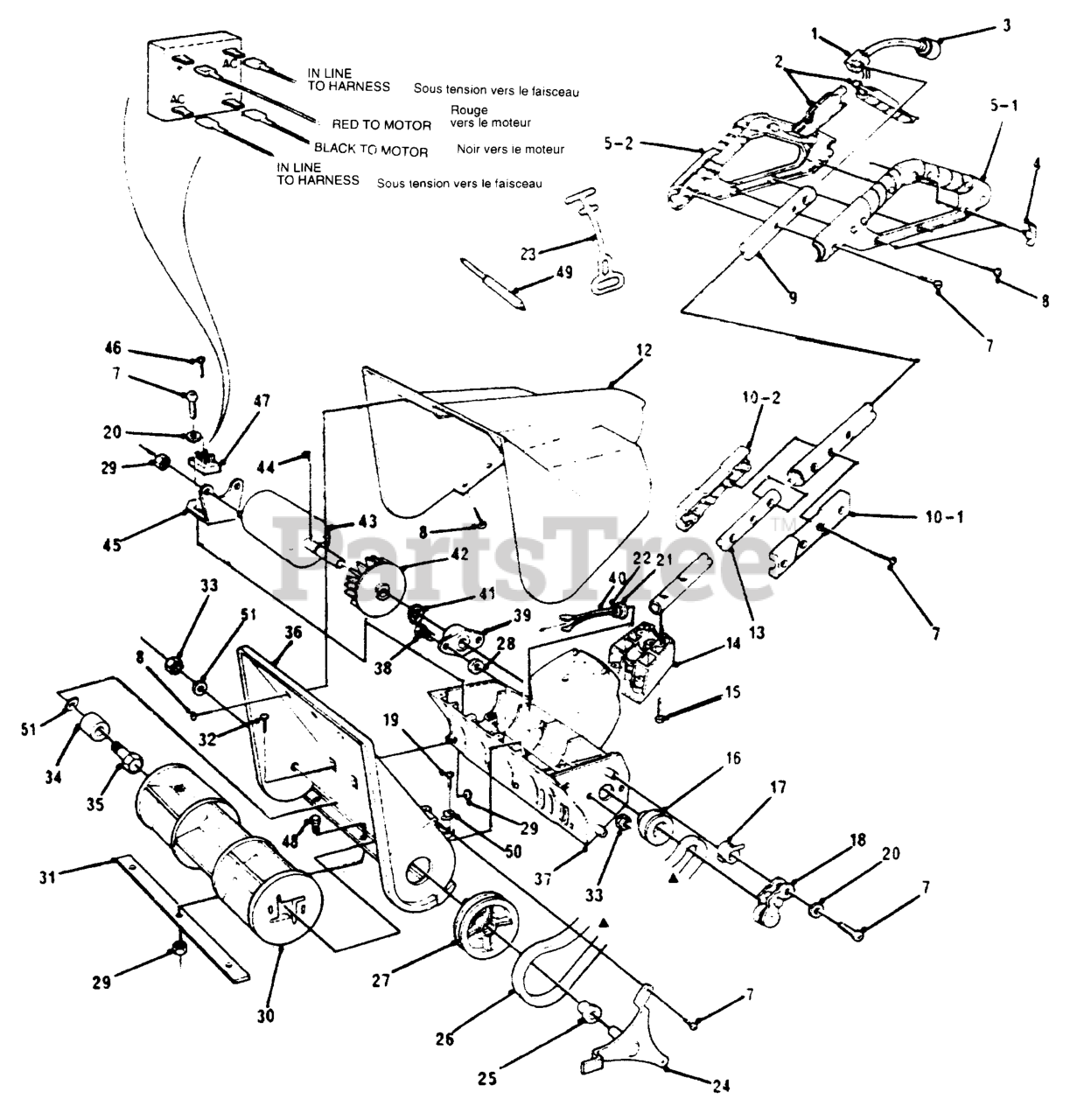

Illustrated Parts List Parts Diagram

  • Title

1

Murray 780083MA

SWITCH, TRIGGER

$8.49

$

Usually ships in 2-12 days

0

2

Murray 578558MA

TRIGGER, LEVER 12"

$

$

Not available

3

Murray 578568

LEAD, CONNECTING

$12.99

$

Usually ships in 2-12 days

0

4

Murray 780625MA

KEY-DOUBLE NOTCH

$3.99

$

Usually ships in 2-12 days

0

5

Murray 578954

SET, GRIP TRIGGER L&R 12"

$

$

Currently unavailable

5-1

ORDER SET

$

$

Not available

5-2

ORDER SET

$

$

Not available

7

Murray 1694MA

SCREW, #8 X 3/4 POLY

$3.49

$

Usually ships in 2-12 days

0

8

Murray 901696

SCREW, #8 X.50 POLY

$

$

Not available

9

Murray 578847-853

TUBE - HANDLE, UPPER

$

$

Currently unavailable

10

Murray 578472MA

SET, GRIP CENTER 12"

$19.99

$

Usually ships in 2-12 days

0

10-1

ORDER SET

$

$

Not available

10-2

ORDER SET

$

$

Not available

12

Murray 577394

HOUSING, UPPER 12"

$

$

Not available

13

Murray 577444-853

HANDLE, LOWER

$

$

Currently unavailable

14

Murray 577450

HOUSING, REAR 12"

$

$

Not available

15

Murray 780115MA

SCREW, 10-9 X 1.062

$3.49

$

Usually ships in 2-12 days

0

16

Murray 580255

PULLEY, ENGINE

$

$

Not available

17

Murray 577502

SPRING, TORSION

$

$

Not available

18

Murray 578732

PULLEY, IDLER & BRKT. ASSY

$

$

Currently unavailable

19

Murray 578928

SCREW, #8 X1.00

$

$

Currently unavailable

20

Murray 901736

WASHER, FLAT #8 SAE

$3.99

$

Usually ships in 2-12 days

0

21

Murray 780026

CLAMP, HEYCO

$3.49

$

Usually ships in 2-12 days

0

22

Murray 73812

WASHER, FLAT .505X1.00X.06

$2.49

$

Usually ships in 2-12 days

0

23

Murray 10542MA

STRAIN RELIEF, CORD

$

$

Not available

24

Murray 579105

BRACKET, ASSY DRIVE PULLEY

$5.99

$

Usually ships in 2-12 days

0

25

Murray 904970MA

BEARING-BRONZE

$5.49

$

Usually ships in 2-12 days

0

26

Murray 577453MA

BELT, V 3L DRIVE

$20.99

$

Usually ships in 2-12 days

0

27

Murray 577396

PULLEY, DRIVEN E12"

$

$

Not available

28

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

29

Murray 071056MA

NUT, #10-32 HNYLLK

$10.99

$

Usually ships in 2-12 days

0

30

Murray 577395

IMPELLER, 12"

$

$

Not available

31

Murray 577447MA

BLADE, SCRAPER

$

$

Not available

32

Murray 577534

SCREW, 10-32X .50

$

$

Not available

33

Murray 782585

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

34

Murray 582947

SPACER, IMPELLER

$0.99

$

Usually ships in 2-12 days

0

35

Murray 56934MA

SCREW, 1/4-20X1.00

$3.99

$

Usually ships in 2-12 days

0

36

Murray 577393

HOUSING, IMPEL 12"

$

$

Not available

37

Murray 577392

HOUSING, LOWER 12"

$

$

Currently unavailable

38

Murray 180016MA

SCREW, 1/4-20X .50

$3.99

$

In Stock, only 2 left!

0

39

Murray 904975

BEARING, SELF ALIGN

$

$

Not available

40

Murray 905018MA

WIRE HARNESS, E12"

$7.49

$

Usually ships in 2-12 days

0

41

Murray 577598MA

RING, RET E

$4.49

$

In Stock, only 1 left!

0

42

Murray 760256MA

FAN,MOTOR,EXTENDED

$12.99

$

Usually ships in 2-12 days

0

43

Murray 586949

MOTOR,120V

$268.99

$

Usually ships in 2-12 days

0

44

Murray 12569MA

PIN, GROOVED

$3.49

$

Usually ships in 2-12 days

0

45

Murray 579106

BRACKET, MOTOR MOUNT

$2.49

$

Usually ships in 2-12 days

0

46

Murray 905135

SCREW, #6-32X .75

$

$

Currently unavailable

47

Murray 780062MA

RECTIFIER, FULL WAVE

$24.99

$

Usually ships in 2-12 days

0

48

Murray 578408

SCREW, 10-32X .50

$

$

Not available

49

Murray 1740

PROBE, PLASTIC

$

$

Not available

50

Murray 578957

PLUG, RETAINER

$

$

Currently unavailable

51

Murray 780234

WASHER, 3/4 X 1/4 X 1/16

$

$

Not available
