6118 (1690601) - Simplicity 42" Garden Tractor, 18hp 42" Housing Group Parts Diagram

42" Garden Tractor, 18hp

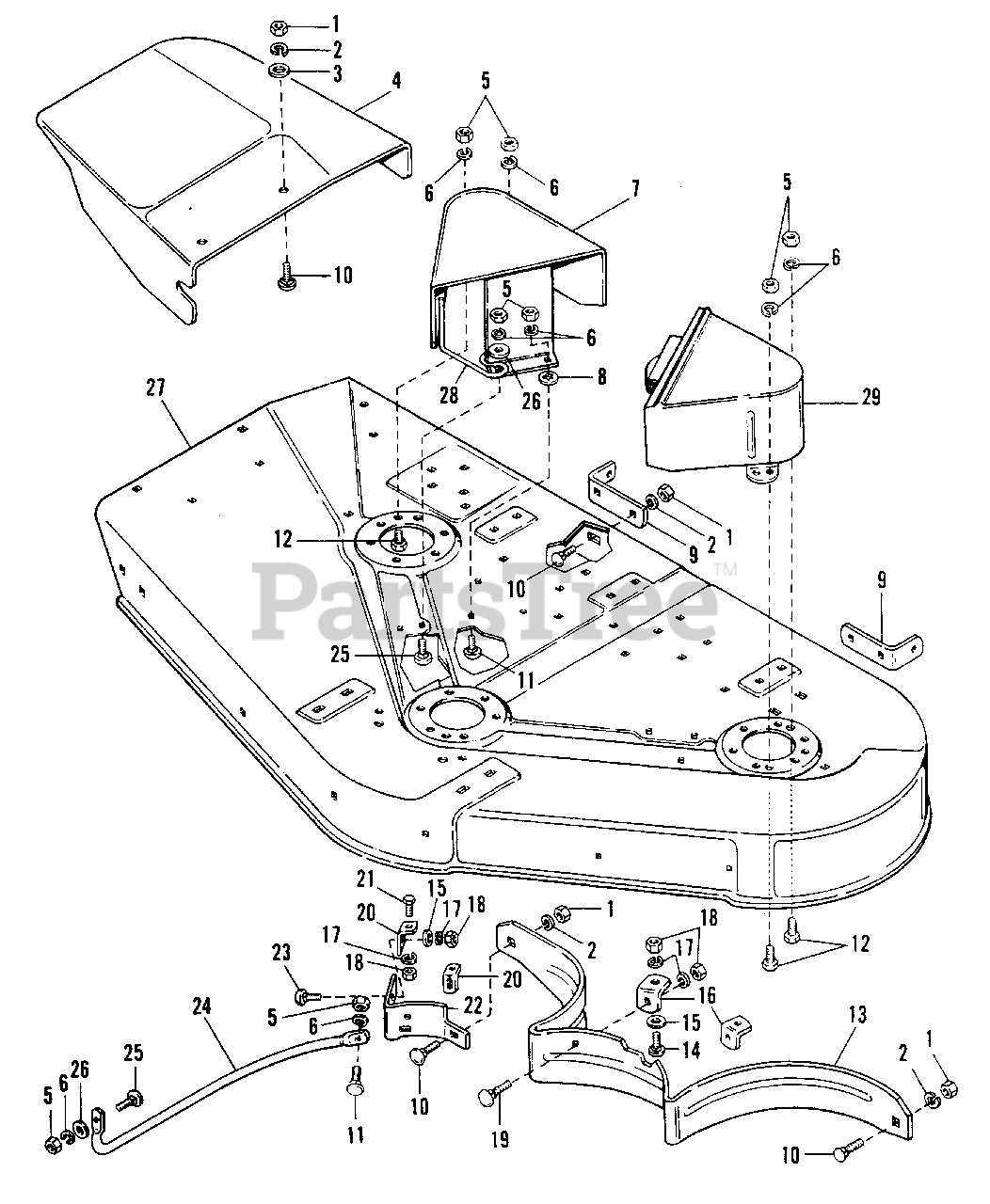

42" Housing Group Parts Diagram

  • Title
1

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

3

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

$

$

Not available

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1702214SM

ARBOR COVER ASSY.
(Superseded to 1702214ASM)

$98.99

$

Usually ships in 2-12 days

0

8

Simplicity 2833988

PUSHNUT, 5/16

$

$

Not available

9

Simplicity 1603264SM

BRACKET, Roller Support

$20.99

$

Usually ships in 2-12 days

0

10

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

11

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

12

Simplicity 2821333

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

13

Simplicity 1608135SM

BAFFLE
(Superseded to 1608135ASM)

$98.99

$

Usually ships in 2-12 days

0

14

Simplicity 2823341SM

CAPSCREW, Hex, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

15

Simplicity 2817377

WASHER, 1/4

$

$

Not available

16

Simplicity 1608331SM

CLIP, Baffle
(Superseded to 1608331ASM)

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

18

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 2823333

BOLT, Carriage, 1/4-20 x 5/8

$

$

Not available

20

Simplicity 2108186SM

CLIP GUARD & BAFFLE

$12.99

$

In Stock, only 1 left!

0

21

Simplicity 2824009

CAPSCREW, Hex, 1/4-20 x 3/4

$

$

Not available

22

Simplicity 1665709ASM

BAFFLE, Discharge

$51.99

$

Usually ships in 2-12 days

0

23

Simplicity 2831317

BOLT, Carriage, 1/4-20 x 3/4

$

$

Not available

24

Simplicity 1665562SM

GUARD, Mower Discharge
(Superseded to 1665562ASM)

$155.99

$

Usually ships in 2-12 days

0

25

Simplicity 2820563

BOLT, Carriage, 5/16-18 x 1

$

$

Not available

26

Simplicity 2819381

WASHER, 11/32 x 1

$

$

Not available

27

Simplicity 1685156SM

42" ROTARY MOWER HOUSING KIT

Note: Ref. No. 27 includes decals, see decal group for parts.

$

$

Not available

28

$8.49

$

Usually ships in 2-12 days

0

29

Simplicity 1702213SM

ARBOR COVER ASSY.
(Superseded to 1702213ASM)

$598.99

$

Usually ships in 2-12 days

0
