6118 (1690601) - Simplicity 42" Garden Tractor, 18hp 42" Height Adjusting & Roller Group Parts Diagram

42" Garden Tractor, 18hp

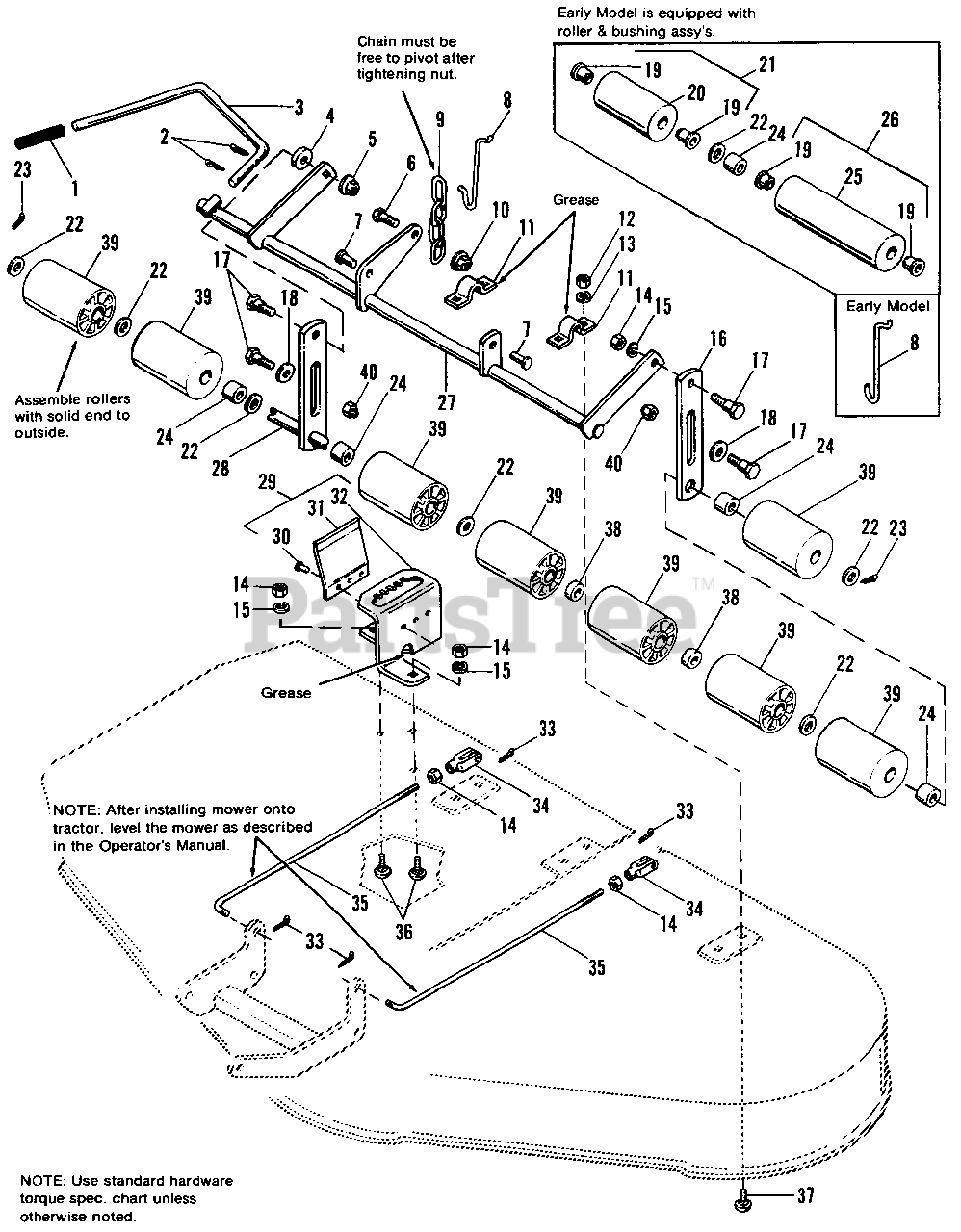

42" Height Adjusting & Roller Group Parts Diagram

  • Title

1

Simplicity 2176933SM

GRIP

$3.49

$

In Stock, only 1 left!

0

2

Simplicity 2818452

PIN. Cotter, 1/8 x 1

$

$

Not available

3

Simplicity 1656412SM

LEVER, Control

$

$

Not available

4

Simplicity 2822755

WASHER, Plain, 13/32
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

5

Simplicity 2828352

LOCKNUT, Hex, Flange, Whiz, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

6

Simplicity 2821333

CAPSCREW, Hex, 5/16-18 x 1

$

$

Not available

7

Simplicity 2823087

PIN, Clevis

$

$

Not available

8

Simplicity 1685243SM

***ROD, Lift (Later Models)

$35.99

$

Usually ships in 2-12 days

0

8

Simplicity 1685219SM

ROD, Lift (Early Models)

$110.99

$

Usually ships in 2-12 days

0

9

Simplicity 1656835A

CHAIN, Lift

$

$

Not available

10

Simplicity 2835048

LOCKNUT, Flange, 5/16-18

$

$

Not available

11

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

16

Simplicity 1603263SM

BAR, Roller
(Superseded to 1603263ASM)

$26.99

$

Usually ships in 2-12 days

0

17

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

18

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

19

Simplicity 2108419

*BUSHING

$

$

Not available

20

ROLLER, Small (Not serviced w/o bushings) (See Ref. No. 21)

$

$

Not available

21

Simplicity 1668513SM

ROLLER ASSY., Small (Includes Bushings)

$10.99

$

In Stock, Qty 20+

0

22

Simplicity 2819387

WASHER, 25/32 x 1-1/4 (Qty. 11 used on mowers with roller and bushing assy.'s as in Ref. Nos. 21 & 26)

$

$

Not available

23

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

24

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

25

ROLLER, Large (Not serviced w/o bushings)

$

$

Not available

26

Simplicity 1608398SM

*ROLLER ASSY., Large (Includes Bushings)

$

$

Not available

27

Simplicity 1685217

ARM ASSY., Mower

$

$

Not available

28

Simplicity 1668814SM

**SHAFT ASSY., Roller
(Superseded to 1668814ASM)

$113.99

$

Usually ships in 2-12 days

0

28

Simplicity 1668814SM

*SHAFT ASSY., Roller
(Superseded to 1668814ASM)

$113.99

$

Usually ships in 2-12 days

0

29

Simplicity 1668828SM

**QUADRANT ASSY.

$79.99

$

Usually ships in 2-12 days

0

30

Simplicity 2810542SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1663222SM

SPRING

$

$

Not available

32

Simplicity 1668828SM

**QUADRANT

$79.99

$

Usually ships in 2-12 days

0

33

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

34

Simplicity 2108157SM

CLEVIS, Adj.

$24.99

$

Usually ships in 2-12 days

0

35

Simplicity 1665417SM

ROD, Adj.

$23.99

$

Usually ships in 2-12 days

0

36

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

37

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

38

Simplicity 2172914SM

**SPACER

$12.99

$

In Stock, only 1 left!

0

39

Simplicity 1668513SM

**ROLLERS

$10.99

$

In Stock, Qty 20+

0

40

Simplicity 2819439

NUT, Esna Locknut. 3/8-16

$

$

Not available
