6116 (1690469) - Simplicity 42" Garden Tractor, 16hp 42" Clutch & Support Group Parts Diagram

42" Garden Tractor, 16hp

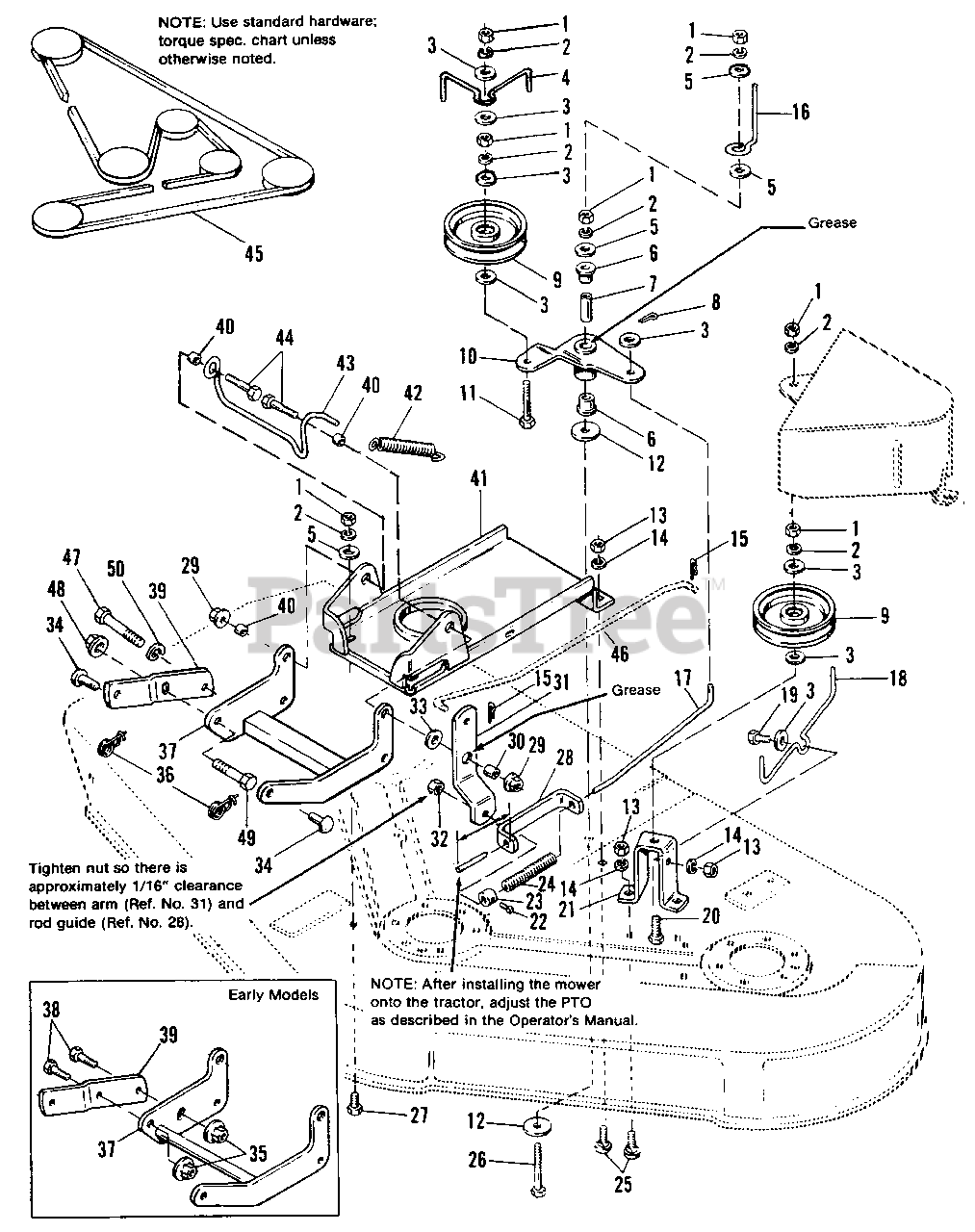

42" Clutch & Support Group Parts Diagram

  • Title

1

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

3

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

4

Simplicity 1665758

STOP, Belt

$

$

Not available

5

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1663114SM

BUSHING

$4.49

$

In Stock, only 3 left!

0

7

Simplicity 1657242SM

SPACER

$10.99

$

In Stock, Qty 10

0

8

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

9

Simplicity 2171247SM

PULLEY, Idler

$51.99

$

In Stock, Qty 20+

0

10

Simplicity 1703289SM

LEVER ASSY., Clutch

$

$

Not available

11

Simplicity 921766

CAPSCREW, Hex, 3/8-16 x 2-1/4

$

$

Not available

12

Simplicity 2824356

WASHER, Special

$

$

Not available

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 2167032SM

STOP, Belt

$31.99

$

Usually ships in 2-12 days

0

17

Simplicity 1668041SM

ROD, Clutch, Mower

$

$

Not available

18

Simplicity 1669259SM

STOP, Belt

$27.99

$

Usually ships in 2-12 days

0

19

Simplicity 2821333

CAPSCREW, Hex, 5/16-18 x 1

$

$

Not available

20

Simplicity 929116

CAPSCREW, Hex, 3/8-16 x 2

$

$

Not available

21

Simplicity 1665649

SUPPORT, Idler

$

$

Not available

22

Simplicity 2828804

SETSCREW, Sq. Hd., 1/4-20 x 3/8

$

$

Not available

23

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

24

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

25

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

26

Simplicity 2823938

CAPSCREW, 3/8-16 x 3-1/2

$

$

Not available

27

Simplicity 2821965

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

28

Simplicity 2108662SM

GUIDE ASSY., Rod

$

$

Not available

29

Simplicity 2830645

NUT, Hex, Flange, 3/8-16

$

$

Not available

30

Simplicity 1665699SM

SPACER

$7.49

$

Usually ships in 2-12 days

0

31

Simplicity 1665624SM

ARM, Pivot
(Superseded to 1665624ASM)

$

$

Not available

32

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

33

Simplicity 2819387

WASHER, Plain, 3/8

$

$

Not available

34

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 14

0

35

Simplicity 2828352

LOCKNUT, Flange, Whiz, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

36

Simplicity 2176012SM

PIN, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1668845

ARM ASSY., Rocker

Note: Later Models. (See art work, later models show elongated hole.)

$

$

Not available

37

Simplicity 1685192

ARM ASSY., Rocker

Note: Early Models. If part no. 1685192 is ordered, you will receive all parts necessary to install new style rocker arm assembly. (See art work, later models show elongated hole.)

$

$

Not available

38

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

39

Simplicity 1668843

ARM, Rocker

Note: Later Models. (See art work, later models show elongated hole.)

$

$

Not available

39

Simplicity 1665629

ARM, Rocker

Note: Early Models. If part no. 1685192 is ordered, you will receive all parts necessary to install new style rocker arm assembly. (See art work, later models show elongated hole.)

$

$

Not available

40

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

41

Simplicity 1677079SM

SUPPORT ASSY.
(Superseded to 1677079ASM)

$128.99

$

Usually ships in 2-12 days

0

42

Simplicity 2159159SM

SPRING, Tension

$37.99

$

In Stock, only 1 left!

0

43

Simplicity 1685385SM

ROD, Brake

$

$

Not available

44

Simplicity 2821971

CAPSCREW, Hex, 3/8-16 x 1-3/4

$

$

Not available

45

Simplicity 1668066SM

V-BELT, Mower Drive

$58.99

$

In Stock, only 1 left!

0

46

Simplicity 1665748

ROD, Clutch, Tractor P.T.O.

$

$

Not available

47

Simplicity 2821212

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

Note: Later Models. (See art work, later models show elongated hole.)

$

$

Not available

48

Simplicity 2830649

NUT, Hex, Whizlock, 7/16-14

Note: Later Models. (See art work, later models show elongated hole.)

$

$

Not available

49

Simplicity 2820677

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4

Note: Later Models. (See art work, later models show elongated hole.)

$

$

Not available

50

Simplicity 2818199

LOCKWASHER, 7/16

Note: Later Models. (See art work, later models show elongated hole.)

$

$

Not available
