6111 - Troy-Bilt Front-Tine Mini-Tiller (SN: C001001 - C017818) WHEELS Parts Diagram

Front-Tine Mini-Tiller

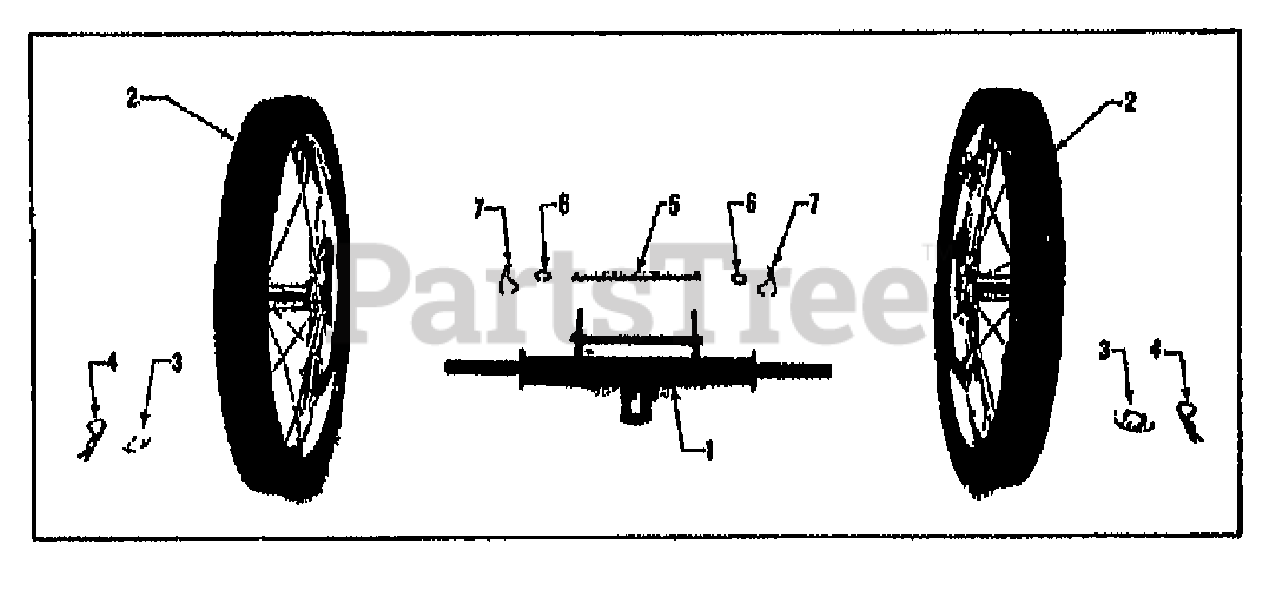

WHEELS Parts Diagram

  • Title
1

Troy-Bilt 60100

AXLE-WELDMENT PNT (WELDED UNIT)

$

$

Currently unavailable

2

Troy-Bilt 03266

ASSM-WHEEL M16 CART

$

$

Currently unavailable

3

Troy-Bilt 9943

WASHER-1.75X.625X.11

$

$

Currently unavailable

4

Troy-Bilt 9369

PIN-HITCH ZP (USED TO ATTACH WHEEL TO AXLE)

$

$

Currently unavailable

5

Troy-Bilt 9367

PIN # .375 X 6.125

Note: (APPROX. 6 1/8" LONG, ATTACHES WHEEL AXLE ASSEMBLY TO CHASSIS)

$

$

Currently unavailable

6

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

7

Troy-Bilt 9368

PIN-HITCH ZP (USED TO ATTACH WHEEL AXLE ASSEMBLY TO CHASSIS)

$

$

Currently unavailable
