611 LTD (1691078) - AGCO 36" Lawn Tractor, 11hp 36" Roller & Misc. Group Parts Diagram

36" Lawn Tractor, 11hp

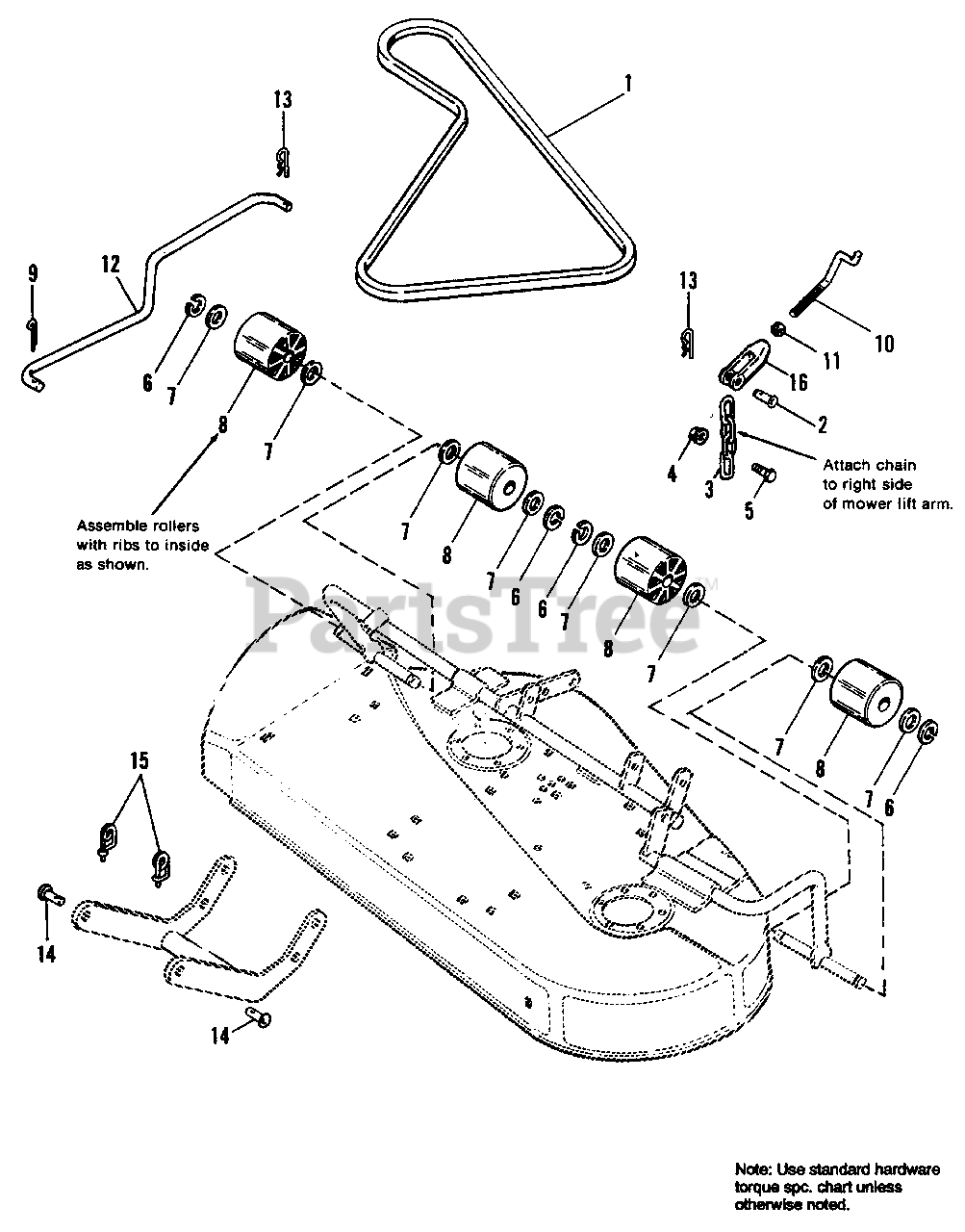

36" Roller & Misc. Group Parts Diagram

  • Title

1

Simplicity 2108505

V-BELT, Mower Drive
(Superseded to 1727773SM)

$34.99

$

In Stock, only 3 left!

0

2

Simplicity 1655651SM

PIN, Rivet
(Superseded to 1733568SM)

$6.99

$

In Stock, only 2 left!

0

3

Simplicity 1669241SM

CHAIN, Lift 4 Links

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 1935048SM

LOCKNUT, Hex, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

5

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

6

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

7

Simplicity 1960020SM

WASHER, Plain, 5/8

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1668487SM

ROLLER

$9.99

$

In Stock, only 3 left!

0

9

Simplicity 1918448SM

PIN, Cotter, 3/32 x 1

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1685243SM

ROD, Lift

$35.99

$

Usually ships in 2-12 days

0

11

Simplicity 1920161SM

NUT, Jam, 5/16-18

$4.49

$

In Stock, only 1 left!

0

12

Simplicity 1668744SM

ROD, P.T.O.

$

$

Not available

13

Simplicity 1960074SM

CLIP, Hairpin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 14

0

15

Simplicity 2176012SM

CUP, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1673575SM

CLEVIS

$

$

Not available
