611 LTD (1690865) - Allis-Chalmers Lawn Tractor, 11hp Decal Group Parts Diagram

Lawn Tractor, 11hp

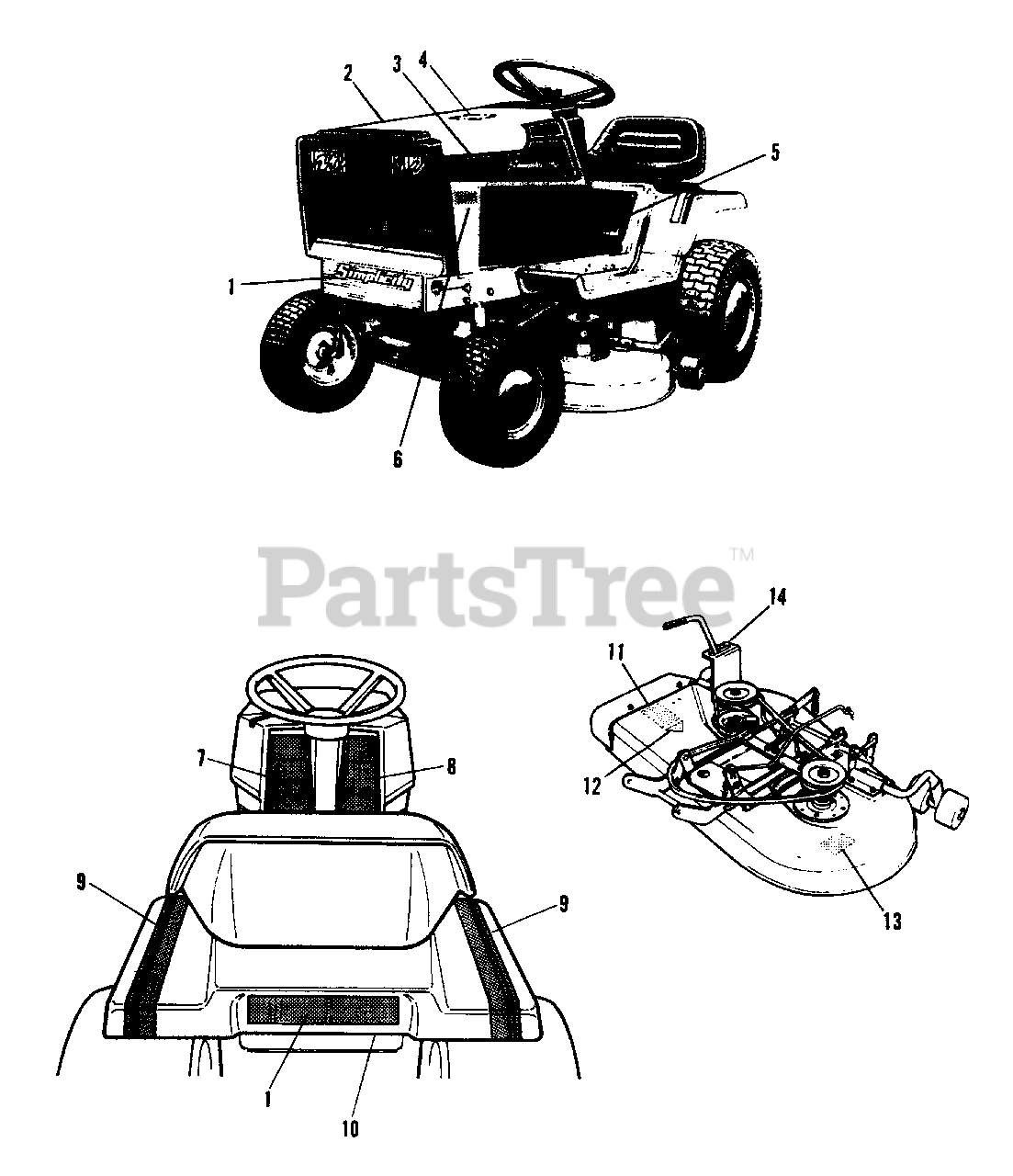

Decal Group Parts Diagram

  • Title

1

Simplicity 2153166

DECAL, Simplicity

$

$

Not available

2

Simplicity 1671716

DECAL, Hood, R.H.

$

$

Not available

3

Simplicity 1671717

DECAL, Hood, L.H.

$

$

Not available

4

Simplicity 1666678

DECAL, Drive Belt

$

$

Not available

5

Simplicity 1708277

DECAL, Shift Pattern

$

$

Not available

6

Simplicity 1666716

DECAL, 4208 Electric

$

$

Not available

6

Simplicity 1666715

DECAL, 4211 Electric

$

$

Not available

7

Simplicity 1673431

DECAL, Dash, L.H. Side

$

$

Not available

8

Simplicity 1673430

DECAL, Dash, R.H. Side (1690840, 1690843 only)

$

$

Not available

8

Simplicity 1675184

DECAL, Dash, R.H. Side (1690909 only)

$

$

Not available

9

Simplicity 1657131

DECAL, Seat Deck

$

$

Not available

10

Simplicity 1670969

DECAL, Battery, Simplicity

$

$

Not available

11

Simplicity 1704277SM

DECAL, Warning
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

12

DECAL, OPEI

$

$

Not available

13

Simplicity 1704276SM

DECAL, Danger

$

$

Not available

14

Simplicity 1656855

DECAL, Mower Height

$

$

Not available
