61 - Husqvarna Chainsaw (SN: 19993100001 - 20014000000) SERVICE UPDATES Parts Diagram

Chainsaw

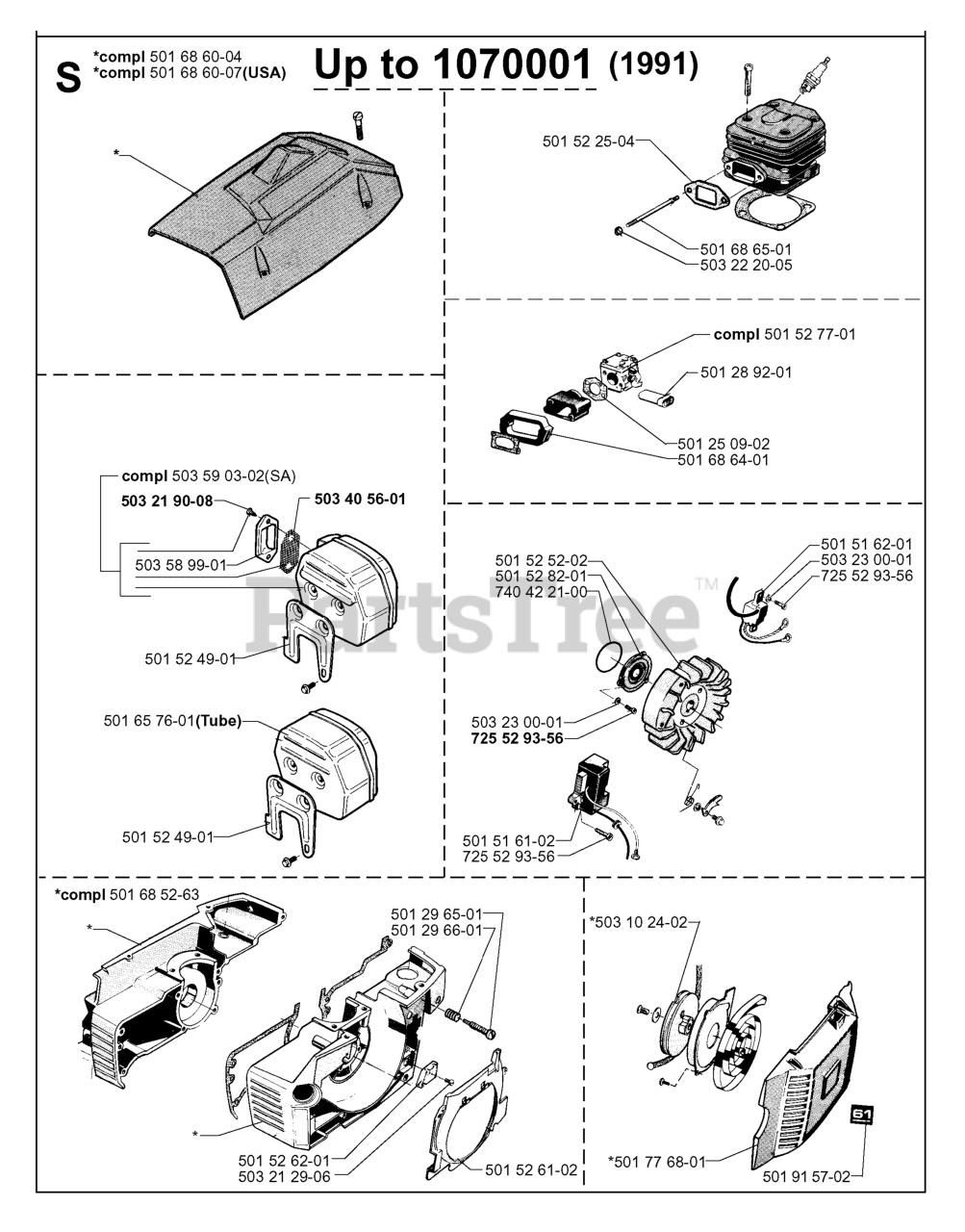

SERVICE UPDATES Parts Diagram

  • Title

725 52 93-56

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, only 2 left!

0

501 52 52-02

Husqvarna 501525202

FLYWHEEL

$

$

Not available

503 21 29-06

Husqvarna 503212906

SCREW

$4.99

$

In Stock, only 4 left!

0

503 59 03-02

Husqvarna 503590302

MUFFLER CPL.
(Superseded to 503590301)

Note: SA

$

$

Not available

501 52 25-04

Husqvarna 501522504

GASKET SILENCER

$5.99

$

In Stock, only 2 left!

0

501 52 49-01

Husqvarna 501524901

ATTACHMENT PLATE

$

$

Not available

501 68 60-04

Husqvarna 501686004

CYLINDER COVER
(Superseded to 501686008)

$

$

Not available

501 52 62-01

Husqvarna 501526201

INSULATOR

$

$

Not available

501 51 61-02

Husqvarna 501516102

IGNITION MODULE
(Superseded to 586725501)

$96.99

$

In Stock, only 2 left!

0

501 52 77-01

Husqvarna 501527701

CARBURETOR NLA

$

$

Not available

501 28 92-01

Husqvarna 501289201

SLEEVE

$5.99

$

In Stock, only 2 left!

0

501 77 68-01

Husqvarna 501776801

STARTER HOUSING
(Superseded to 503615601)

$36.99

$

Usually ships in 3-10 days

0

501 68 52-63

Husqvarna 501685263

CRANK CASE W/BEARINGS

$

$

Not available

501 68 64-01

Husqvarna 501686401

SEALING COLLAR

$

$

Not available

501 68 60-07

Husqvarna 501686007

CYLINDER COVER USA
(Superseded to 501686008)

Note: USA

$

$

Not available

501 29 66-01

Husqvarna 501296601

SPRING

$4.99

$

In Stock, Qty 9

0

503 23 00-01

Husqvarna 503230001

WASHER 4.2X9

$4.99

$

In Stock, only 2 left!

0

503 21 90-08

Husqvarna 503219008

SCREW
(Superseded to 503205508)

$

$

Not available

503 58 99-01

Husqvarna 503589901

EXHAUST OUTLET

$12.68

$

Usually ships in 3-10 days

0

740 42 21-00

Husqvarna 740422100

O-RING

$4.99

$

In Stock, only 3 left!

0

501 65 76-01

Husqvarna 501657601

SILENCER

Note: TUBE

$

$

Not available

501 51 62-01

Husqvarna 501516201

IGNITION COIL

$

$

Not available

501 68 65-01

Husqvarna 501686501

STUD M5/M6

$

$

Not available

501 91 57-02

Husqvarna 501915702

DECAL

$

$

Not available

503 40 56-01

Husqvarna 503405601

SPARK ARRESTOR

$10.99

$

In Stock, Qty 6

0

501 52 82-01

Husqvarna 501528201

WASHER
(Superseded to 501807402)

$

$

Not available

501 52 61-02

Husqvarna 501526102

AIR CONDUCTOR

$

$

Not available

501 29 65-01

Husqvarna 501296501

SCREW

$3.49

$

In Stock, Qty 11

0

503 22 20-05

Husqvarna 503222005

NUT
(Superseded to 503222302)

$

$

Not available

503 10 24-02

Husqvarna 503102402

STARTER PULLEY

$30.99

$

In Stock, only 2 left!

0

501 25 09-02

Husqvarna 501250902

GASKET

$7.49

$

In Stock, Qty 5

0
