61 - Husqvarna Chainsaw (SN: 19970100001 - 19993100000) CARBURETOR DETAILS Parts Diagram

Chainsaw

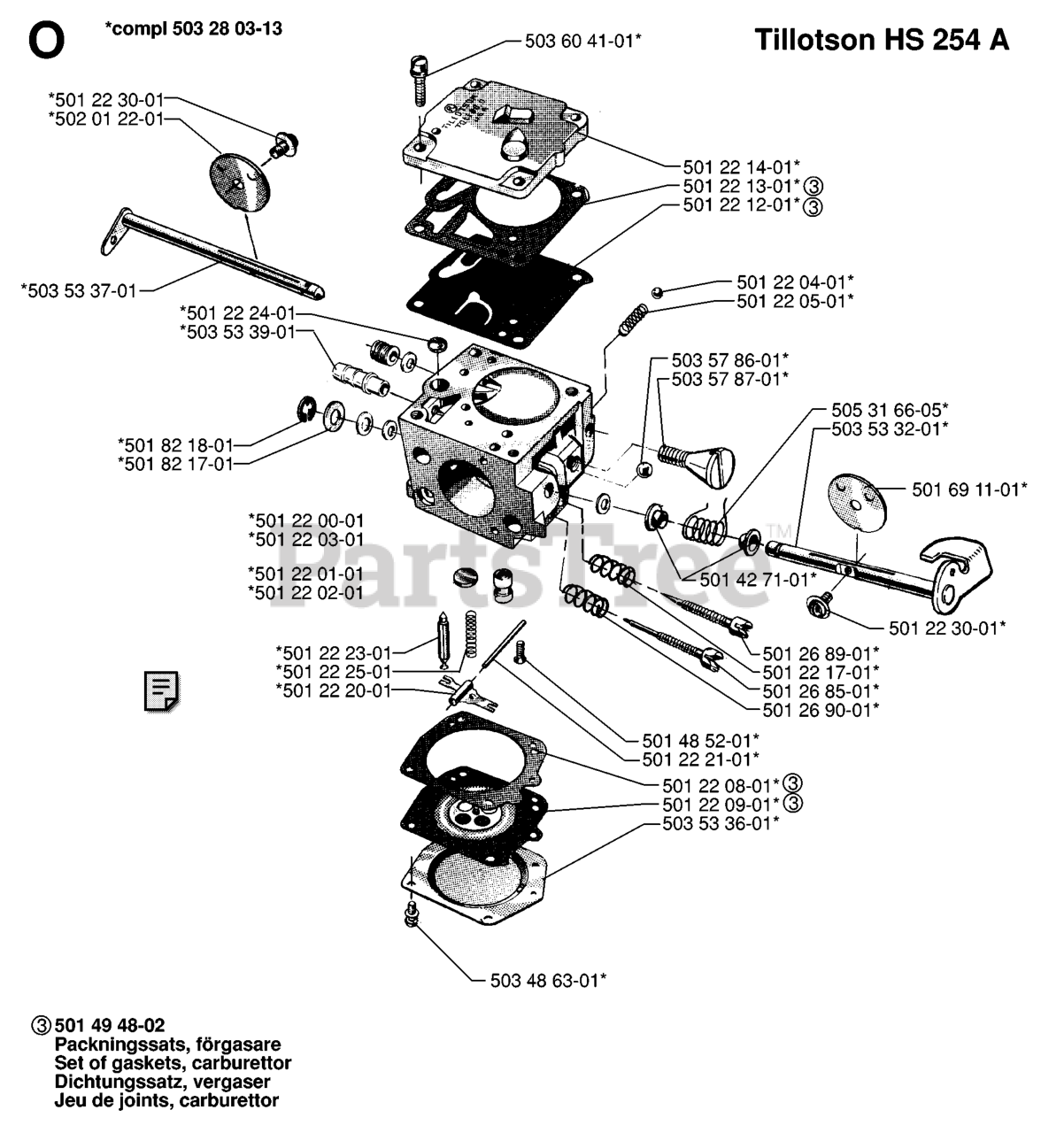

CARBURETOR DETAILS Parts Diagram

  • Title
503 57 86-01

$4.99

$

Usually ships in 3-10 days

0

501 22 24-01

Husqvarna 501222401

FILTER
(Superseded to 578004601)

$

$

Not available

501 22 02-01

Husqvarna 501220201

PLUG (TIL 179-60X)

$

$

Not available

501 48 52-01

$3.49

$

Usually ships in 3-10 days

0

501 22 17-01

$3.49

$

In Stock, Qty 8

0

503 28 03-13

Husqvarna 503280313

CARBURETOR
(Superseded to 574331601)

$117.99

$

Usually ships in 3-10 days

0

503 53 37-01

Husqvarna 503533701

CHOKE SHAFT

$26.99

$

Usually ships in 3-10 days

0

505 31 66-05

$6.99

$

Usually ships in 3-10 days

0

501 22 08-01

Husqvarna 501220801

GASKET, METERING SIDE

Note: 501 49 48-02 SET OF GASKETS

$24.99

$

Usually ships in 3-10 days

0

501 26 85-01

Husqvarna 501268501

IDLE ADJ. SCREW

$20.99

$

Usually ships in 3-10 days

0

501 22 04-01

$10.37

$

Usually ships in 3-10 days

0

501 22 12-01

Husqvarna 501221201

FUEL PUMP DIAPHRAGM

Note: 501 49 48-02 SET OF GASKETS

$9.49

$

In Stock, only 2 left!

0

503 57 87-01

$7.49

$

Usually ships in 3-10 days

0

501 22 14-01

$34.99

$

Usually ships in 3-10 days

0

503 53 39-01

$11.99

$

Usually ships in 3-10 days

0

501 22 03-01

$

$

Not available

503 53 36-01

Husqvarna 503533601

COVER
(Superseded to 501821901)

$

$

Not available

501 22 05-01

$4.99

$

Usually ships in 3-10 days

0

503 48 63-01

Husqvarna 503486301

COVER SCREW

$4.99

$

In Stock, only 2 left!

0

501 22 09-01

Husqvarna 501220901

METERING DIAPHRAGM

Note: 501 49 48-02 SET OF GASKETS

$17.99

$

In Stock, Qty 7

0

501 22 01-01

Husqvarna 501220101

LOCKING RING

$

$

Not available

501 22 21-01

$7.99

$

In Stock, only 1 left!

0

502 01 22-01

Husqvarna 502012201

CHOKE FLAP

$

$

Not available

501 22 23-01

$10.99

$

In Stock, only 1 left!

0

501 42 71-01

$

$

Not available

503 60 41-01

Husqvarna 503604101

SCREW
(Superseded to 501221501)

$4.99

$

In Stock, Qty 7

0

503 53 32-01

Husqvarna 503533201

THROTTLE SHAFT & LEVER

$34.99

$

Usually ships in 3-10 days

0

501 22 20-01

$5.99

$

Usually ships in 3-10 days

0

501 26 89-01

$

$

Not available

501 82 17-01

$3.49

$

In Stock, only 1 left!

0

501 22 13-01

Husqvarna 501221301

GASKET, PUMP SIDE

Note: 501 49 48-02 SET OF GASKETS

$4.99

$

In Stock, only 2 left!

0

501 22 30-01

Husqvarna 501223001

SCREW
(Superseded to 503652701)

$5.99

$

In Stock, Qty 8

0

501 26 90-01

$5.99

$

Usually ships in 3-10 days

0

501 69 11-01

Husqvarna 501691101

THROTTLE FLAP

$7.99

$

In Stock, Qty 7

0

501 22 25-01

$4.99

$

In Stock, only 1 left!

0

501 82 18-01

Husqvarna 501821801

RETAINING RING

$8.07

$

Usually ships in 3-10 days

0

501 22 00-01

$

$

Not available
