61-20RG01 (D-250) - Toro Lawn Tractor (1977) WHEELS, TIRES, DECALS AND MISC. Parts Diagram

Lawn Tractor

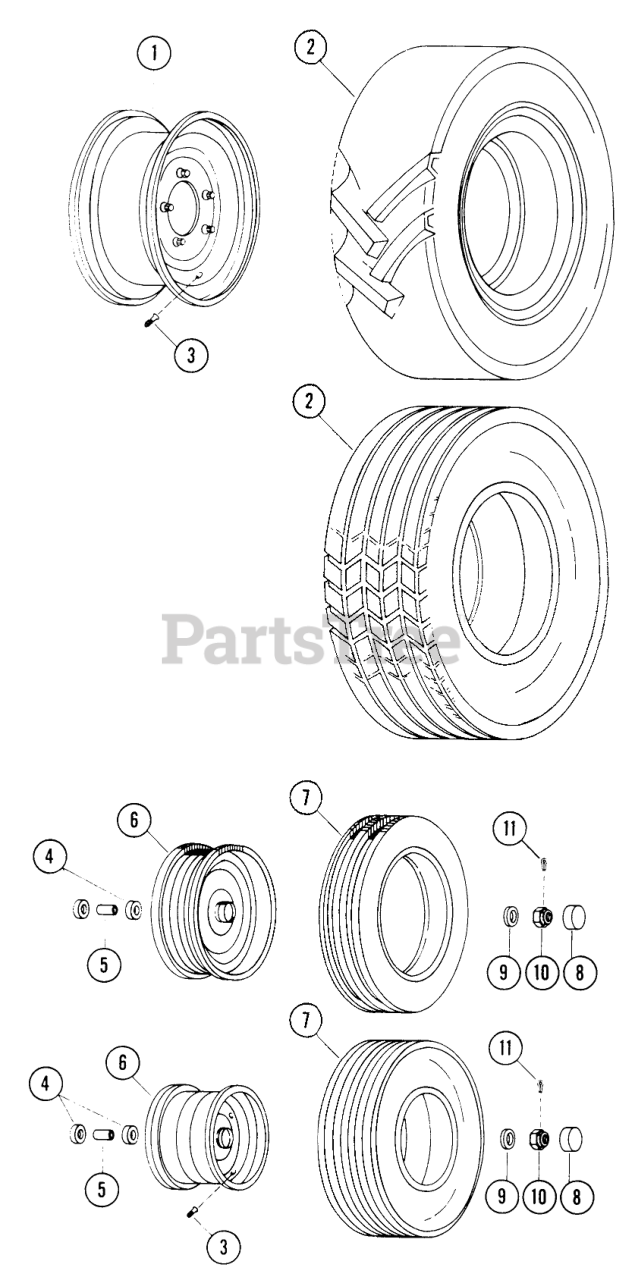

WHEELS, TIRES, DECALS AND MISC. Parts Diagram

  • Title

Toro 105814

Regular Width Cleat Tire Assy. (27 X 6.5 X 15) R.H. Rear

$

$

Not available

Toro 105818

Regular Width Cleat Tire Assy. (27 X 6.5 X 15) L.H. Rear

$

$

Currently unavailable

Toro 105777

Extra Width Cleat Tire Assy., Rear

$

$

Not available

Toro 105778

Rear Wheel and Tire Turf

$

$

Not available

Toro 105775

Shallow Rib Tire Assy., Front

$

$

Currently unavailable

Toro 105796

Narrow Rib Tire Assy., Front

$

$

Currently unavailable

Toro 251616

Hub Assy., Rear

$

$

Not available

1

Toro 105815

Wheel, Regular Width (15 X 5.1 5 Bolt)

$

$

Currently unavailable

Toro 105776

Rear Wheel

$

$

Not available

2

Toro 105816

Tire, Regular Width Cleat (6.5-15 AS)

$

$

Currently unavailable

Toro 105817

Tube, Regular Width Cleat

$

$

Not available

Toro 104157

Tire, Extra Width Cleat

$

$

Not available

Toro 103124

Tire, Extra Width Traction

$

$

Not available

3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

4

Toro 105772

Bearing

$

$

Not available

5

Toro 105773

Spacer

$

$

Not available

6

Toro 105774

Wheel, Shallow Rib (8 X 5 3/8)

$

$

Currently unavailable

Toro 105808

Wheel, Narrow Rib

$

$

Currently unavailable

7

Toro 104464

Tire 18 X 850-8 Staight Rib

$

$

Not available

Toro 105809

Tire, Narrow Rib (4.00 X 10 Rib)

$

$

Currently unavailable

Toro 105810

Tube, Narrow Rib

$

$

Currently unavailable

8

Toro 104398

HUBCAP

$

$

Not available

Toro 105935

Hub Cap, Front (Agricultural Only)

$

$

Currently unavailable

9

Toro 250025

Washer

$

$

Not available

10

Toro 250394

Castel Nut

$

$

Not available

11

Toro 250444

Pin

$

$

Not available

Toro 251051

Decal, Hood Side, Left Hand (2 Pc.)

Note: Not Illustrated.

$

$

Not available

Toro 251052

Decal, Hood Side, Right Hand (2 Pc.)

Note: Not Illustrated.

$

$

Not available

Toro 251050

Decal, Console

Note: Not Illustrated.

$

$

Currently unavailable

Toro 251049

Decal, Dash Panel

Note: Not Illustrated.

$

$

Not available

Toro 251058

Decal, Battery

Note: Not Illustrated.

$

$

Not available

Toro 251057

Decal, Battery Cover

Note: Not Illustrated.

$

$

Currently unavailable

Toro 251056

Decal, Air Cleaner

Note: Not Illustrated.

$

$

Not available

Toro 251055

Decal, Hydraulic Fluid

Note: Not Illustrated.

$

$

Not available

Toro 251054

DECAL-WHEEL HORSE

Note: Not Illustrated.

$

$

Not available

Toro 251053

DECAL-LOGO

Note: Not Illustrated.

$27.99

$

Usually ships in 3-6 days

0

Toro 102883

Base-Taillight
(Superseded to 105202)

Note: Not Illustrated.

$

$

Not available

Toro 910808-4

Screw, 10-32 X 5/8

Note: Not Illustrated.

$

$

Currently unavailable

Toro 915551-4

Nut #10-32

Note: Not Illustrated.

$

$

Currently unavailable

Toro 920079-4

Lockwasher #10

Note: Not Illustrated.

$

$

Currently unavailable

Toro 102884

Lens-Taillight
(Superseded to 112564)

Note: Not Illustrated.

$9.99

$

In Stock, Qty 5

0

Toro 1813

Pin-Tool
(Superseded to 106634)

Note: Not Illustrated.

$

$

Not available

Toro 933505-4

Hairpin

Note: Not Illustrated.

$

$

Currently unavailable
