61-20RG01 (D-250) - Toro Lawn Tractor (1977) V-BELT TENSIONER AND HYDRAULIC RESERVOIR AND HYDRAULIC LINES Parts Diagram

Lawn Tractor

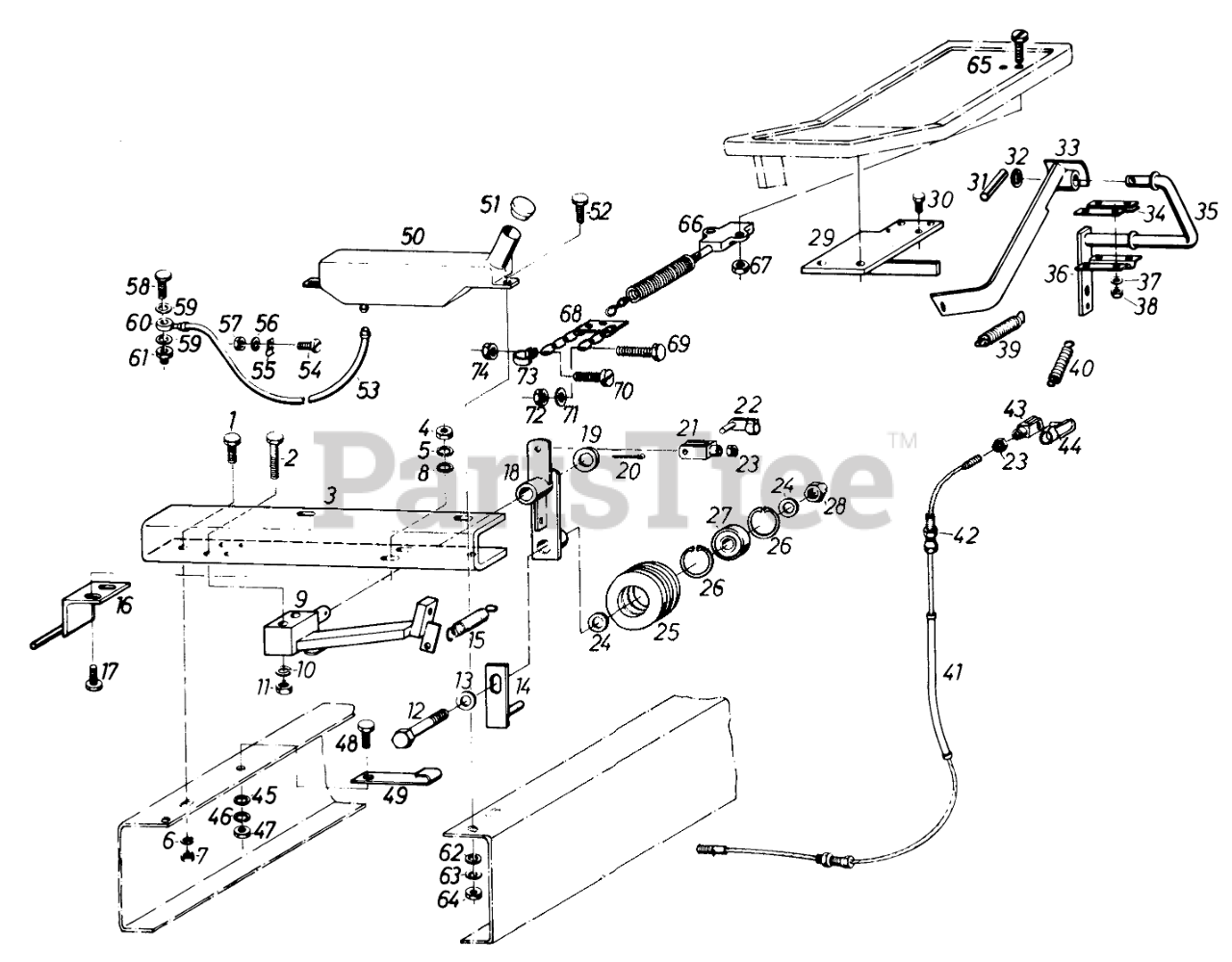

V-BELT TENSIONER AND HYDRAULIC RESERVOIR AND HYDRAULIC LINES Parts Diagram

  • Title

1

Toro 250159

Bolt

$

$

Not available

2

Toro 250172

Screw

$

$

Not available

3

Toro 250240

Support

$

$

Not available

4

Toro 250373

Nut

$

$

Not available

5

Toro 250457

Lockwasher

$

$

Not available

6

Toro 250457

Lockwasher

$

$

Not available

7

Toro 250373

Nut

$

$

Not available

8

Toro 250408

Washer

$

$

Not available

9

Toro 250277

Bracket Assy

$

$

Not available

10

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

11

Toro 250374

Nut

$

$

Not available

12

Toro 250174

Screw

$

$

Not available

13

Toro 250423

Washer

$

$

Not available

14

Toro 250274

Belt Guide Assy.

$

$

Not available

15

Toro 250146

Spring

$

$

Not available

16

Toro 250276

Belt Guide Left

$

$

Not available

17

Toro 250159

Bolt

$

$

Not available

18

Toro 250269

Tension Lever Assy

$

$

Not available

19

Toro 250424

Washer

$

$

Not available

20

Toro 250442

Pin

$

$

Not available

21

Toro 251421

Yoke End

$

$

Not available

22

Toro 250480

Bolt

$

$

Not available

23

Toro 250371

Nut

$

$

Not available

24

Toro 250426

Washer

$

$

Not available

25

Toro 250265

Tension Pulley

$

$

Not available

26

Toro 250498

Retaining Ring

$

$

Not available

27

Toro 250485

Ball Bearing

$

$

Not available

28

Toro 250387

Nut

$

$

Not available

29

Toro 250272

Support Plate

$

$

Not available

30

Toro 250154

Screw

$

$

Not available

31

Toro 250467

Spring Pin

$

$

Not available

32

Toro 250423

Washer

$

$

Not available

33

Toro 250270

Clutch Pedal Assy.

$

$

Not available

34

Toro 250285

Shim

$

$

Not available

35

Toro 250271

Pedal Support Assy.

$

$

Not available

36

Toro 250284

Gas Pedal Bracket

$

$

Not available

37

Toro 250407

Washer

$

$

Not available

38

Toro 251420

Nut

$

$

Not available

39

Toro 250049

Spring

$

$

Not available

40

Toro 250050

Spring

$

$

Not available

41

Toro 250090

Bowden Wire

$

$

Not available

42

Toro 250373

Nut

$

$

Not available

43

Toro 251415

Yoke End

$

$

Not available

44

Toro 250479

Bolt

$

$

Not available

45

Toro 250408

Washer

$

$

Not available

46

Toro 250457

Lockwasher

$

$

Not available

47

Toro 250373

Nut

$

$

Not available

48

Toro 250158

Bolt

$

$

Not available

49

Toro 250268

Belt Guide

$

$

Not available

50

Toro 250364

Oil Reservoir

$

$

Not available

51

Toro 250034

Cap and Gasket

$

$

Not available

52

Toro 250159

Bolt

$

$

Not available

53

Toro 250044

Pipe

$

$

Not available

54

Toro 250186

Screw

$

$

Not available

55

Toro 250113

Clamp

$

$

Not available

56

Toro 250406

Washer

$

$

Not available

57

Toro 250370

Nut

$

$

Not available

58

Toro 250176

Screw

$

$

Not available

59

Toro 250036

GASKET

$

$

Not available

60

Toro 250045

Nipple

$

$

Not available

60

Toro 250033

Clamp

$

$

Not available

61

Toro 250207

Plug

$

$

Not available

62

Toro 250408

Washer

$

$

Not available

63

Toro 250457

Lockwasher

$

$

Not available

64

Toro 250373

Nut

$

$

Not available

65

Toro 250181

Screw

$

$

Not available

66

Toro 250126

STOP LIGHT SWITCH

$

$

Not available

67

Toro 250382

Nut

$

$

Not available

68

Toro 250278

Bracket Assy.

$

$

Not available

69

Toro 250150

Screw

$

$

Not available

70

Toro 250187

Screw

$

$

Not available

71

Toro 250406

Washer

$

$

Not available

72

Toro 250383

Nut

$

$

Not available

73

Toro 250138

Clamp

$

$

Not available

74

Toro 250384

Nut

$

$

Not available
