61-20RG01 (D-250) - Toro Lawn Tractor (1977) TRANSMISSION CONTROL LEVERS AND STOPLIGHT SWITCH Parts Diagram

Lawn Tractor

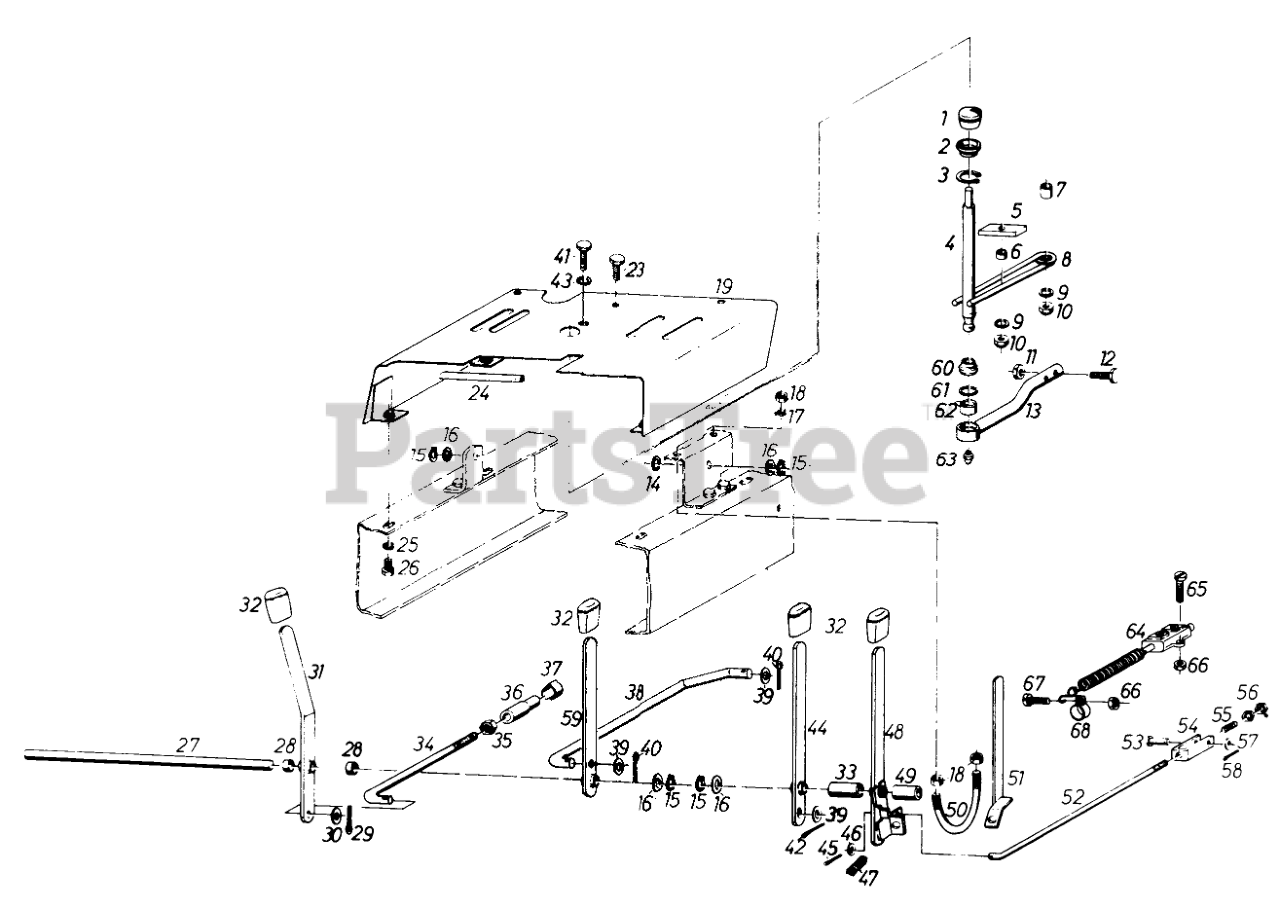

TRANSMISSION CONTROL LEVERS AND STOPLIGHT SWITCH Parts Diagram

  • Title

1

Toro 250057

Shift Knob

$

$

Not available

2

Toro 250263

Spacer

$

$

Not available

3

Toro 250497

Circlip

$

$

Not available

4

Toro 250262

Shift Lever

$

$

Not available

5

Toro 250348

Shim

$

$

Not available

6

Toro 250347

Spacer

$

$

Not available

7

Toro 250346

Spacer

$

$

Not available

8

Toro 250051

Spring

$

$

Not available

9

Toro 250433

Washer

$

$

Not available

10

Toro 250385

Nut

$

$

Not available

11

Toro 250385

Nut

$

$

Not available

12

Toro 250162

Screw

$

$

Not available

13

Toro 250275

Shifting Shaft Assy.

$

$

Not available

14

Toro 250404

Shim

$

$

Not available

15

Toro 250493

Circlip

$

$

Not available

16

Toro 250423

Washer

$

$

Not available

17

Toro 250457

Lockwasher

$

$

Not available

18

Toro 250373

Nut

$

$

Not available

19

Toro 250355

Top Frame

$

$

Not available

23

Toro 250160

Bolt

$

$

Not available

24

Toro 250061

Profile Cleat

$

$

Not available

25

Toro 250457

Lockwasher

$

$

Not available

26

Toro 250158

Bolt

$

$

Not available

27

Toro 250281

Shifting Shaft

$

$

Not available

28

Toro 250482

Spacer

$

$

Not available

29

Toro 250441

Split Pin

$

$

Not available

30

Toro 251433

Washer

$

$

Not available

31

Toro 250295

Shifting Lever

$

$

Not available

32

Toro 250515

Button

$

$

Not available

33

Toro 250293

Spacer

$

$

Not available

34

Toro 250282

Shift Rod

$

$

Not available

35

Toro 250374

Nut

$

$

Not available

36

Toro 250022

Ball Socket

$

$

Not available

37

Toro 250021

Spring

$

$

Not available

38

Toro 250294

Shift Rod

$

$

Not available

39

Toro 251433

Washer

$

$

Not available

40

Toro 250440

Split Pin

$

$

Not available

41

Toro 250161

Screw

$

$

Not available

42

Toro 251408

Split Pin

$

$

Currently unavailable

43

Toro 251407

Washer

$

$

Currently unavailable

44

Toro 250298

Shifting Lever

$

$

Not available

45

Toro 250438

Split Pin

$

$

Not available

46

Toro 250407

Washer

$

$

Not available

47

Toro 250047

Spring

$

$

Not available

48

Toro 250213

Brake Lever Ens.

$

$

Not available

49

Toro 250292

Spacer

$

$

Not available

50

Toro 250140

Brake Segment

$

$

Not available

51

Toro 250212

Clamping Lever Assy

$

$

Not available

52

Toro 250209

Brake Rod

$

$

Not available

53

Toro 250474

Bolt

$

$

Not available

54

Toro 250141

Fork

$

$

Not available

55

Toro 250513

Spring

$

$

Not available

56

Toro 250371

Nut

$

$

Not available

57

Toro 250427

Washer

$

$

Not available

58

Toro 250436

Split Pin

$

$

Not available

59

Toro 250300

Shifting Lever

$

$

Not available

60

Toro 250053

BELLOWS

$

$

Not available

61

Toro 251636

Washer

$

$

Not available

62

Toro 250144

Bearing

$

$

Not available

63

Toro 250503

Grease Fitting

$

$

Not available

64

Toro 250126

STOP LIGHT SWITCH

$

$

Not available

Toro 250134

Rubber Cap

$

$

Not available

65

Toro 250183

Screw

$

$

Not available

66

Toro 250382

Nut

$

$

Not available

67

Toro 250181

Screw

$

$

Not available

68

Toro 250094

Clamp

$

$

Not available
