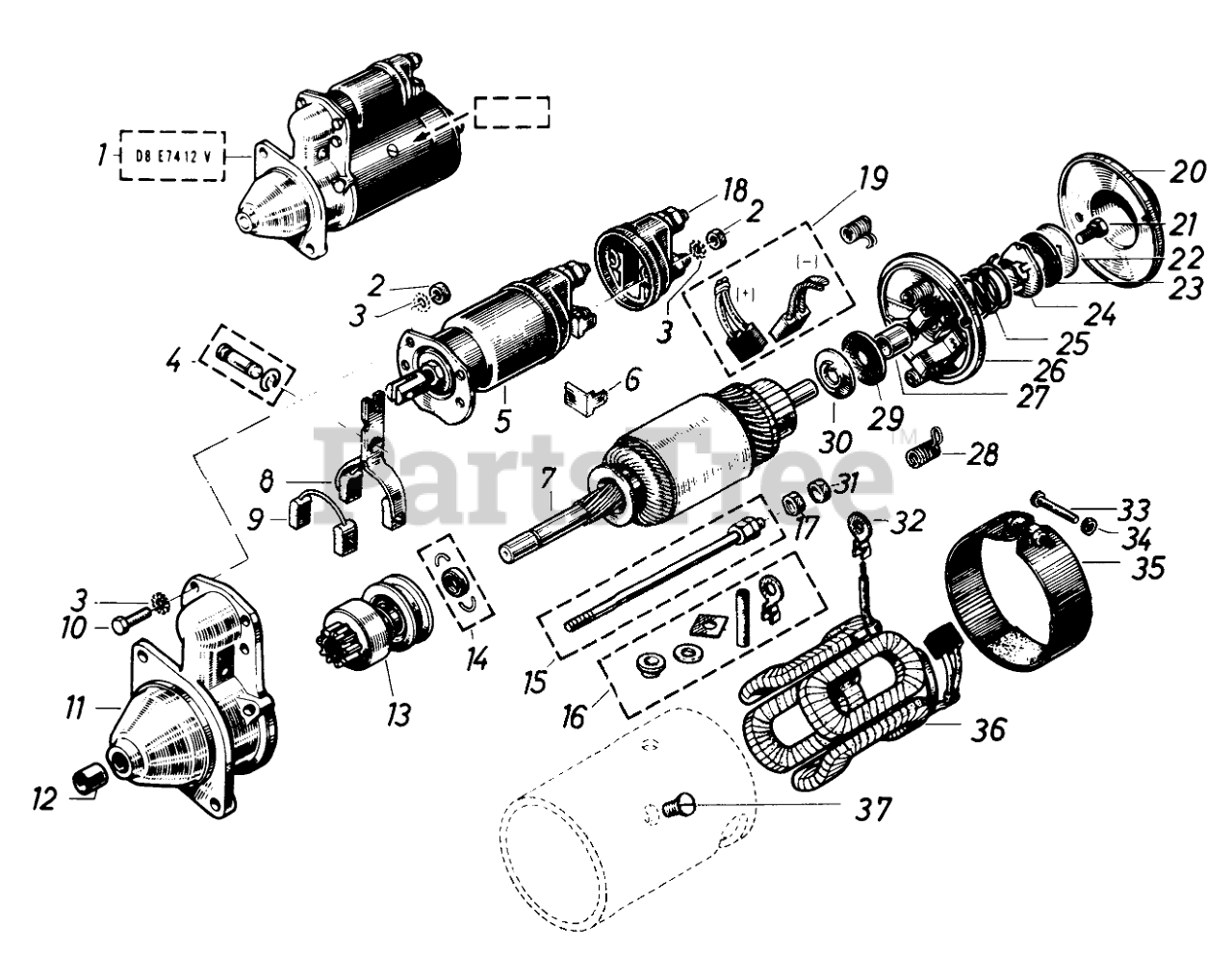

61-20RG01 (D-250) - Toro Lawn Tractor (1977) STARTER Parts Diagram

Lawn Tractor

STARTER Parts Diagram

  • Title
1

Toro 250888

Starter Assy.

$

$

Not available

2

$

$

Not available

3

Toro 250889

Washer

$

$

Not available

4

Toro 250788

Axle with Lock

$

$

Not available

5

Toro 250789

Solenoid

$

$

Not available

6

Toro 250790

Lever

$

$

Not available

7

Toro 250890

Armature

$

$

Not available

8

Toro 250891

Shift Fork

$

$

Not available

9

Toro 250791

Jaws for Shift Fork

$

$

Not available

10

Toro 250816

Screw

$

$

Not available

11

Toro 250892

Drive Bearing Housing

$

$

Not available

12

Toro 250783

Bushing

$

$

Not available

13

Toro 250792

Drive Wheel

$

$

Not available

14

Toro 250893

Pressure Ring

$

$

Not available

15

Toro 250894

Screw Assy.

$

$

Not available

16

Toro 250793

Set of Insulating Parts

$

$

Not available

17

$

$

Not available

18

Toro 250794

Hood Assy.

$

$

Not available

19

Toro 250895

Brush Set

$

$

Not available

20

Toro 250795

Protection Cover

$

$

Not available

21

Toro 250817

Screw

$

$

Not available

22

$

$

Not available

23

$

$

Not available

24

$

$

Not available

25

Toro 250800

Spring

$

$

Not available

26

Toro 250896

Commutator End Plate Assembly

$

$

Not available

27

Toro 250783

Bushing

$

$

Not available

28

Toro 250801

Spring

$

$

Not available

29

$

$

Not available

30

$

$

Not available

31

$

$

Not available

32

Toro 250803

Cable Clamp

$

$

Not available

33

Toro 250897

Screw

$

$

Not available

34

$

$

Not available

35

$

$

Not available

36

Toro 250898

Field Winding

$

$

Not available

37

Toro 250818

Screw

$

$

Not available
