61-20RG01 (D-250) - Toro Lawn Tractor (1977) OIL PUMP Parts Diagram

Lawn Tractor

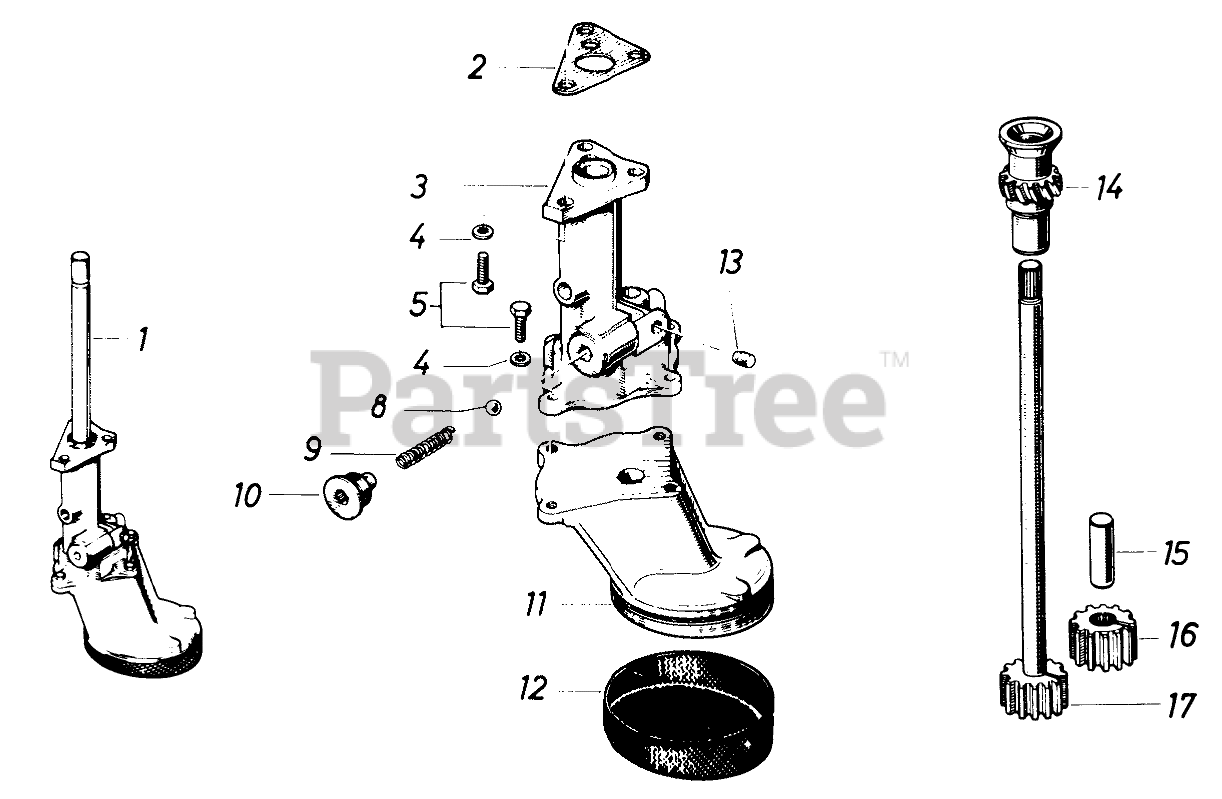

OIL PUMP Parts Diagram

  • Title
1

Toro 250917

Oil Pump Cpl.

$

$

Not available

2

Toro 250696

Paper Gasket

$

$

Not available

3

Toro 250919

Pump Housing
(Superseded to 250917)

$

$

Not available

4

Toro 250843

Lock Washer

$

$

Not available

5

$

$

Not available

8

$

$

Not available

9

Toro 250920

Spring

$

$

Not available

10

$

$

Not available

11

Toro 250698

Intake Housing

$

$

Not available

12

Toro 250699

Screen

$

$

Not available

13

$

$

Currently unavailable

14

Toro 250701

Drive Gear

$

$

Not available

15

Toro 250702

Shaft

$

$

Not available

16

Toro 250703

Pinion

$

$

Not available

17

Toro 250704

Drive Axle

$

$

Not available
