61-20RG01 (D-250) - Toro Lawn Tractor (1977) IGNITION DISTRIBUTOR (R-284) Parts Diagram

Lawn Tractor

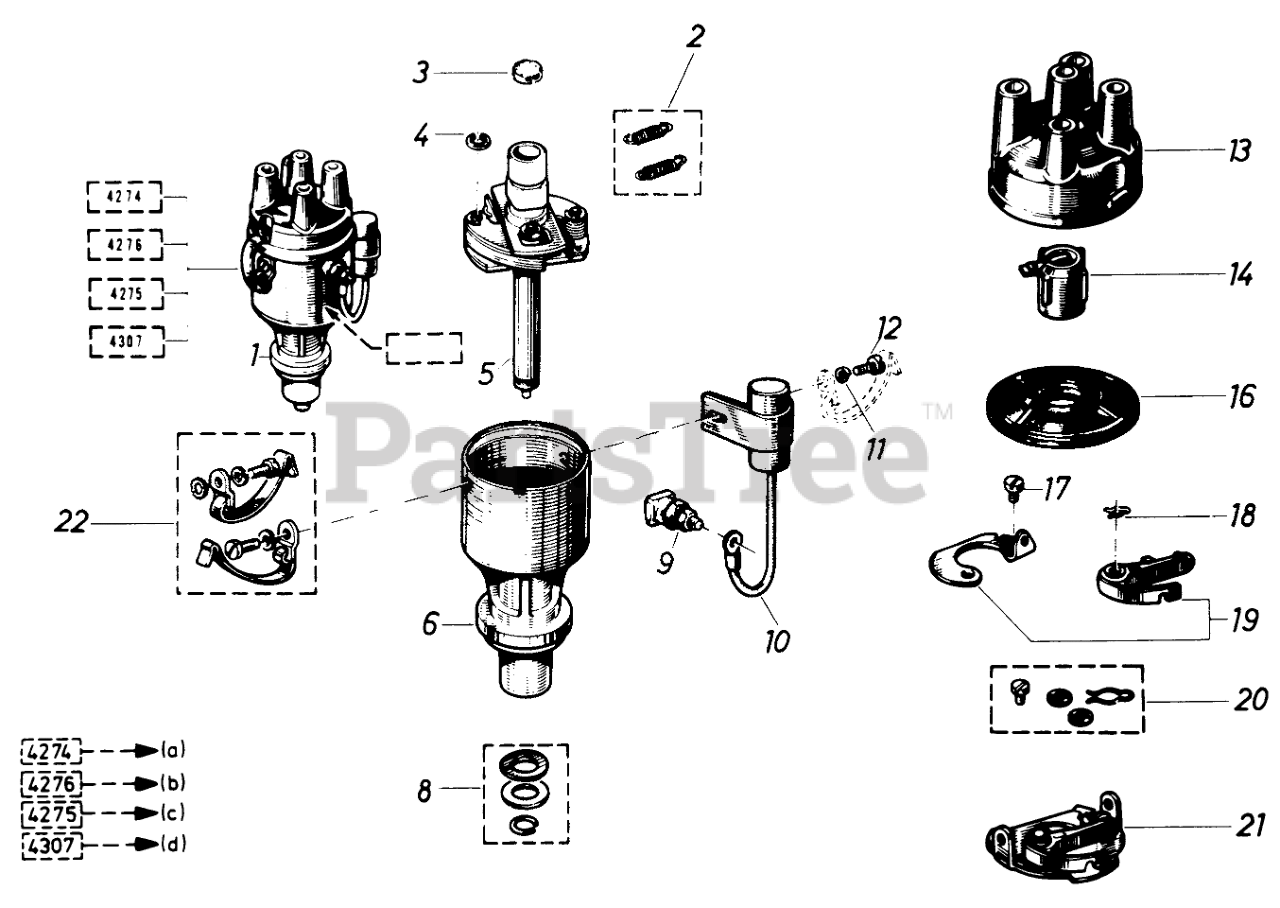

IGNITION DISTRIBUTOR (R-284) Parts Diagram

  • Title

1

Toro 250976

Distributor

$

$

Not available

2

Toro 250977

Spring Set

$

$

Not available

3

Toro 250978

Lubricating Felt

$

$

Not available

4

Toro 250979

Retaining Ring

$

$

Not available

5

Toro 250980a

Axle Cam Shaft and Wts.

$

$

Currently unavailable

5

Toro 250980c

Axle Cam Shaft and Wts.

$

$

Currently unavailable

6

Toro 250981a

Housing

$

$

Currently unavailable

6

Toro 250981b

Housing

$

$

Currently unavailable

6

Toro 250981c

Housing

$

$

Currently unavailable

8

Toro 250820

Set of Lock Washers

$

$

Not available

9

Toro 250982

Joining Screw

$

$

Not available

10

Toro 250821

Condenser
(Superseded to 250961)

$

$

Not available

11

Toro 250830

Lock Washer

$

$

Not available

12

Toro 250831

Screw

$

$

Not available

13

Toro 250822

DISTRIBUTOR CAP

$

$

Not available

14

Toro 250823

DISTRIB CAM ROTOR

$

$

Not available

16

Toro 250824c

Protection Disc

$

$

Currently unavailable

16

Toro 250824d

Protection Disc

$

$

Currently unavailable

17

Toro 250832

Screw

$

$

Not available

18

Toro 250825

Spring Clamp

$

$

Not available

19

Toro 250826

CONTACT LEVER POINT

$

$

Not available

20

Toro 250827

Set of Fastening Parts

$

$

Not available

21

Toro 250828

Point Set W/Plate

$

$

Not available

22

Toro 250829

Retaining Spring Assy.

$

$

Not available
