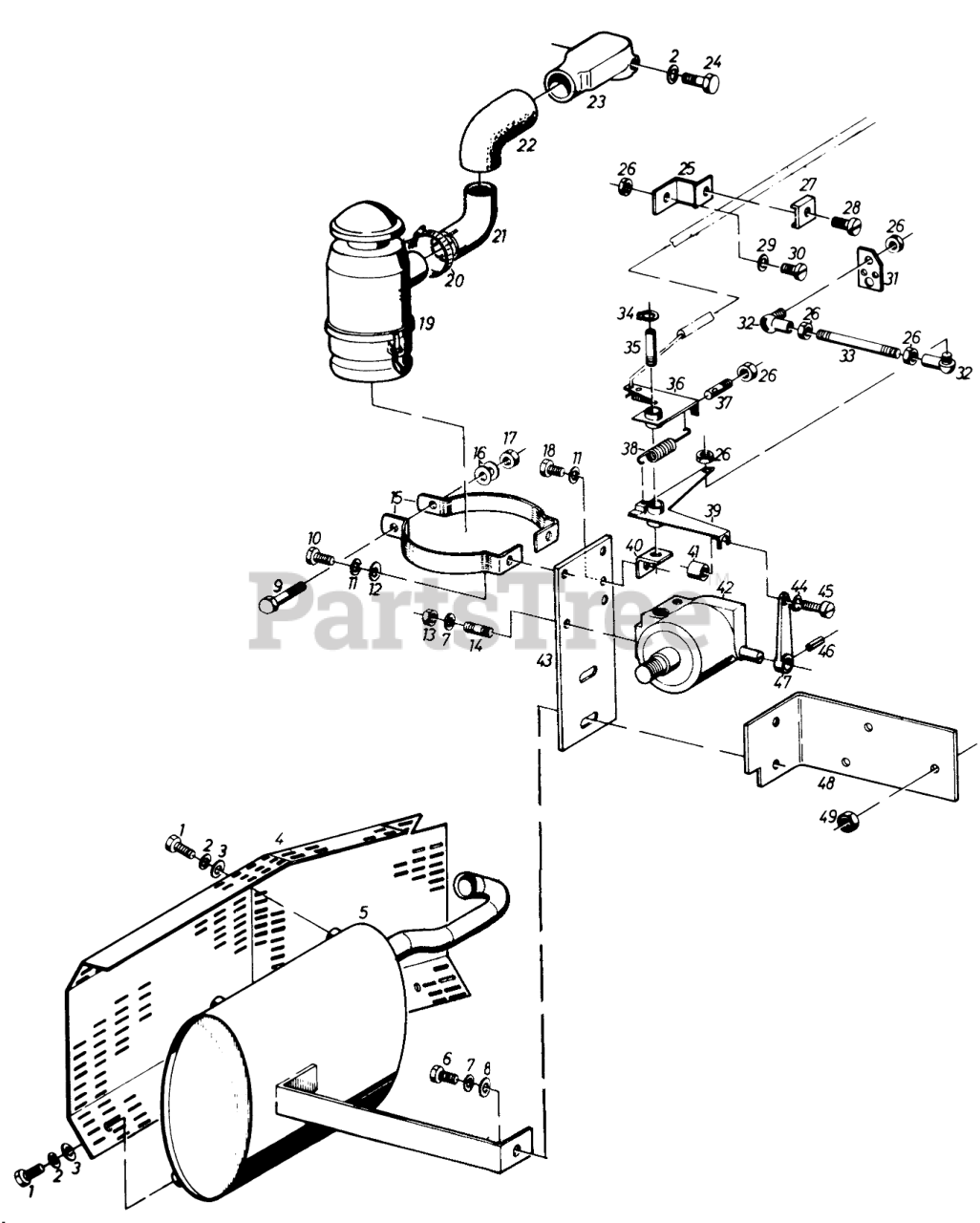

61-20RG01 (D-250) - Toro Lawn Tractor (1977) GOVERNOR PARTS-EXHAUST SYSTEM AND AIR FILTER Parts Diagram

Lawn Tractor

GOVERNOR PARTS-EXHAUST SYSTEM AND AIR FILTER Parts Diagram

  • Title

1

Toro 250151

Screw

$

$

Not available

2

Toro 250455

Lock Washer

$

$

Not available

3

Toro 250407

Washer

$

$

Not available

4

Toro 250250

Muffler Grill

$

$

Not available

5

Toro 250251

Muffler

$

$

Not available

6

Toro 250166

Bolt

$

$

Not available

7

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

8

Toro 251433

Washer

$

$

Not available

9

Toro 250160

Bolt

$

$

Not available

10

Toro 250157

Bolt

$

$

Not available

11

Toro 250457

Lockwasher

$

$

Not available

12

Toro 250433

Washer

$

$

Not available

13

Toro 250374

Nut

$

$

Not available

14

Toro 250202

Stud

$

$

Not available

15

Toro 250516

Clamp

$

$

Not available

16

Toro 250408

Washer

$

$

Not available

17

Toro 250373

Nut

$

$

Not available

18

Toro 250158

Bolt

$

$

Not available

19

Toro 251387

Oil Bath Air Filter (BH 107)

$

$

Not available

Toro 251388

Filter Element

$

$

Not available

Toro 251389

Oil Level Base Plate

$

$

Not available

Toro 251390

Rubber Seal Ring

$

$

Not available

Toro 251391

Filter Base

$

$

Not available

19

Toro 251392

Oil Bath Air Filter (OZU 17/18)

$

$

Currently unavailable

Toro 251393

Filter Element

$

$

Currently unavailable

Toro 251394

Oil Level Base Plate

$

$

Currently unavailable

Toro 251395

Rubber Seal Ring

$

$

Not available

Toro 251396

Filter Base

$

$

Currently unavailable

19

Toro 250020

Oil Bath Air Filter (FX 796D)

$

$

Not available

Toro 250013

Filter Element

$

$

Not available

Toro 250014

Oil Level Plate Base

$

$

Not available

Toro 250015

Rubber Seal Ring

$

$

Not available

Toro 250016

Filter Base

$

$

Not available

20

Toro 250099

Clamp

$

$

Not available

21

Toro 250511

Intake Manifold

$

$

Not available

22

Toro 250017

Rubber Tube

$

$

Not available

23

Toro 250249

Intake Manifold

$

$

Not available

24

Toro 250154

Screw

$

$

Not available

25

Toro 250662

Bracket

$

$

Not available

26

Toro 250370

Nut

$

$

Not available

27

Toro 250661

Clamp

$

$

Not available

28

Toro 250660

Screw

$

$

Not available

29

Toro 250454

Lock Washer

$

$

Not available

30

Toro 250184

Screw

$

$

Not available

31

Toro 250191

Carburetor Lever

$

$

Not available

32

Toro 250093

Angle Joint (W/Part 26)

$

$

Not available

33

Toro 250230

Governor Rod

$

$

Not available

34

Toro 250491

Grip Ring

$

$

Not available

35

Toro 250506

Screw

$

$

Not available

36

Toro 250245

Lever Assy

$

$

Not available

37

Toro 250236

Stud

$

$

Not available

38

Toro 250234

Spring

$

$

Not available

39

Toro 250244

Governor Lever Assy

$

$

Not available

40

Toro 250231

Angle

$

$

Not available

41

Toro 250229

Nut

$

$

Not available

42

Toro 250505

Governor Assy

$

$

Not available

43

Toro 250219

Governor Support

$

$

Not available

44

Toro 250453

Spring Washer

$

$

Not available

45

Toro 250181

Screw

$

$

Not available

46

Toro 251406

Pin (2.5 X 14)

$

$

Currently unavailable

47

Toro 250228

Governor Lever

$

$

Not available

48

Toro 250220

Support

$

$

Not available

49

Toro 250385

Nut

$

$

Not available
