61-20RG01 (D-250) - Toro Lawn Tractor (1977) ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor

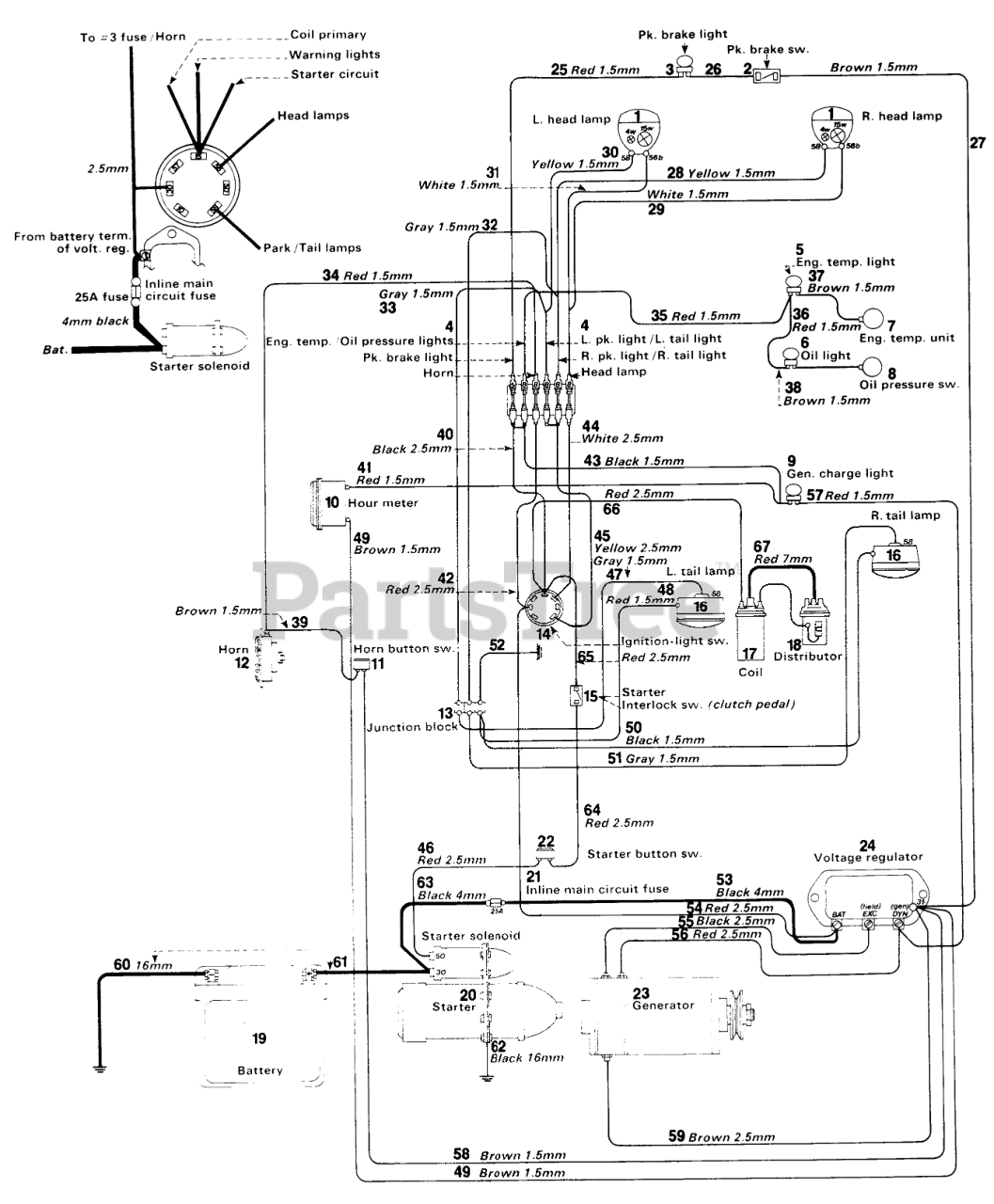

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Tecumseh 250114

Head-Light

$

$

Currently unavailable

2

Tecumseh 250126

STOP LIGHT SWITCH

$

$

Currently unavailable

3

Tecumseh 250129

Park Brake Light

$

$

Currently unavailable

4

Tecumseh 250128

Fuse Block

$

$

Currently unavailable

5

Tecumseh 250130

Engine Temp. Light

$

$

Currently unavailable

6

Tecumseh 250129

Park Brake Light

$

$

Currently unavailable

7

Toro 251680

Engine Temp. Unit

$

$

Not available

8

Toro 250528

Oil Pressure Switch

$

$

Not available

9

Tecumseh 250129

Park Brake Light

$

$

Currently unavailable

10

Tecumseh 250136

Hour Meter

$

$

Currently unavailable

11

Toro 250131

Horn Button Switch

$

$

Not available

12

Tecumseh 250109

Horn

$

$

Currently unavailable

13

Toro 251089

Junction Block

$

$

Not available

14

Toro 250006

Ignition-Light Switch

$

$

Not available

15

Tecumseh 250126

STOP LIGHT SWITCH

$

$

Currently unavailable

16

Toro 251087

Tail Lamp (Left and Right)

$

$

Not available

17

Toro 250523

Ignition Coil

$

$

Not available

17

Toro 250749

Ignition Coil

$

$

Not available

18

Toro 250976

Distributor

$

$

Not available

18

Toro 250927

Distributor

$

$

Currently unavailable

19

Tecumseh 250135

Bolt

$

$

Currently unavailable

20

Toro 250903

Starter

$

$

Not available

21

Toro 250137

Fuse 25A

$

$

Not available

22

Tecumseh 250133

Starter Push Button

$

$

Currently unavailable

23

Toro 250872

Generator

$

$

Not available

23

Toro 250521

Generator

$

$

Not available

24

Toro 251012

Regulator
(Superseded to 251018)

$

$

Not available

25

Toro 251091

Lead Red, Fuse 5A-Ignition for Lamp

$

$

Not available

26

Toro 251092

Lead Red, Ignition for Lamp to Indicator Lamp

$

$

Not available

27

Toro 251093

Lead Brown, Regulator to Indicator Lamp

$

$

Not available

28

Toro 251135

Lead Yellow, Fuse to Park Light Right

$

$

Not available

29

Toro 251133

Lead White, Fuse to Headlight Right

$

$

Not available

30

Toro 251134

Lead Yellow, Fuse to Park Light Left

$

$

Not available

Toro 251131

Insulating Tube

$

$

Not available

31

Toro 251132

Lead White, Fuse to Headlight Left

$

$

Not available

32

Toro 251145

Lead Grey, Fuse to Distributor

$

$

Not available

33

Toro 251146

Lead Grey, Fuse to Distributor

$

$

Not available

Toro 251128

Insulating Tube

$

$

Not available

34

Toro 251094

Lead Red, Fuse 8A to Horn

$

$

Not available

35

Toro 251147

Lead Red, Fuse 8A to Indicator Lamp

$

$

Not available

36

Toro 251150

Lead Red, Indicator Lamp for Water to Indicator Lamp for Oil

$

$

Not available

37

Toro 251151

Lead Brown, Indicator Lamp

$

$

Not available

38

Toro 251148

Lead Brown, Indicator Lamp for Oil-Oil Pressure Switch

$

$

Not available

39

Toro 251136

Lead Brown, Horn Push Button to Horn

$

$

Not available

40

Toro 251101

Lead Black, Light Ignition 15 to Fuse 5A

$

$

Not available

41

Toro 251119

Lead Red, Hour Meter-Indicator Lamp

$

$

Not available

42

Toro 251149

Lead Red, Fuse 8A

$

$

Not available

43

Toro 251156

Lead Black, Fuse 8A to Indicator Lamp

$

$

Not available

Toro 251088

Distributor

$

$

Not available

44

Toro 251144

Lead White, Light Ignition 56 to Fuse 8A

$

$

Not available

Toro 251127

Insulating Hose

$

$

Not available

45

Toro 251143

Lead Yellow, Light Ignition 58 to Fuse 8A

$

$

Not available

46

Toro 251141

Lead Red, Starter 50 to Push Button

$

$

Not available

47

Toro 251160

Lead Grey, Distributor to Taillight Left

$

$

Not available

48

Toro 251161

Lead Red, Distributor to Junction Block

$

$

Not available

48

Toro 251130

Insulating Hose

$

$

Not available

49

Toro 251102

Lead Brown, Hour Meter

$

$

Not available

50

Toro 251159

Lead Black, Distributor

$

$

Not available

50

Toro 251129

Insulating Hose

$

$

Not available

51

Toro 251158

Lead Grey, Distributor to Taillight Right

$

$

Not available

52

Toro 251157

Lead Brown, Frame

$

$

Not available

53

Toro 251097

Lead Black, Fuse to Battery

$

$

Not available

Toro 251099

Distributor

$

$

Not available

Toro 250927

Distributor

$

$

Currently unavailable

Toro 250976

Distributor

$

$

Not available

54

Toro 251142

Lead Red, Regulator BAT to Light Ignition 30

$

$

Not available

55

Toro 251139

Lead Black, Regulator EXC to Generator

$

$

Not available

56

Toro 251138

Lead Red, Regulator DYN to Generator DYN

$

$

Not available

57

Toro 251155

Lead Red, Indicator Lamp to Regulator DYN

$

$

Not available

58

Toro 251137

Lead Brown, Horn Push Button Switch

$

$

Not available

59

Toro 251140

Lead Brown, Generator D

$

$

Not available

60

Toro 251152

Lead Black, Battery to Ground

$

$

Not available

61

Toro 251153

Lead Black, Battery to Starter

$

$

Not available

62

Toro 250322

Ground Cable Chassis-Engine

$

$

Not available

63

Toro 251098

Lead Black, Starter Solenoid to 25 Amp Fuse

$

$

Not available

64

Toro 251095

Lead Red, Indicator to Push Button

$

$

Not available

65

Toro 251096

Lead Red, Light Ignition 15 to Indicator

$

$

Not available

66

Toro 251154

Lead Red, Ignition Switch 15 to Ignition Coil

$

$

Not available

67

Toro 250990

Ignition Cable

$

$

Not available
