61-20RG01 (D-250) - Toro Lawn Tractor (1977) DIFFERENTIAL AND P.T.O. COVER Parts Diagram

Lawn Tractor

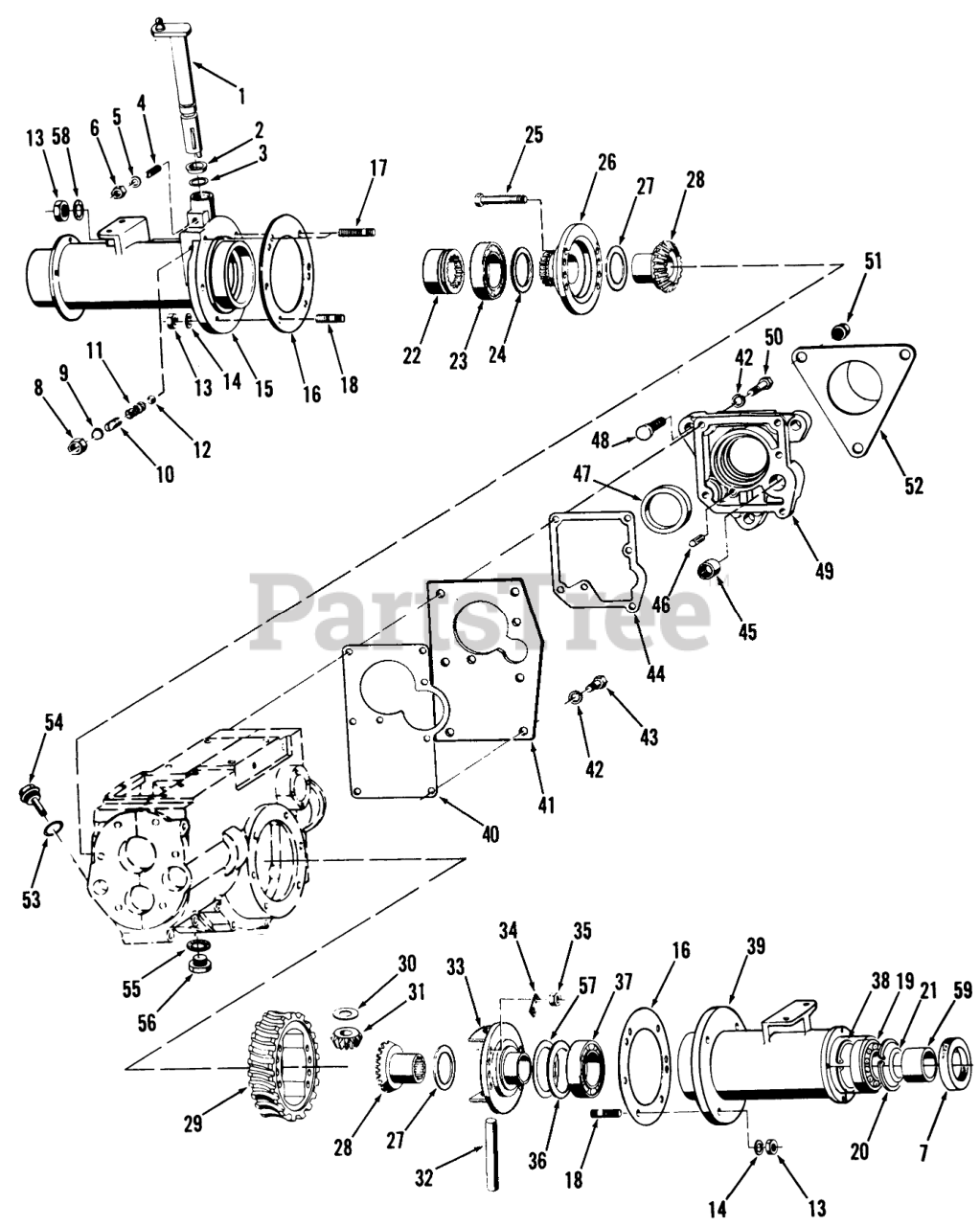

DIFFERENTIAL AND P.T.O. COVER Parts Diagram

  • Title

1

Toro 251557

Shifting Shaft

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

2

Toro 251558

Seal

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

3

Toro 251559

Round Cord Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

4

Toro 251560

Stud

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

5

Toro 251561

Seal

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

6

Toro 250378

Nut

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

7

Toro 251035

Oil Seal

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

8

Toro 250380

Nut

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

9

Toro 251562

Seal

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

10

Toro 251563

Stud

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Currently unavailable

11

Toro 251477

Spring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

12

Toro 251478

Ball

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

13

Toro 250374

Nut

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

14

Toro 250458

Washer
(Superseded to 920084)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$0.99

$

Usually ships in 3-6 days

0

15

Toro 251566

Flared Tube of Rear Right Axle

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

16

Toro 251025

GASKET-REAR AXLE TUB

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

17

Toro 251567

Stud

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Currently unavailable

18

Toro 251527

Stud

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

19

Toro 251569

Ball Bearing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

20

Toro 251570

Retaining Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

21

Toro 251061

O-Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

22

Toro 251571

Shifting Socket

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

23

Toro 251572

Ball Bearing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

24

Toro 251573

Shim (68 X 55.2 X 0.2)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

24

Toro 251574

Shim (68 X 55.2 X 0.3)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

25

Toro 251575

Screw

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

26

Toro 251576

Dierential Cover

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

27

Toro 251577

Shim (66 X 42.1 X 0.2)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

27

Toro 251403

Shim (66 X 4 .1 X 0.3)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

28

Toro 251578

Differ. Pinion Grand (Only Deliverable Part 31)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

29

Toro 251579

Worm Gear

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

30

Toro 251580

Shim (38 X 18.1 X 0.2)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

30

Toro 251581

Shim (38 X 18.1 X 0.3)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

31

Toro 251582

Differ. Pinion Little (Only Deliverable Part 28)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

32

Toro 251583

Differential Shaft

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

33

Toro 251584

Differential Carrier

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

34

Toro 251585

Lock Plate

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

35

Toro 251586

Nut

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

36

Toro 251587

Shim (62 X 50.5 X 0.2)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

36

Toro 251588

Shim (62 X 50.5 X 0.3)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

37

Toro 251589

Ball Bearing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

38

Toro 251570

Retaining Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

39

Toro 251591

Flared Tube of Rear Axle

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

40

Toro 251024

GASKET-REAR PTO

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

41

Toro 251592

Support

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

42

Toro 250458

Washer
(Superseded to 920084)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$0.99

$

Usually ships in 3-6 days

0

43

Toro 251593

Screw

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

44

Toro 251023

GASKET-REAR PTO

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

45

Toro 251434

Needle Bushing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

46

Toro 251595

Pin

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

47

Toro 251026

SEAL RING-REAR PTO

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

48

Toro 251596

Screw

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

49

Toro 251597

Cover

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

50

Toro 251598

Bolt

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

51

Toro 251033

Nut

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

52

Toro 251600

Rear P.T.O. Cover

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

53

Toro 251601

Seal Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

54

Toro 251602

Dipstick

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

55

Toro 251603

Gasket

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

56

Toro 251604

Plug

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

57

Toro 251605

Shim (50 X 62 X 0.5 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

57

Toro 251606

Shim (50 X 62 X 1 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

58

Toro 251607

Lock Washer

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

59

Toro 251608

Bushing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available
