61-20RG01 (D-250) - Toro Lawn Tractor (1977) BRAKES Parts Diagram

Lawn Tractor

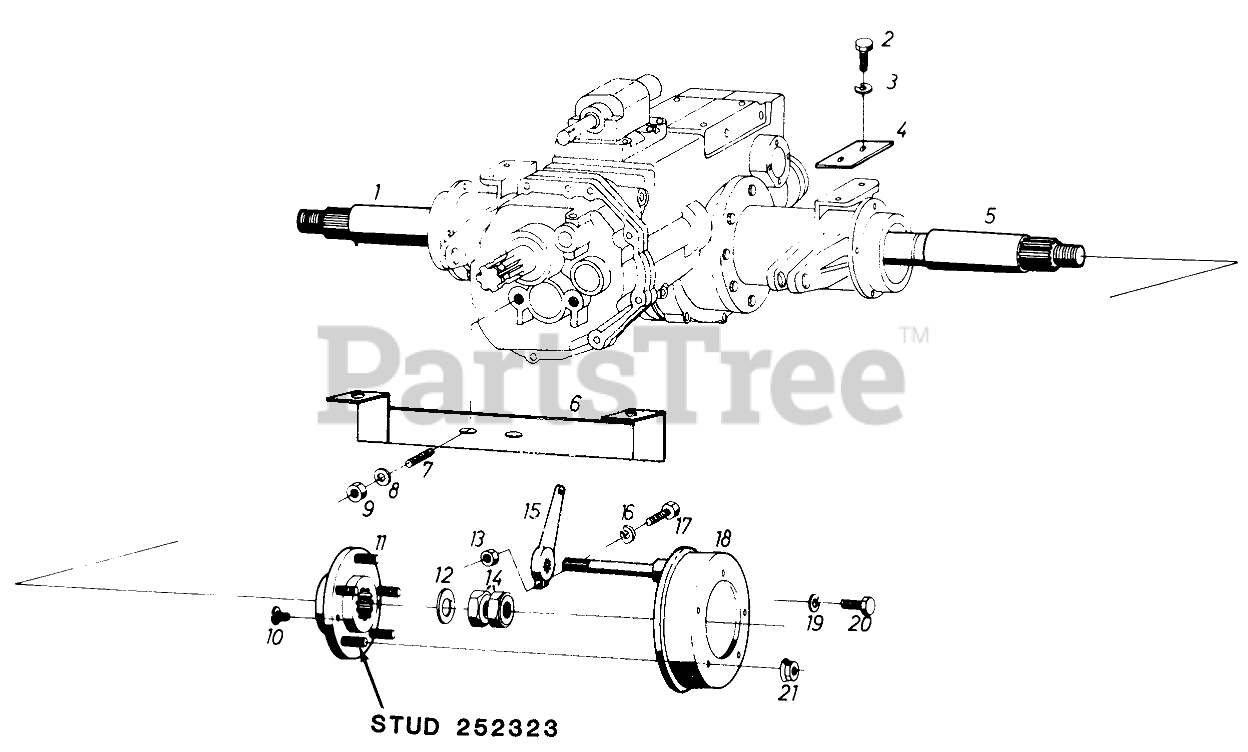

BRAKES Parts Diagram

  • Title

1

Toro 251609

Axle Right

$

$

Not available

2

Toro 251610

Screw

$

$

Not available

3

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 251611

Plate

$

$

Currently unavailable

5

Toro 251612

Axle Left

$

$

Not available

6

Toro 251613

Support Assy.

$

$

Not available

7

Toro 251614

Stud

$

$

Not available

8

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

9

Toro 250374

Nut

$

$

Not available

10

Toro 251615

Screw

$

$

Not available

11

Toro 251616

Hub Assy., Rear

$

$

Not available

12

Toro 251048

Flat Washer

$

$

Not available

13

Toro 250373

Nut

$

$

Not available

14

Toro 251617

Nut

$

$

Not available

15

Toro 251618

Brake Lever

$

$

Not available

16

Toro 250457

Lockwasher

$

$

Not available

17

Toro 250160

Bolt

$

$

Not available

18

Toro 251620

Brake Drum

$

$

Not available

18

Toro 251623

Brake Drum

$

$

Not available

Toro 251624

Brake Plate Cpl

$

$

Not available

Toro 251625

Type Plate

$

$

Currently unavailable

Toro 251626

Lubricating Nipple

$

$

Not available

Toro 251627

Brake Shaft

$

$

Not available

Toro 251628

Brake Shoe Assy

$

$

Not available

Toro 251629

Brake Lining

$

$

Not available

Toro 251630

Rivet

$

$

Not available

Toro 251631

Spring

$

$

Not available

19

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

20

Toro 251621

Screw

$

$

Not available

21

Toro 25033

Nut

$

$

Currently unavailable
