61-20RG01 (D-250) - Toro Lawn Tractor (1976) OIL SUMP AND TIMING CHAIN COVER Parts Diagram

Lawn Tractor

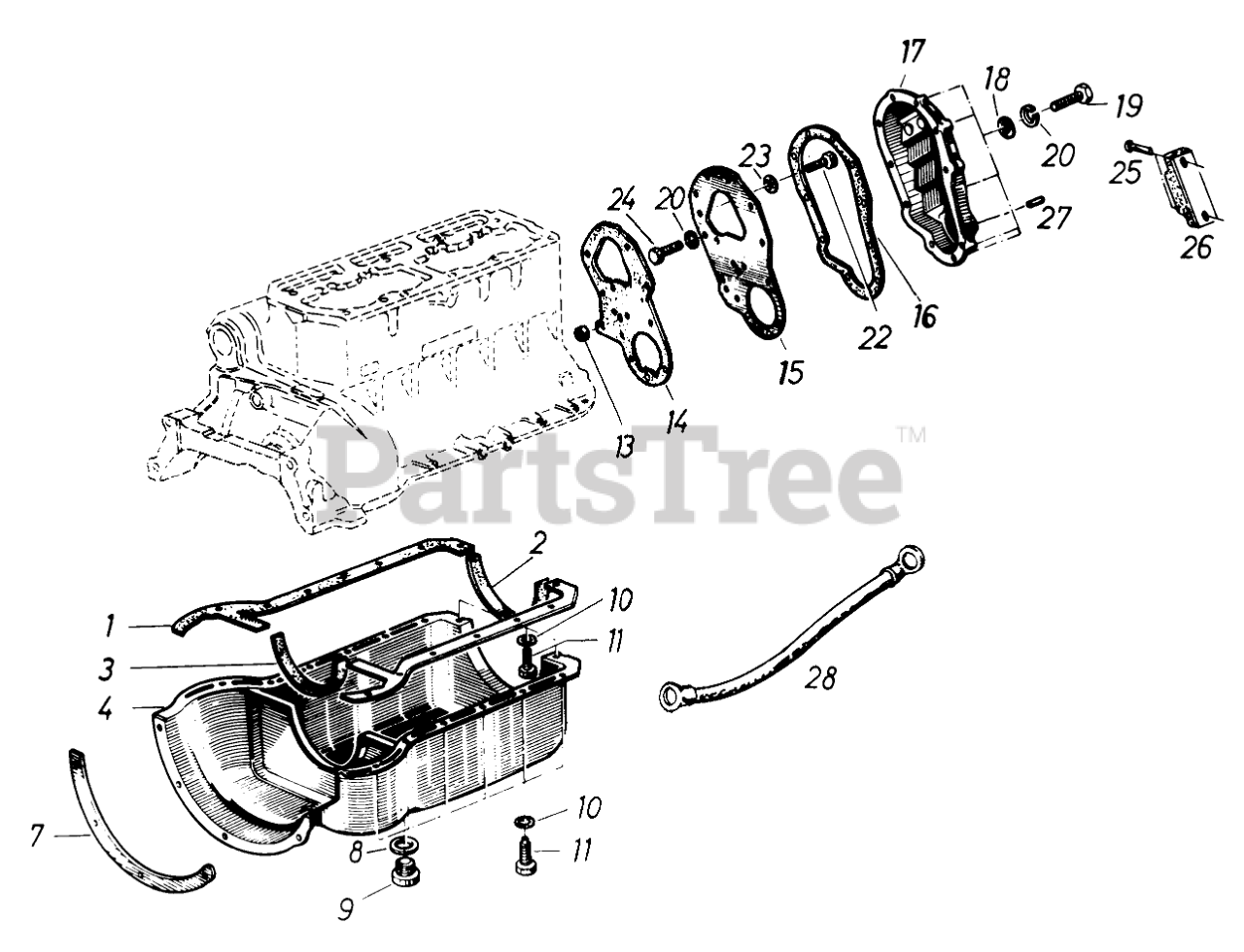

OIL SUMP AND TIMING CHAIN COVER Parts Diagram

  • Title

Toro 250549

Gasket Set

$

$

Not available

1

Toro 251352

Gasket

$

$

Currently unavailable

2

Toro 251353

Gasket

$

$

Currently unavailable

3

Toro 251354

Gasket

$

$

Currently unavailable

4

Toro 250570

Oil Sump

$

$

Not available

7

Toro 250571

Reinforcement

$

$

Not available

8

Toro 250572

Gasket

$

$

Not available

9

$

$

Not available

10

Toro 250574

Lock Washer

$

$

Not available

11

Toro 250575

Screw

$

$

Not available

13

$

$

Not available

14

Toro 250577

Gasket

$

$

Not available

15

Toro 250578

Timing Chain Cover Plate

$

$

Not available

16

Toro 250536

GASKET

$

$

Not available

17

Toro 250996

Distributor Cap

$

$

Not available

18

Toro 250546

Washer

$

$

Not available

19

Toro 250579

Screw

$

$

Not available

20

Toro 250457

Lockwasher

$

$

Not available

22

Toro 250842

Screw

$

$

Not available

23

Toro 250843

Lock Washer

$

$

Not available

24

Toro 250844

Screw

$

$

Not available

25

Toro 250538

Rivet

$

$

Not available

26

Toro 250537

Chain Guide

$

$

Not available

27

$

$

Not available

28

Toro 250322

Ground Cable Chassis-Engine

$

$

Not available
