61-20RG01 (D-250) - Toro Lawn Tractor (1976) HYDRAULIC UNIT Parts Diagram

Lawn Tractor

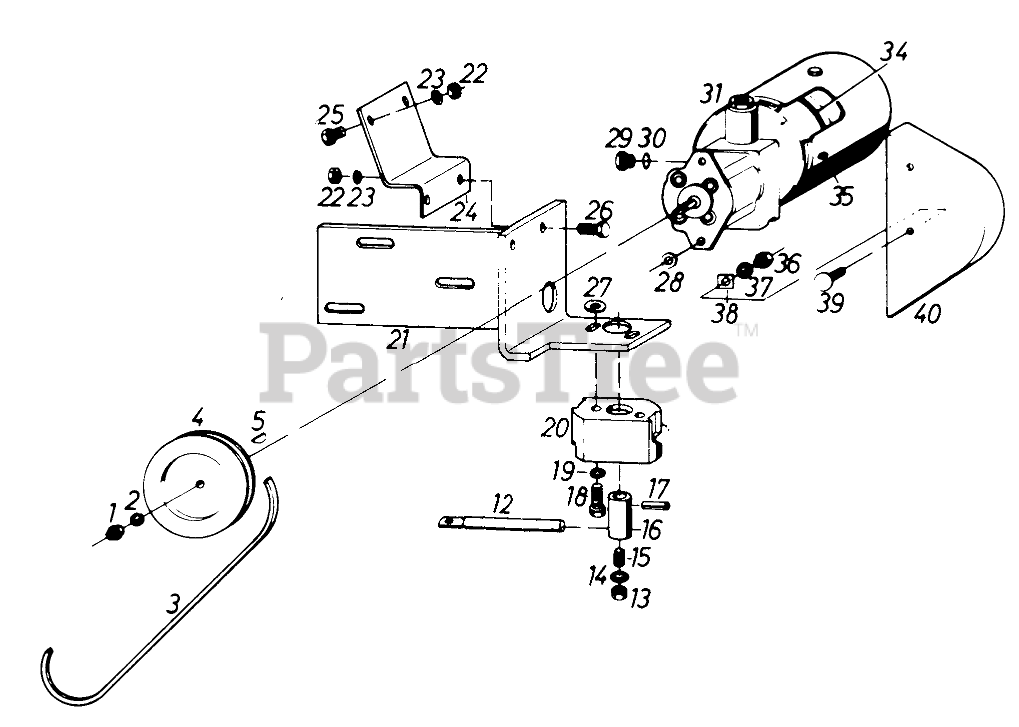

HYDRAULIC UNIT Parts Diagram

  • Title

1

Toro 250371

Nut

$

$

Not available

2

Toro 251419

Spring Washer

$

$

Not available

3

Tecumseh 250106

V-BELT 9.5 X 1175

$

$

Currently unavailable

4

Toro 250361

Pulley

$

$

Not available

5

Toro 250470

Key

$

$

Not available

12

Toro 250359

Lever

$

$

Not available

13

Toro 250378

Nut

$

$

Not available

14

Toro 250449

Washer

$

$

Not available

15

Tecumseh 250203

Stud

$

$

Currently unavailable

16

Toro 250357

Bushing

$

$

Not available

17

Toro 250461

Pin

$

$

Not available

18

Tecumseh 250159

Bolt

$

$

Currently unavailable

19

Toro 250449

Washer

$

$

Not available

20

Tecumseh 250148

Gate Assy.

$

$

Currently unavailable

21

Toro 250365

Hydraulic Support Assy.

$

$

Not available

22

Toro 250371

Nut

$

$

Not available

23

Toro 250455

Lock Washer

$

$

Not available

24

Tecumseh 250225

Ignition Coil Support

$

$

Currently unavailable

25

Tecumseh 250153

Bolt
(Superseded to 250153A)

$

$

Currently unavailable

26

Tecumseh 250155

Bolt
(Superseded to 250160)

$

$

Currently unavailable

27

Toro 250026

Washer (4 X 20 X 0.5)

$

$

Not available

Toro 250512

Washer (4 X 22 X 0.2)

$

$

Not available

28

Toro 250408

Washer

$

$

Not available

29

Toro 251423

Plug

$

$

Not available

30

Toro 251424

Gasket

$

$

Currently unavailable

31

Toro 250519

Hydraulic Unit

$

$

Not available

34

Toro 250517

Gasket

$

$

Not available

35

Toro 250518

Screw

$

$

Not available

36

Toro 250373

Nut

$

$

Not available

37

Toro 250449

Washer

$

$

Not available

38

Toro 250363

Shim

$

$

Not available

39

Tecumseh 250197

Screw

$

$

Currently unavailable

40

Toro 250360

Protection

$

$

Not available
