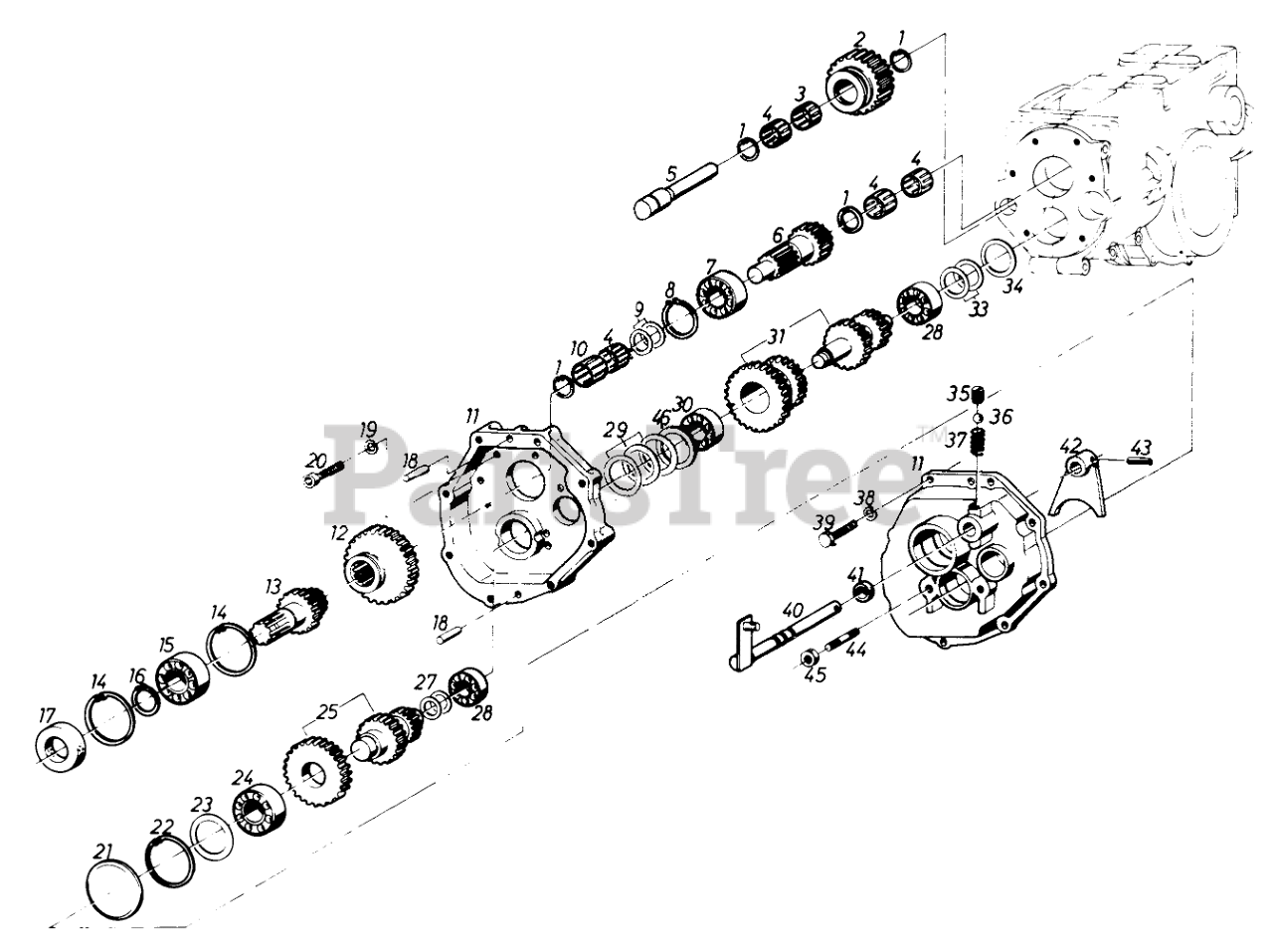

61-20RG01 (D-250) - Toro Lawn Tractor (1976) GEAR BOX Parts Diagram

Lawn Tractor

GEAR BOX Parts Diagram

  • Title

1

Toro 251485

Snap Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

2

Toro 251486

Pinion

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

3

Toro 251487

Needle Cage

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

4

Toro 251488

NEEDLE CAGE

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

5

Toro 251489

Shaft

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

6

Toro 251490

Intermediate Shaft

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

7

Toro 251491

Ball Bearing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

8

Toro 251492

Retaining Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

9

Toro 251444

Shim (15 X 21 X 0.5 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

9

Toro 251445

Shim (15 X 21 X 0.2 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

10

Toro 251495

Needle Cage

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

11

Toro 251496

Multiplier Housing Assy. (Consisting of Parts 11, 18, 38 and 39)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

12

Toro 251497

Pinion

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

13

Toro 251498

Drive Shaft

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

14

Toro 251499

Retaining Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

15

Toro 251500

Ball Bearing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

16

Toro 250497

Circlip

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

17

Toro 251034

SEAL RING

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

18

Toro 251503

Roll Pin

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

19

Toro 251504

Schnorr-Lock Washer

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

20

Toro 251505

Screw

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

21

Toro 251506

Cover

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

22

Toro 250499

Circlip

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

23

Toro 251507

Shim

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

24

Toro 251509

Ball Bearing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

25

Toro 251510

Counter Shaft Multiplier Assy.

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

27

Toro 251437

Shim

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

28

Toro 251512

Bearing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

29

Toro 251507

Shim

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

29

Toro 251508

Shim (37 X 47 X 0.2 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

29

Toro 251638

Shim (37 X 47 X 0.5 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

30

Toro 251515

Ball Bearing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

31

Toro 251516

Counter Shaft Assy

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

33

Toro 251517

Shim (28 X 40 X 0.1 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

33

Toro 251518

Shim (28 X 40 X 0.3 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

34

Toro 251519

Lock Washer

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

35

Toro 251520

Stud

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

36

Toro 251521

Ball

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

37

Toro 251522

Spring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

38

Toro 250457

Lockwasher

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

39

Toro 250158

Bolt

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

40

Toro 251523

Shift Axle

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

41

Toro 251524

O-Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

42

Toro 251525

Shift Fork

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

43

Toro 251526

Spring Pin

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

44

Toro 251527

Stud

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

45

Toro 250374

Nut

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

46

Toro 251528

Washer

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available
