61-20RG01 (D-250) - Toro Lawn Tractor (1976) FUEL TANK AND FUEL LINES Parts Diagram

Lawn Tractor

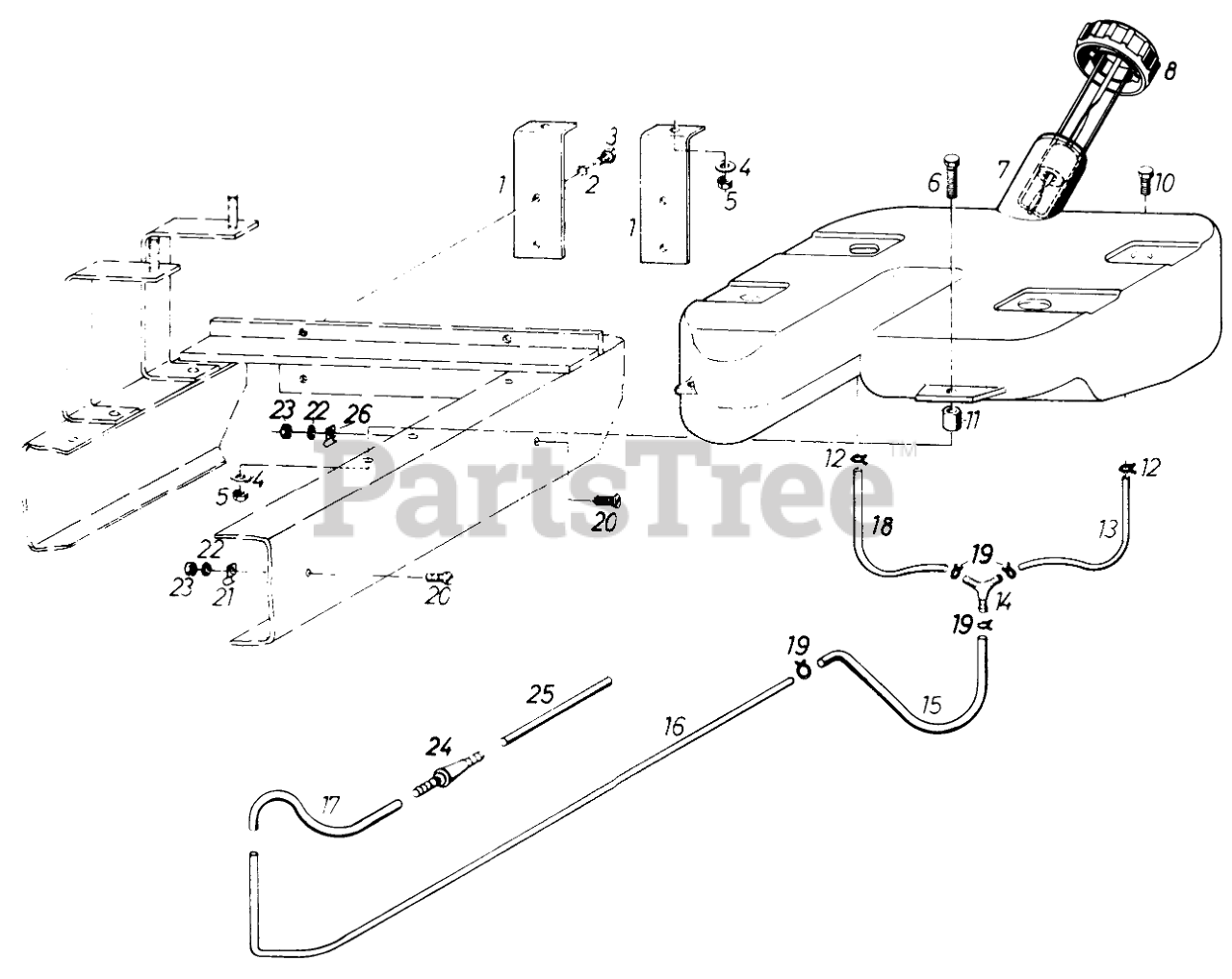

FUEL TANK AND FUEL LINES Parts Diagram

  • Title

1

Tecumseh 250254

Bracket

$

$

Currently unavailable

2

Toro 250457

Lockwasher

$

$

Not available

3

Tecumseh 250158

Bolt

$

$

Currently unavailable

4

Toro 250433

Washer

$

$

Not available

5

Toro 250385

Nut

$

$

Not available

6

Tecumseh 250162

Screw

$

$

Currently unavailable

7

Tecumseh 250252

Tank
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

8

Toro 251372

CAP-FUEL TANK

$

$

Not available

10

Tecumseh 250158

Bolt

$

$

Currently unavailable

11

Tecumseh 250227

Shim
(Superseded to 250225)

$

$

Currently unavailable

12

Toro 250100

Clamp

$

$

Currently unavailable

13

Toro 250075

Fuel Tube

$

$

Not available

14

Toro 250074

Distributor

$

$

Not available

15

Toro 250071

Fuel Pipe

$

$

Not available

16

Tecumseh 250253

Fuel Pipe

$

$

Currently unavailable

17

Toro 250072

Fuel Pipe

$

$

Not available

18

Toro 250077

Fuel Pipe

$

$

Not available

19

Tecumseh 250102

Clamp

$

$

Currently unavailable

20

Tecumseh 250183

Screw
(Superseded to 250218A)

$

$

Currently unavailable

21

Tecumseh 250113

Clamp

$

$

Currently unavailable

22

Toro 250429

Washer

$

$

Not available

23

Toro 250382

Nut

$

$

Not available

24

Toro 250070

FILTER

$

$

Not available

25

Toro 250073

Fuel Pipe

$

$

Not available

26

Toro 251370

Clamp

$

$

Currently unavailable

Toro 250097

Tension Strap

$

$

Not available
