61-20RG01 (D-250) - Toro Lawn Tractor (1976) FRONT AXLE, SPINDLES AND TIE RODS Parts Diagram

Lawn Tractor

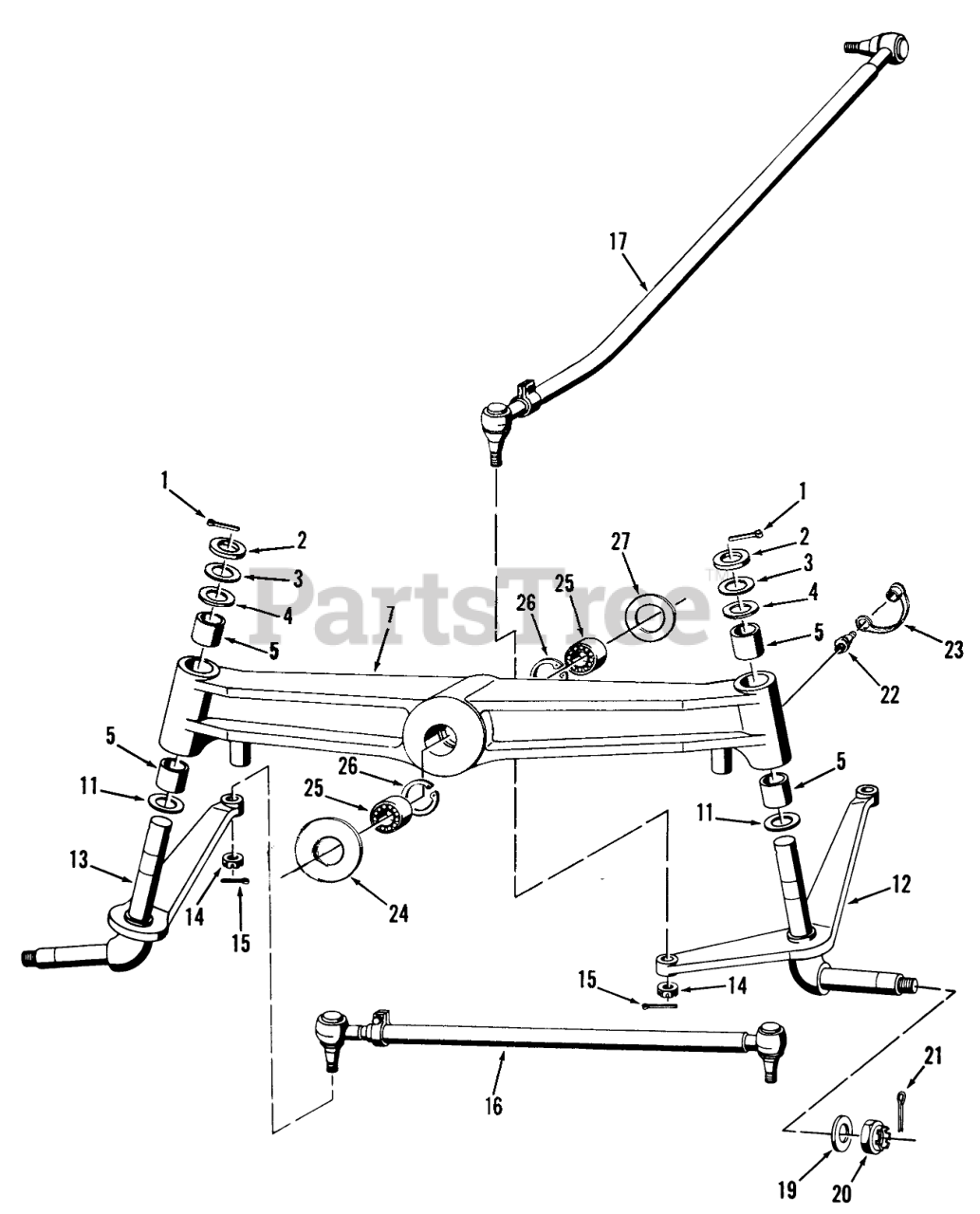

FRONT AXLE, SPINDLES AND TIE RODS Parts Diagram

  • Title
1

$

$

Not available

2

Toro 250428

Washer

$

$

Not available

3

Toro 250405

Shim (22 X 32 0.3 DIN 988)

$

$

Not available

3

Toro 250398

Shim (22 X 32 0.5 DIN 988)

$

$

Not available

4

$

$

Not available

5

Toro 250040

Sleeve

$

$

Not available

7

Toro 250315

Front Axle Assy. (with Parts 5, 11, 22, 23, 25 and 26)

$

$

Not available

11

Toro 250041

Washer

$

$

Not available

12

Toro 250316

Steering Knuckle Spindle Left Assy.

$

$

Not available

13

Toro 250317

Steering Knuckle Spindle Right Assy.

$

$

Not available

14

Toro 250393

Castet Nut

$

$

Not available

15

$

$

Not available

16

Toro 250311

Tie Rod (Consisting of Parts 14, 15 and 16)

$

$

Not available

17

Toro 250310

Thrust Rod (Consisting of Parts 14, 15 and 17)

$

$

Not available

19

Toro 250025

Washer

$

$

Not available

20

Toro 250394

Castel Nut

$

$

Not available

21

$

$

Not available

22

Toro 250503

Grease Fitting

$

$

Not available

23

$

$

Not available

24

Toro 250027

Washer

$

$

Not available

25

Toro 250484

BALL BEARING

$

$

Not available

26

Toro 250500

Circlip

$

$

Not available

27

Toro 250028

WASHER

$

$

Not available
