61-20RG01 (D-250) - Toro Lawn Tractor (1976) FENDER AND SEAT ASSEMBLIES AND TOOL KIT Parts Diagram

Lawn Tractor

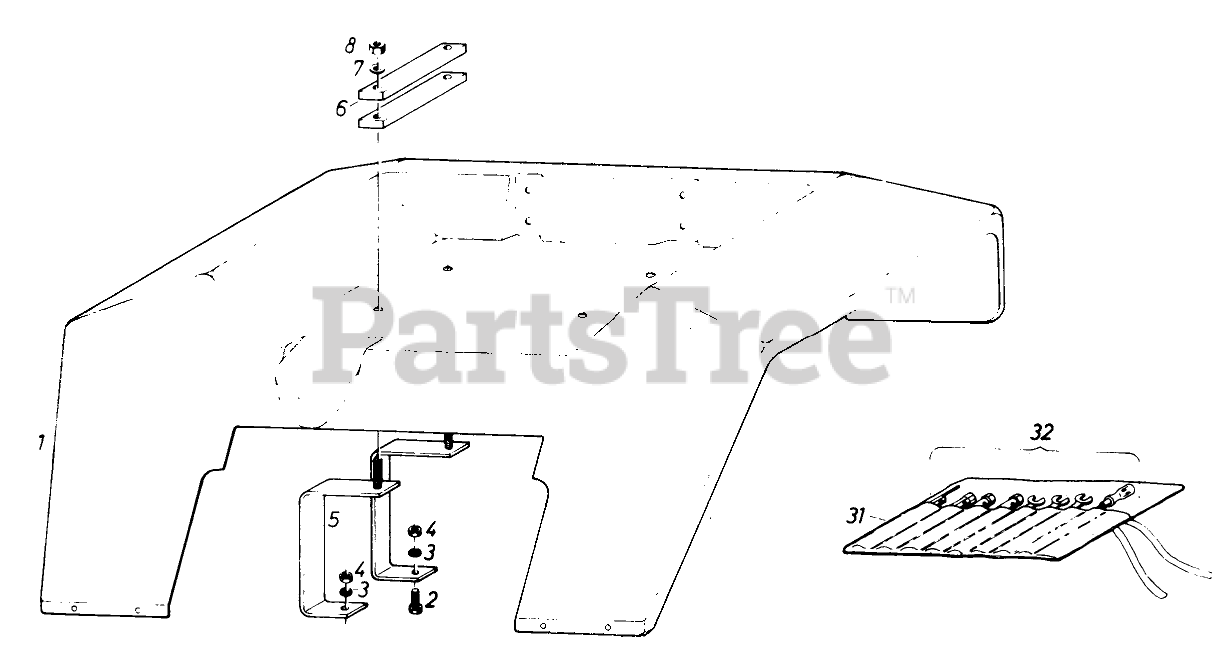

FENDER AND SEAT ASSEMBLIES AND TOOL KIT Parts Diagram

  • Title
1

Toro 250349

Fender and Seat

$

$

Not available

2

$

$

Not available

3

Toro 250408

Washer

$

$

Not available

4

$

$

Not available

5

Toro 250350

Support Assy

$

$

Not available

6

$

$

Not available

7

Toro 250408

Washer

$

$

Not available

8

$

$

Not available

31

Toro 250082

Tool Kit Holder

$

$

Not available

32

Toro 250087

Tool Set Cpl

$

$

Not available

Toro 251382

Box Wrench

$

$

Currently unavailable

Toro 251381

Box Wrench

$

$

Currently unavailable

Toro 251380

Double Ended Jawed Wrench

$

$

Currently unavailable

Toro 251379

Double Ended Jawed Wrench

$

$

Currently unavailable

Toro 251378

Double Ended Jawed Wrench

$

$

Not available

Toro 251377

Drift

$

$

Currently unavailable

Toro 251376

Screwdriver

$

$

Currently unavailable

Toro 251375

Square Key Wrench

$

$

Not available

Toro 250111

Fuse 5A

$

$

Not available

$

$

Not available

Toro 250137

Fuse 25A

$

$

Not available
