61-20RG01 (D-250) - Toro Lawn Tractor (1976) CLUTCH HOUSING AND DRIVE SHAFT Parts Diagram

Lawn Tractor

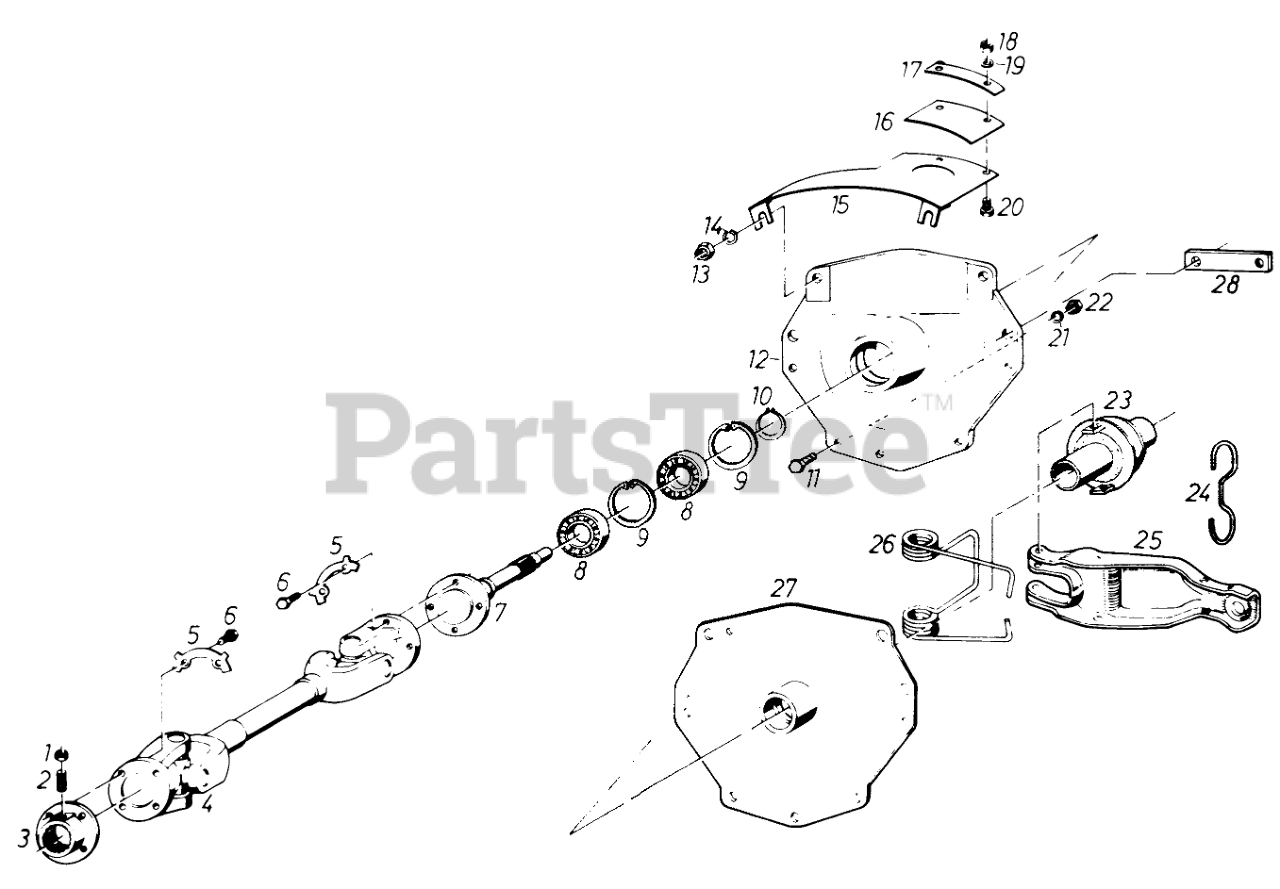

CLUTCH HOUSING AND DRIVE SHAFT Parts Diagram

  • Title

1

Toro 250378

Nut

$

$

Not available

2

Tecumseh 250206

Stud
(Superseded to 250213)

$

$

Currently unavailable

3

Toro 250319

Sliding Flange

$

$

Not available

4

Toro 250320

DRIVE SHAFT

$

$

Not available

5

Tecumseh 250139

Lock Washer

$

$

Currently unavailable

6

Toro 251417

Screw

$

$

Not available

7

Tecumseh 250255

Clutch Shaft

$

$

Not available

8

Toro 250487

Ball Bearing

$

$

Not available

9

Toro 250499

Circlip

$

$

Not available

10

Toro 250496

CIRCLIP

$

$

Not available

11

Tecumseh 250159

Bolt

$

$

Currently unavailable

12

Tecumseh 250256

Flange
(Superseded to 250256D)

$

$

Currently unavailable

13

Toro 250374

Nut

$

$

Not available

14

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

15

Tecumseh 250243

Protection Assy

$

$

Currently unavailable

16

Tecumseh 250232

Rubber Plate

$

$

Currently unavailable

17

Tecumseh 250233

Lock Plate

$

$

Currently unavailable

18

Toro 250384

Nut

$

$

Not available

19

Toro 250407

Washer

$

$

Not available

20

Tecumseh 250178

Screw

$

$

Currently unavailable

21

Toro 250457

Lockwasher

$

$

Not available

22

Toro 250373

Nut

$

$

Not available

23

Toro 251418

Clutch Thrust Ring

$

$

Not available

24

Toro 250770

Spring

$

$

Not available

25

Toro 250769

Fork

$

$

Not available

26

Toro 250768

Spring

$

$

Not available

27

Toro 250772

Clutch Plate

$

$

Not available

28

Tecumseh 250257

Bracket

$

$

Currently unavailable
