61-20RG01 (D-250) - Toro Lawn Tractor (1976) BRAKE AND CLUTCH PEDALS, MID HYDRAULIC LIFT CYLINDER AND LIFT AXLE Parts Diagram

Lawn Tractor

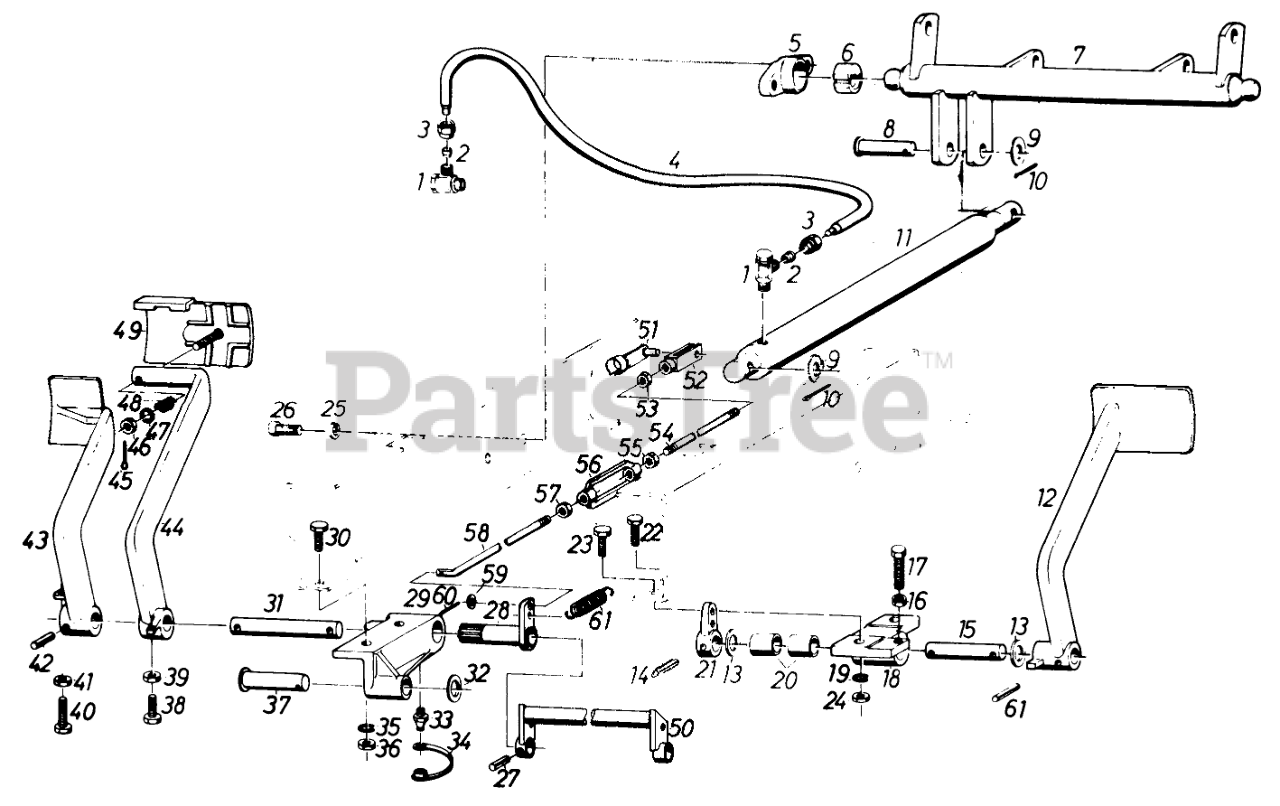

BRAKE AND CLUTCH PEDALS, MID HYDRAULIC LIFT CYLINDER AND LIFT AXLE Parts Diagram

  • Title

1

Toro 250037

JOINT (CONSISTS 2 PT

$

$

Not available

2

Toro 250030

RING SEAL

$

$

Not available

3

Toro 250008

NUT

$

$

Not available

4

Toro 251689

High Pressure Hose (Order Parts No. 2 and 3 Also)

$

$

Not available

5

Toro 250358

Flange

$

$

Not available

6

Toro 250042

Bearing

$

$

Not available

7

Toro 250366

Lift Axle

$

$

Not available

8

Toro 250477

Bolt

$

$

Not available

9

Toro 250425

Washer

$

$

Not available

10

Toro 250442

Pin

$

$

Not available

11

Toro 250043

Hydraulic Cylinder

$

$

Not available

12

Tecumseh 250283

Clutch Pedal

$

$

Currently unavailable

13

Toro 250403

Shim (18 X 25 X 0.5)

$

$

Not available

14

Toro 250462

Pin

$

$

Not available

15

Tecumseh 250287

Clutch Axle
(Superseded to 250287B)

$73.99

$

Usually ships in 3-12 days

0

16

Toro 250378

Nut

$

$

Not available

17

Tecumseh 250160

Bolt

$

$

Currently unavailable

18

Tecumseh 250296

Pedal Bearing Left Assy. (Only Deliverable Part 20)
(Superseded to 250305)

$

$

Not available

19

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

20

Toro 250031

Bearing

$

$

Not available

21

Tecumseh 250142

Lever

$

$

Currently unavailable

22

Tecumseh 250168

Bolt

$

$

Currently unavailable

23

Tecumseh 250167

Bolt
(Superseded to 250180)

$

$

Currently unavailable

24

Toro 250374

Nut

$

$

Not available

25

Toro 250460

Spring Washer

$

$

Not available

26

Tecumseh 250180

Screw

$

$

Currently unavailable

27

Toro 250462

Pin

$

$

Not available

28

Tecumseh 250291

Axle

$

$

Currently unavailable

29

Tecumseh 250288

Pedal Bearing Right

$243.99

$

Usually ships in 3-12 days

0

30

Tecumseh 250167

Bolt
(Superseded to 250180)

$

$

Currently unavailable

31

Tecumseh 250290

Axle
(Superseded to 250290A)

$

$

Currently unavailable

32

Toro 250425

Washer

$

$

Not available

33

Toro 250502

Grease Zerk

$

$

Not available

34

Toro 250060

Cap

$

$

Not available

35

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

36

Toro 250374

Nut

$

$

Not available

37

Toro 250475

Bolt

$

$

Not available

38

Tecumseh 250160

Bolt

$

$

Currently unavailable

39

Toro 250378

Nut

$

$

Not available

40

Tecumseh 250163

Screw

$

$

Currently unavailable

41

Toro 250378

Nut

$

$

Not available

42

Toro 250463

Pin

$

$

Not available

43

Tecumseh 250289

Brake Pedal

$

$

Currently unavailable

44

Tecumseh 250299

Brake Pedal Assy. (Consists of Parts 44-49)
(Superseded to 250299A)

$81.99

$

Usually ships in 3-12 days

0

45

Toro 250438

Split Pin

$

$

Not available

46

Toro 250373

Nut

$

$

Not available

47

Toro 250408

Washer

$

$

Not available

48

Toro 250048

Spring

$

$

Not available

49

Tecumseh 250143

Plate Assy

$

$

Currently unavailable

50

Tecumseh 250297

Axle Assy
(Superseded to 250304)

$63.99

$

Usually ships in 3-12 days

0

51

Toro 250481

Bolt

$

$

Not available

52

Toro 250501

Fork

$

$

Not available

53

Toro 250373

Nut

$

$

Not available

54

Tecumseh 250211

Brake Rod
(Superseded to 250270)

$

$

Currently unavailable

55

Toro 250373

Nut

$

$

Not available

56

Toro 250504

Tension Screw

$

$

Not available

57

Toro 250376

Nut

$

$

Not available

58

Tecumseh 250210

Brake Rod

$

$

Currently unavailable

59

Toro 250408

Washer

$

$

Not available

60

Toro 250438

Split Pin

$

$

Not available
