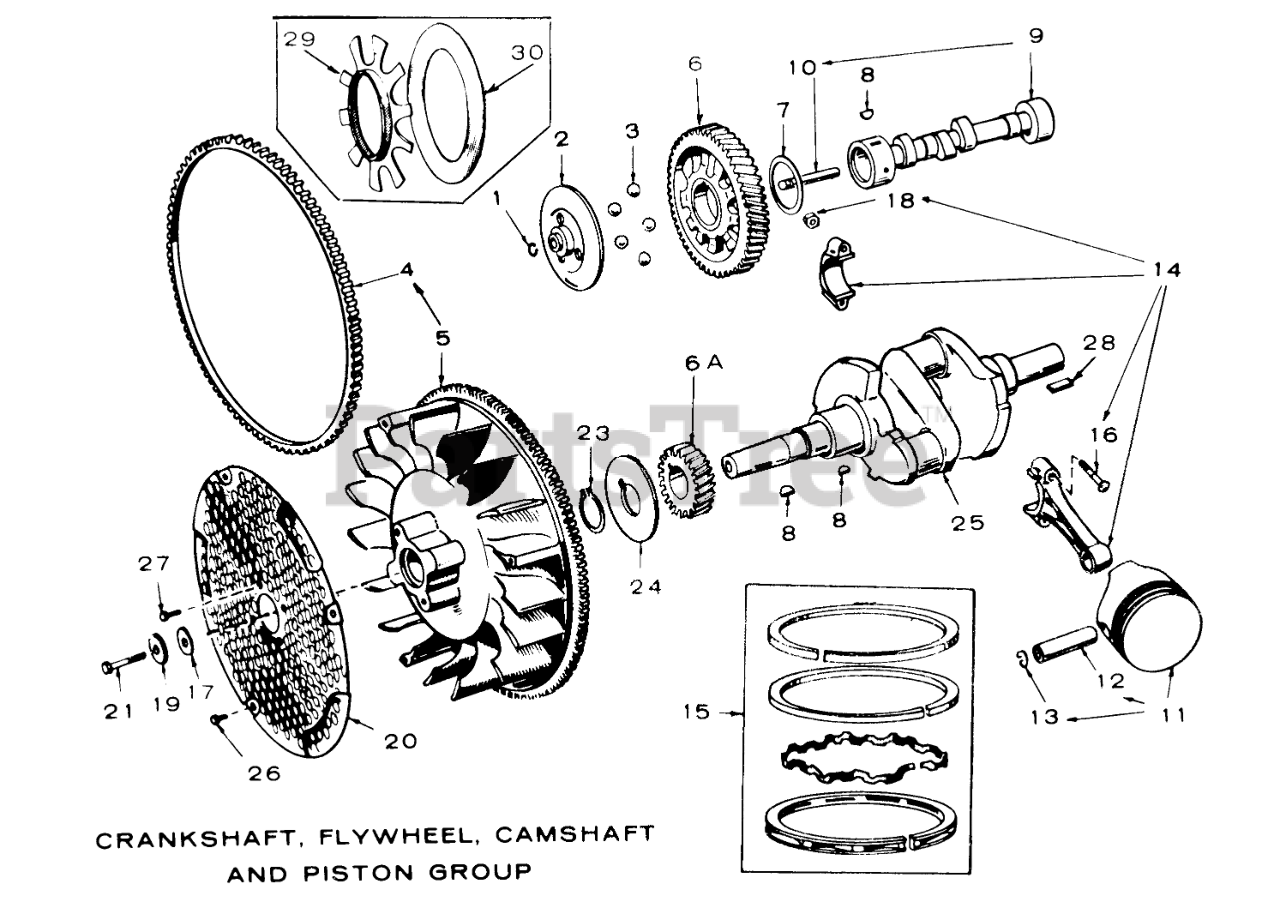

61-20KS02 (D-200) - Toro Lawn Tractor (1976) ONAN 16 HP ENGINE (MODEL #BF-MS/2929 E)(CRANKSHAFT, FLYWHEEL, CAMSHAFT, AND PISTON GROUP) Parts Diagram

Lawn Tractor

ONAN 16 HP ENGINE (MODEL #BF-MS/2929 E)(CRANKSHAFT, FLYWHEEL, CAMSHAFT, AND PISTON GROUP) Parts Diagram

  • Title

Toro 201109

Key, Cam & Crankshaft Gear

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

Toro 201110

Key, Flywheel
(Superseded to 410087)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

Toro 201113

Standard

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

Toro 201114

.005" Oversize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

Toro 201115

.010" Oversize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

Toro 201116

.020" Oversize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

Toro 201117

.030" Oversize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

Toro 201118

.040" Oversize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

Toro 201121

Standard
(Superseded to NN10125)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

Toro 201122

.010" Undersize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

Toro 201123

.020" Undersize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

Toro 201124

.030" Undersize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

Toro 201125

SET-PISTON RING STD

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

Toro 201126

SET-PISTON RING +005

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

Toro 201127

SET-PISTON RING +010

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

Toro 201128

.020" Oversize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

Toro 201129

.030" Oversize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

Toro 201130

.040" Oversize

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

10

Toro 201112

Camshaft Center Pin
(Superseded to 59-0400)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

11

PISTON AND PIN (INCLUDES RETAINING RINGS)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

12

Toro 201119

Wrist Pin
(Superseded to 71-6310)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

13

Toro 201120

Lock

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

14

ROD ASSEMBLY, CONNECTING

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

15

RING SET, PISTON

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

16

Toro 201131

Connecting Rod Bolt (Special)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

17

Toro 201132

Washer 7/16

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

18

Toro 201133

Lock Nut-Connecting Rod

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

19

Toro 201134

Lockwasher 7/16 Flywheel

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

1

Toro 201101

Ring-Camshaft Center Pin
(Superseded to 57-9090)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

20

Toro 201135

Flywheel Guard
(Superseded to NN10457)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

21

Toro 201136

Hex Bolt

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

23

Toro 201137

Retaining Ring
(Superseded to 57-9710)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

24

Toro 201138

Washer-Crankshaft Gear
(Superseded to 57-8140)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

2

Toro 201102

Governor Cup
(Superseded to NN10224)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

3

Toro 201103

Governor Fly Ball
(Superseded to 57-9640)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

4

Toro 201104

Ring Gear
(Superseded to 57-8180)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

5

Toro 201135

Flywheel (Includes Ring Gear and Magnet Ring)
(Superseded to NN10457)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

6A

Toro 201107

Crankshaft Gear
(Superseded to 57-8130)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

6

Toro 201106

Camshaft Gear
(Superseded to 57-8210)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

7

Toro 201108

Camshaft Thrust Washer
(Superseded to 57-8230)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

8

Key

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Not available

9

Toro 201111

Camshaft (Includes Center Pin)

Note: These parts may be ordered under these Wheel Horse Part Numbers, and are available through the Wheel Horse Distribution System.

$

$

Currently unavailable
