61-20KS02 (D-200) - Toro Lawn Tractor (1976) 8.000 SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

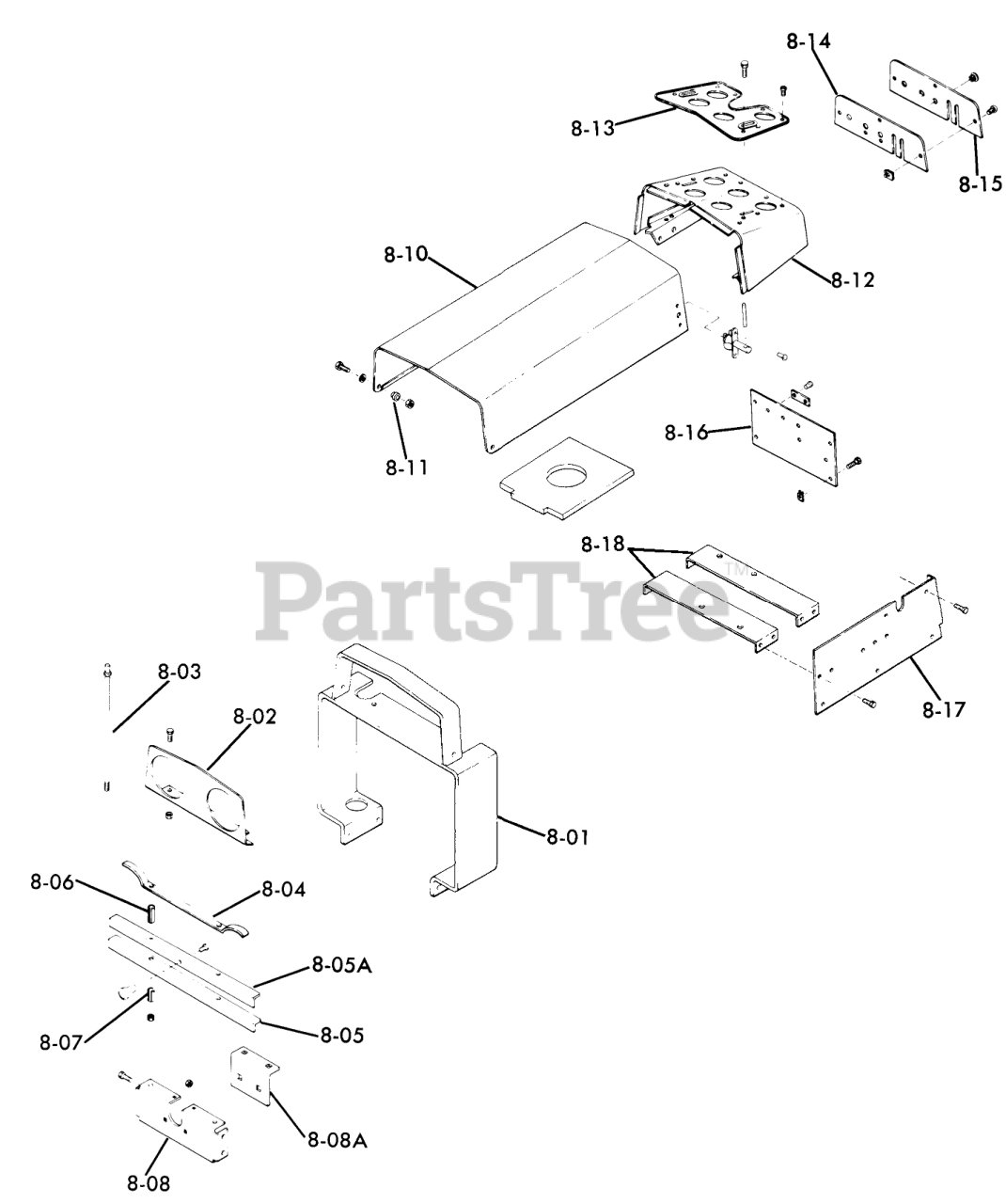

8.000 SHEET METAL AND COVERS Parts Diagram

  • Title

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

Toro 103401

KNOB

$

$

Not available

Toro 911738

SCREW

$

$

Not available

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

Toro 900013

Bolt-Hex

$

$

Not available

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

Toro 103394

Latch

$

$

Not available

Toro 103410

Pin

$

$

Not available

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

Toro 102897

Edge Trim

$

$

Not available

Toro 2708

GROMMET

$

$

Not available

Toro 926235

Screw

$

$

Currently unavailable

Toro 7057

Speed Nut

$

$

Currently unavailable

Toro 960175

Screw

$

$

Not available

Toro 102824

Nut

$

$

Not available

Toro 103796

Panel-Console LH

$

$

Not available

Toro 104754

Battery Bracket

$

$

Not available

Toro 926694

SCREW

$

$

Not available

Toro 103086

INSULATION FOAM

$

$

Not available

Toro 100609

Plate Screws

$

$

Not available

Toro 104868

PLUG BUTTON

$

$

Not available

8-01

Toro 103789

Asy-Grille Shroud

$

$

Not available

8-02

Toro 101799

Light Bracket

$

$

Not available

8-03

Toro 103956

ROD-GRILLE

$

$

Not available

8-04

Toro 101153

SPRING GRILLE

$

$

Not available

8-05A

Toro 105294

ANGLE-GRILLE

$

$

Not available

8-05

Toro 105097

ANGLE-GRILLE

$

$

Not available

8-06

Toro 979213

Spacer

$

$

Not available

8-07

Toro 979179

Spacer

$

$

Not available

8-08A

Toro 103362

Cover

$

$

Not available

8-08

Toro 101911

Cover-Front

$

$

Not available

8-10

Toro 102687

Assy-Hood

$

$

Not available

8-11

Toro 102675

Bushing

$

$

Not available

8-12

Toro 104905

Control Housing

$

$

Not available

8-13

Toro 100609

Plate Screws

$

$

Not available

8-13

Toro 103723

Right Differential Gear

$

$

Not available

8-14

Toro 105095

Plate

$

$

Not available

8-15

Toro 105013

Plate-Rear Instrument

$

$

Not available

8-16

Toro 104922

Panel

$

$

Not available

8-17

Toro 103795

Panel-Console RH

$

$

Not available

8-18

Toro 101080

Battery Support

$

$

Not available

8-19

Toro 103782

Access Cover Plate

$

$

Not available

8-20

Toro 103848

Plate-Fender RH

$

$

Not available

8-21

Toro 105267

Fender

$

$

Not available

8-22

Toro 103226

Channel

$

$

Not available

8-23

Toro 104818

Footrest RH

$

$

Not available

8-24

Toro 102826

Footrest Mat RH

$

$

Not available

8-25

Toro 102712

Filler Plate

$

$

Not available

8-26

Toro 100997

Bracket

$

$

Not available
