61-20KS02 (D-200) - Toro Lawn Tractor (1976) 14.020 P.T.O. CLUTCH Parts Diagram

Lawn Tractor

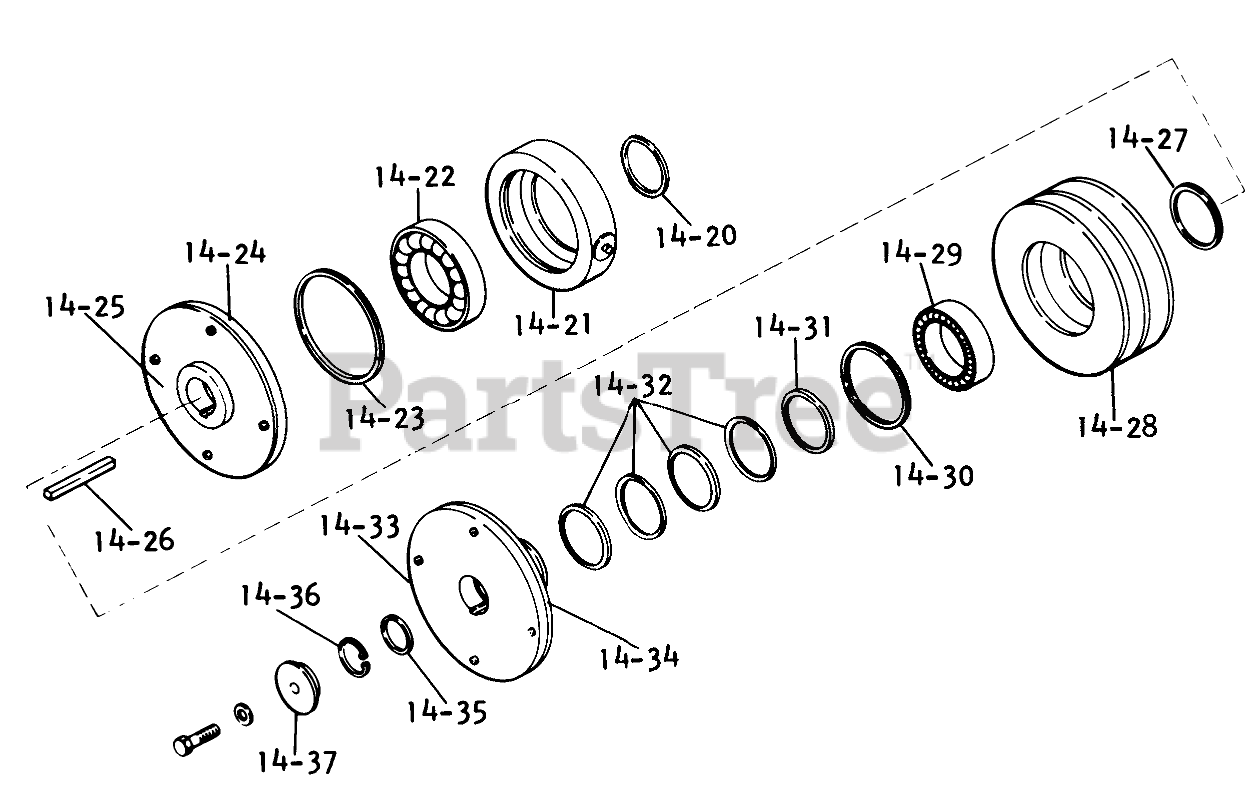

14.020 P.T.O. CLUTCH Parts Diagram

  • Title

Toro 101679

PTO Clutch Complete-S.A.

$

$

Not available

Toro 908198

HHCS

$

$

Not available

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

14-20

Toro 102917

RING EXTERNAL

$

$

Not available

14-21

Toro 102911

ASSY COLLAR

$584.99

$

Usually ships in 3-6 days

0

14-22

Toro 102914

BEARING

$275.99

$

Usually ships in 3-6 days

0

14-23

Toro 102918

RING INTERNAL

$

$

Not available

14-24

Toro 102905

ASSY CLUTCH PLATE

$

$

Not available

14-26

Toro 102934

KEY

$

$

Not available

14-27

Toro 102916

RING EXTERNAL

$

$

Not available

14-28

Toro 102913

PULLEY CLUTCH

$

$

Not available

14-29

Toro 102915

BEARING

$

$

Not available

14-30

Toro 102919

RING INTERNAL

$

$

Not available

14-31

Toro 920245

WASHER

$4.49

$

Usually ships in 3-6 days

0

14-32

Toro 102923

SPRING WASHER

$

$

Not available

14-33

Toro 102908

Assy-Outer Clutch

$

$

Not available

14-35

Toro 920232

WASHER
(Superseded to 9202324)

$1.99

$

In Stock, only 3 left!

0

14-36

Toro 936020

INTERNAL RING

$

$

Not available

14-37

Toro 102920

END CAP

$

$

Not available

14-38

Toro 103036

ASSY HOOK

$

$

Not available

14-39

Toro 103227

ASSY-CLUTCH BAR R
(Superseded to 103227-01)

$

$

Not available

14-40

Toro 102213

TRUNION

$78.99

$

Usually ships in 3-6 days

0

14-41

Toro 103039

CLUTCH ROD

$

$

Not available

14-42

Toro 101439

SPRING

$

$

Not available

14-43

Toro 5840

Bushing
(Superseded to 101441)

$

$

Not available

14-44

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

14-45

Toro 102926

TURN BUCKLE NUT

$

$

Not available

14-46

Toro 102927

Assy-Clutch Rod

$

$

Not available

14-47

Toro 102932

ARM CLUTCH ENGAGE

$199.99

$

Usually ships in 3-6 days

0

14-48

Toro 104760

BRACKET

$

$

Not available

14-49

Toro 102935

ASSY CLUTCH HANDLE

$107.99

$

Usually ships in 3-6 days

0

14-50

Toro 102891

KNOB

$69.99

$

Usually ships in 3-6 days

0

14-51

Toro 104688

Clutch Brake

$

$

Not available

14-53

Toro 104690

Bracket-Brake

$

$

Not available
