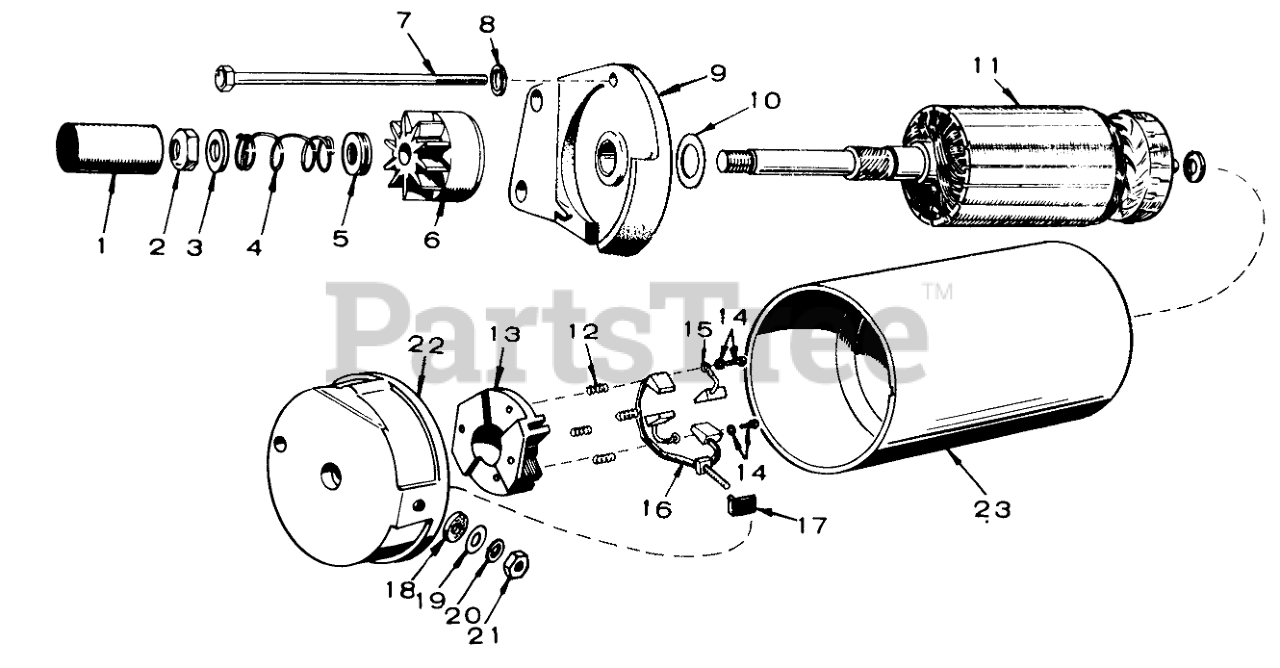

61-20KS01 (D-200) - Toro Lawn Tractor (1976) STARTING MOTOR PARTS GROUP 16 HP ONAN ENGINE Parts Diagram

Lawn Tractor

STARTING MOTOR PARTS GROUP 16 HP ONAN ENGINE Parts Diagram

  • Title

Toro 201232

MOTOR-STARTING (COMP

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

Toro 201245

Repair Kit, Brush, Spring and Stud (Includes Parts Marked )

Note: Included in the 201245 Brush, Spring and Stud Kit.

$

$

Not available

Toro 201245

Repair Kit, Brush, Spring and Stud (Includes Parts Marked )

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

10

Toro 201242

Armature Thrust Washer

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

11

Toro 201243

Armature

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

12

Spring, Brush

Note: Included in the 201244 Cap Assembl

$

$

Not available

13

Brush Holder

Note: Not Sold Separately.

$

$

Not available

14

Screw and Lockwasher-Brush and Brush Holder Mounting

Note: Not Sold Separately.

$

$

Not available

15

Brush, Ground

Note: Included in the 201244 Cap Assembl

$

$

Not available

16

Stud and Brush Assembly Input

Note: Not Sold Separately.

$

$

Not available

17

Bushing, Insulation-Input Stud

Note: Included in the 201244 Cap Assembl

$

$

Not available

18

Washer, Insulation-Input Stud

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

19

Washer, Flat-Input Stud

Note: Included in the 201244 Cap Assembl

$

$

Not available

1

Toro 201233

Dust Cover

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

20

Washer, Lock-Input Stud

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

21

Nut, Securing-Input Stud

Note: Included in the 201244 Cap Assembl

$

$

Not available

22

Toro 201244

Cap Assembly, Commutator (Includes Parts Marked )
(Superseded to 57-9400)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

23

Housing, Starter Motor

Note: Not Sold Separately.

$

$

Not available

2

Toro 201234

Stop Nut
(Superseded to 57-9450)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

3

Toro 201235

Washer-Stop Nut
(Superseded to 57-9450)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

4

Toro 201236

Spring-Anti Drift
(Superseded to 57-9450)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

5

Toro 201237

Dust Cover Spacer
(Superseded to 57-9450)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

6

Toro 201238

Drive Assembly
(Superseded to 57-9420)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

7

Toro 201239

Tie Bolt

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

8

Toro 201240

Lock Washer

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

9

Toro 201241

Cap Assy-Drive End

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available
