61-20KS01 (D-200) - Toro Lawn Tractor (1976) IGNITION GROUP-16 HP ONAN ENGINE Parts Diagram

Lawn Tractor

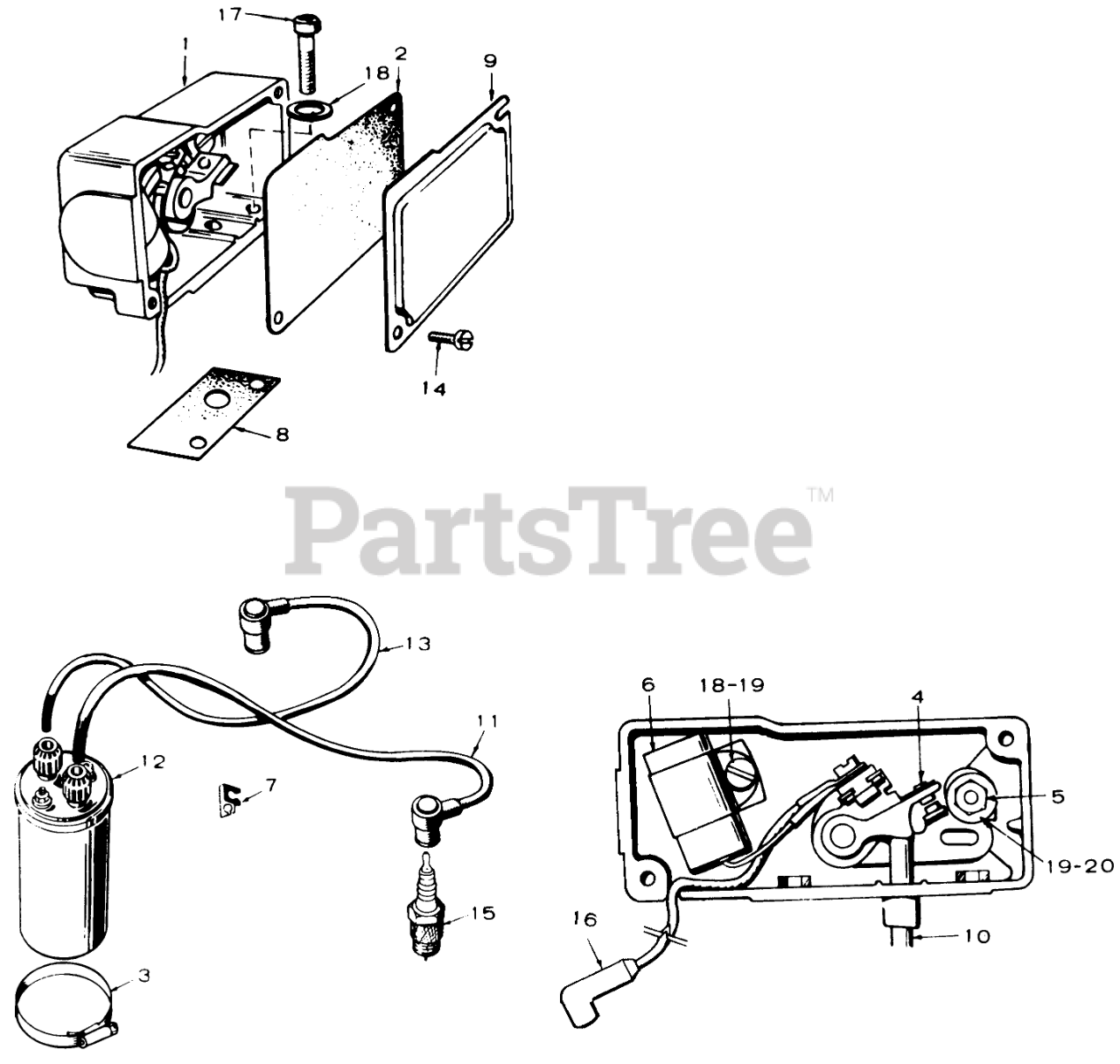

IGNITION GROUP-16 HP ONAN ENGINE Parts Diagram

  • Title

10

Toro 201155

Plunger
(Superseded to 57-9270)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

11

Toro 201156

Cable, Spark Plug (19")

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

12

Toro 201157

Ignition Coil
(Superseded to 57-9310)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

13

Toro 201158

Spark Plug Cable 16 3/4 in

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

14

Toro 201159

Pan HD Screw 8-32 X 5/16

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

15

Toro 201160

Spark Plug

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

16

Toro 201161

Wire Assy-Points To Coil

Note: Included in Breaker Box Assembly.

$

$

Not available

17

Toro 201162

Hex Bolt 1/4-20 X 3/4 in

Note: Included in Breaker Box Assembly.

$

$

Currently unavailable

18

WASHER, LOCK

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

18

Toro 201163

Breaker Box Mounting (1/4")

Note: Included in Breaker Box Assembly.

$

$

Currently unavailable

18

Toro 201164

Condenser Mounting (#8)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

19

SCREW, PAN HEAD

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

19

Toro 201165

Pan HD Screw-Condenser

Note: Included in Breaker Box Assembly.

$

$

Currently unavailable

19

Toro 201166

Pan HD Screw-Breaker Points

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

1

Toro 201147

Box Assembly, Breaker (Includes Parts Marked )

Note: Included in Breaker Box Assembly.

$

$

Not available

20

Toro 201167

Nut-Breaker Points

Note: Included in Breaker Box Assembly.

$

$

Currently unavailable

2

Toro 201148

Gasket-Breaker Box Cover

Note: Included in Breaker Box Assembly.

$

$

Not available

3

Toro 201149

Coil Mounting Clamp

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

4

Toro 201150

SET-BREAKER POINT

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

6

Toro 201151

CONDENSER-BRKER PTS

Note: Included in Breaker Box Assembly.

$

$

Not available

7

Toro 201152

Clip,Spark Plug Cable
(Superseded to 59-0520)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

8

Toro 201153

Gasket,Breaker Box Mounting
(Superseded to 57-9260)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

9

Toro 201154

Breaker Box Cover

Note: Included in Breaker Box Assembly.

$

$

Not available
