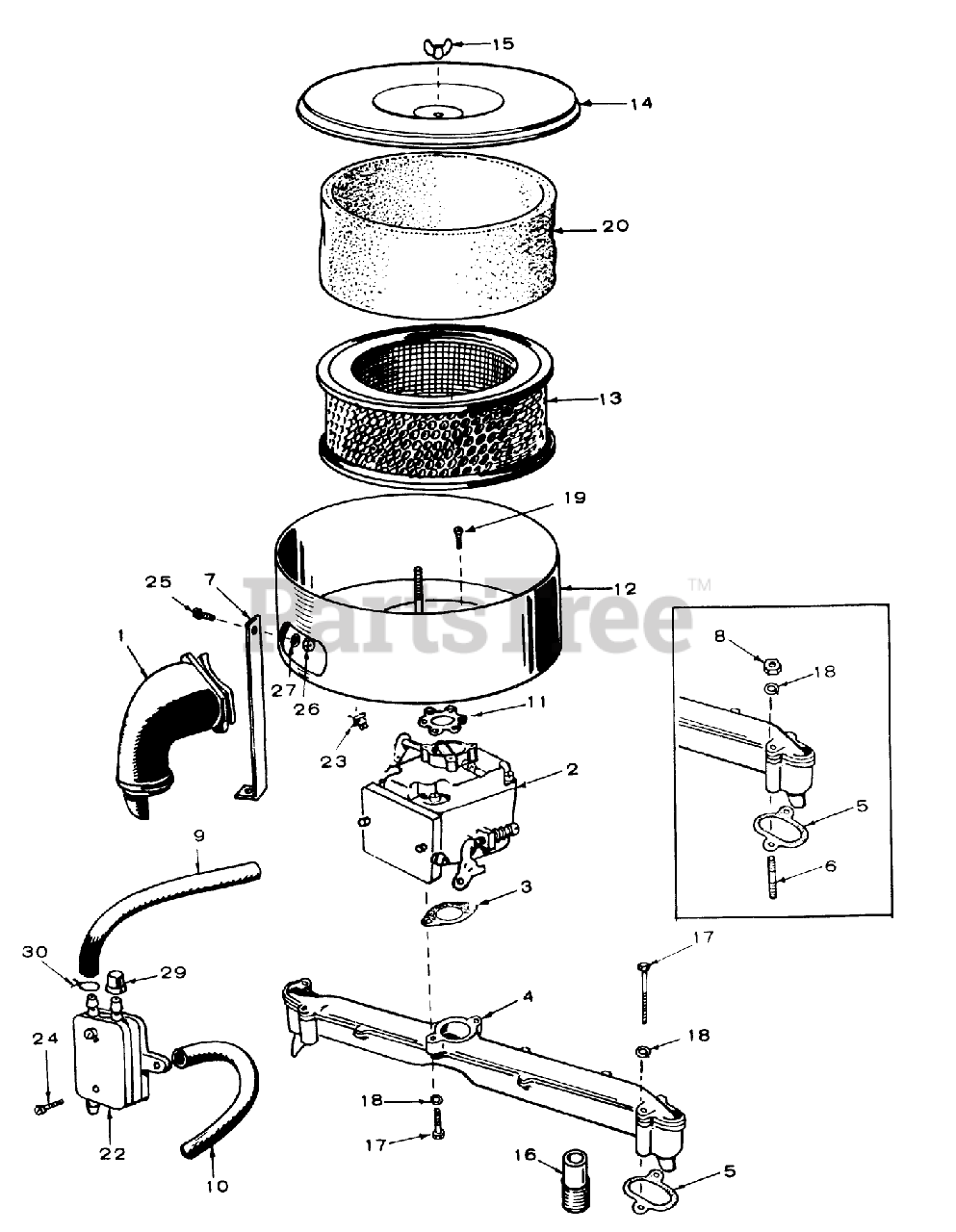

61-20KS01 (D-200) - Toro Lawn Tractor (1976) FUEL SYSTEM GROUP-16 HP ONAN ENGINE Parts Diagram

Lawn Tractor

FUEL SYSTEM GROUP-16 HP ONAN ENGINE Parts Diagram

  • Title

10

Toro 201177

Hose-Fuel Pump Vacuum

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

11

Toro 201178

Gasket, Air Cleaner Mounting

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

12

Toro 201179

Air Cleaner Housing

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

13

Toro 201180

ELEMENT-AIR CLEANER

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

14

Toro 201181

COVER-AIR CLEANER

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

15

Toro 201182

Wing Nut-Air Cleaner Cover

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

16

Toro 201183

Nipple, (1" x 2 1/2")-Exhaust

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

17

SCREW, HEX CAP

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

17

Toro 201184

Hex Bolt-Carburetor Mounting
(Superseded to 3-2115)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

17

Toro 201185

Hex Bolt-Intake Manifold Mounting

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

18

WASHER, LOCK

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

18

Toro 201186

Carburetor Mounting (1/4")

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

18

Toro 201187

Intake Manifold Mounting (5/16")

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

19

Toro 201188

SCREW-RD HD10-32X3/8

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$5.49

$

Usually ships in 3-6 days

0

1

Toro 201168

Air Intake Tube

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

20

Toro 201189

WRAPPER-AIR CLEAN EL

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

22

Toro 201190

Fuel Pump
(Superseded to 57-9080)

Note: See separate group for components.

$

$

Not available

23

Toro 201191

CLIP-BRKT CHOKE CAB

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

24

Toro 201192

Sheet Metal Screw-Fuel Pump

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

25

Toro 201193

Hex Bolt 1/4-20 X 1/2

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

26

Toro 201194

Hex Nut 1/4-20

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

27

Toro 201195

Lockwasher

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

29

Toro 201196

Fuel Pump Cap
(Superseded to 59-0370)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

2

Toro 201169

Carburetor

Note: See separate group for components.

$

$

Not available

30

Toro 201197

Clamp, Hose (7/16")

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

3

Toro 201170

Carburetor Mounting Gasket
(Superseded to 57-8790)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

4

Toro 201171

Intake Manifold

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

5

Toro 201172

Gasket, Intake
(Superseded to 71-5980)

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$14.99

$

In Stock, only 3 left!

0

6

Toro 201173

Stud-Intake Manifold

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

7

Toro 201174

Air Cleaner Support

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Not available

8

Toro 201175

Nut-Intake Manifold

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable

9

Toro 201176

Hose-Fuel Pump To Carburetor

Note: Parts listed are for the Onan 16 HP Engine (Model Num BF-MS/2929 E) and may be ordered under these Wheel Horse Part Numbers. These parts are available through the Wheel Horse Distribution System.

$

$

Currently unavailable
