61-20KS01 (D-200) - Toro Lawn Tractor (1976) FUEL AND EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

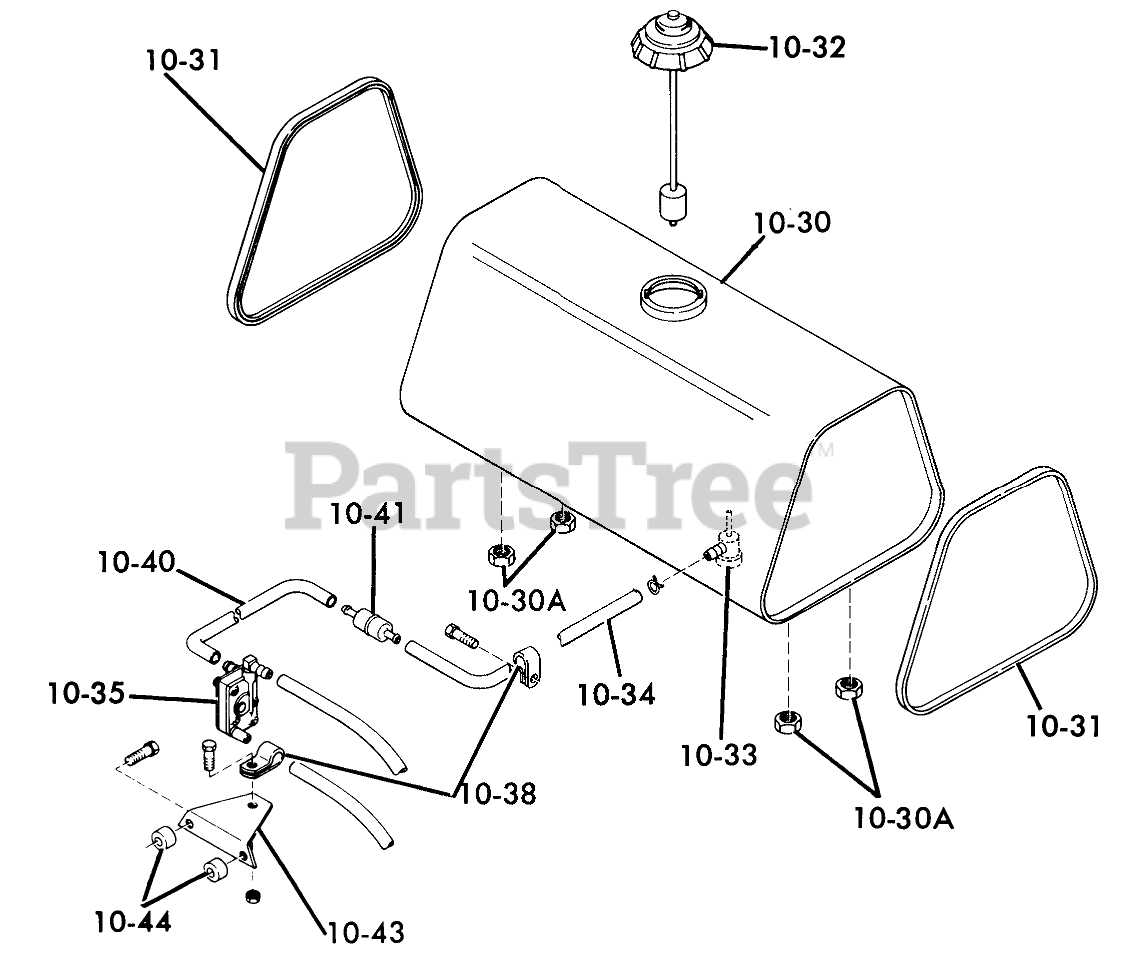

FUEL AND EXHAUST SYSTEMS Parts Diagram

  • Title

10-01

Throttle Bracket 103731 (D-200)-105963 (D-160)

$

$

Not available

10-01

Toro 101410

Screw, Special

$

$

Not available

10-02

Toro 103733

Handle Throttle

$

$

Not available

10-03A

Toro 6331

SPACER CLUTCH ARM

$

$

Not available

10-03

Toro 102892

KNOB

$

$

Not available

10-03

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

10-04

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

10-05

Toro 100365

WASHER-SPRING DISC

$

$

Not available

10-06A

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

10-06A

Toro 920224

Washer-3/8

$

$

Currently unavailable

10-06

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

10-07A

Toro 103730

Rod-Throttle

$

$

Not available

10-07A

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

10-07A

Toro 932007

Cotter Pin 3/32 X 1/2

$

$

Not available

10-07

Toro 105015

Rod-Throttle

$

$

Not available

10-08

Toro 102903

BALL JOINT ASSY R

$

$

Not available

10-08

Toro 915000

Nut

$

$

Not available

10-09

Toro 101410

Screw, Special

$

$

Not available

10-09

Toro 103731

Assy-Bracket

$

$

Not available

10-10

Toro 102711

HANDLE

$

$

Not available

10-11

Toro 102892

KNOB

$

$

Not available

10-11

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

10-12

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

10-13

Toro 100365

WASHER-SPRING DISC

$

$

Not available

10-14

Toro 102863

CABLE CHOKE CONTROL

$

$

Not available

10-14

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

10-16

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

10-16

Toro 7059

CLIP BOWDEN WIRE

$2.99

$

Usually ships in 3-6 days

0

10-16

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

10-16

Toro 960140

Screw
(Superseded to 9601404)

$

$

Not available

10-17

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

10-20

Toro 102361

Starter Wire Clip
(Superseded to 101861)

$

$

Not available

10-20

Toro 105018

Bracket
(Superseded to 107942)

$

$

Not available

10-20

Toro 105096

ASSY-MUFFLER

$

$

Not available

10-20

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

10-21

Toro 102645

ASSY-MUFFLER CLAMP

$15.99

$

In Stock, only 1 left!

0

10-22A

Toro 105019

NIPPLE-EXHAUST 1X4

$

$

Not available

10-22A

Toro 105020

Nipple-1" x 6"

$

$

Not available

10-22

Toro 103096

Nipple

$

$

Not available

10-23

Toro 943367

Nipple 2 1/2 in. Long

$

$

Not available

10-24

Toro 943372

Nipple 5 in. Long

$

$

Currently unavailable

10-25

Toro 943026

ELBOW

$

$

Not available

10-26

Toro 103396

Fitting Exhaust RH

$

$

Not available

10-26

Toro 103397

Fitting Exhaust LH

$

$

Not available

10-26

Toro 908020

Bolt
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

10-26

Toro 908025

HHCS
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

10-26

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

10-27

Toro 104205

TUBE-INLET

$285.99

$

Usually ships in 3-6 days

0

10-30A

Toro 960010

Flanged Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

10-30

Toro 102631

Fuel Tank

$

$

Not available

10-30

Toro 103713

Fuel Tank
(Superseded to 103713-03)

$

$

Not available

10-31

Toro 102898

Edge Trim

$

$

Not available

10-31

Toro 103769

Edge Trim

$

$

Not available

10-32

Toro 103845

GAUGE CAP

$177.99

$

Usually ships in 3-6 days

0

10-32

Toro 2714

Cap-Tank
(Superseded to 102587)

$149.99

$

Usually ships in 3-6 days

0

10-33

Toro 4941

FILTER & VALVE ASSY

$

$

Not available

10-34

Toro 103787

Fuel Line 62
(Superseded to 110521)

$

$

Not available

10-34

Toro 105016

Fuel Hose-Tank To Filter
(Superseded to 110521)

$

$

Not available

10-34

Toro 950153

CLAMP CORBIN 7/16

$

$

Not available

10-35

Toro 103085

Pump Fuel
(Superseded to 27-7000)

$

$

Not available

10-36

Toro 943001

Coupling

$

$

Not available

10-37

Toro 105076

FITTING STRAIGHT

$

$

Not available

10-37

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

10-38

Toro 101861

CLAMP-HOSE

$

$

Not available

10-38

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

10-38

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

10-40A

Toro 102604

Skid Bracket
(Superseded to 100061)

$

$

Not available

10-40

Toro 8714

Hose
(Superseded to 101338)

$

$

Not available

10-40

Toro 950153

CLAMP CORBIN 7/16

$

$

Not available

10-41

Toro 100327

Filter
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

10-41

Toro 950153

CLAMP CORBIN 7/16

$

$

Not available

10-43

Toro 104683

Bracket

$

$

Not available

10-44

Toro 100304

Spacer

$6.99

$

Usually ships in 3-6 days

0

10-44

Toro 101862

Clamp

$

$

Not available
