61-16OS02 (D-160) - Toro Lawn Tractor (1976) 14.100 P.T.O. CLUTCH D-160 Parts Diagram

Lawn Tractor

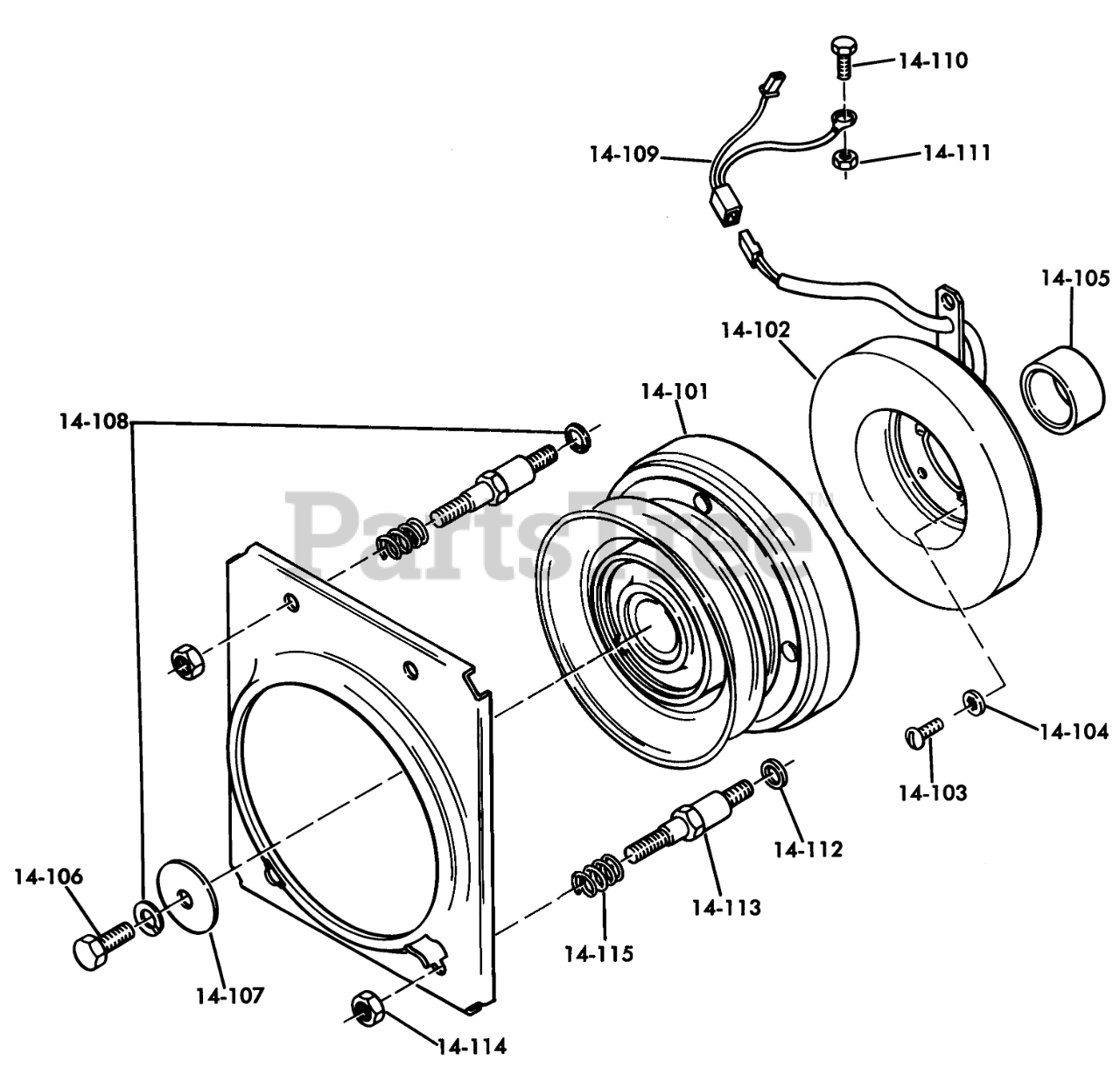

14.100 P.T.O. CLUTCH D-160 Parts Diagram

  • Title

14-101

Toro 105008

Rotor Assembly

$

$

Not available

14-102

Toro 105009

Field Assembly

$

$

Not available

14-103

Toro 910807

Screw
(Superseded to 3250-31)

$0.99

$

Usually ships in 3-6 days

0

14-104

Toro 920152

Lockwasher Internal

$

$

Not available

14-105

Toro 105012

Sleeve

$

$

Not available

14-106

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

14-107

Toro 105041

Washer .406 x 1.75 x .187

$

$

Not available

14-108

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

14-109

Toro 105025

Assy-Wire and Plug

$

$

Not available

14-110

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

14-111

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

14-112

Toro 105042

Washer-Copper

$

$

Currently unavailable

14-113

Toro 105010

Stud

$

$

Not available

14-114

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

14-115

Toro 105011

Spring

$

$

Not available
