61-16OS01 (D-160) - Toro Lawn Tractor (1976) Hitches Parts Diagram

Lawn Tractor

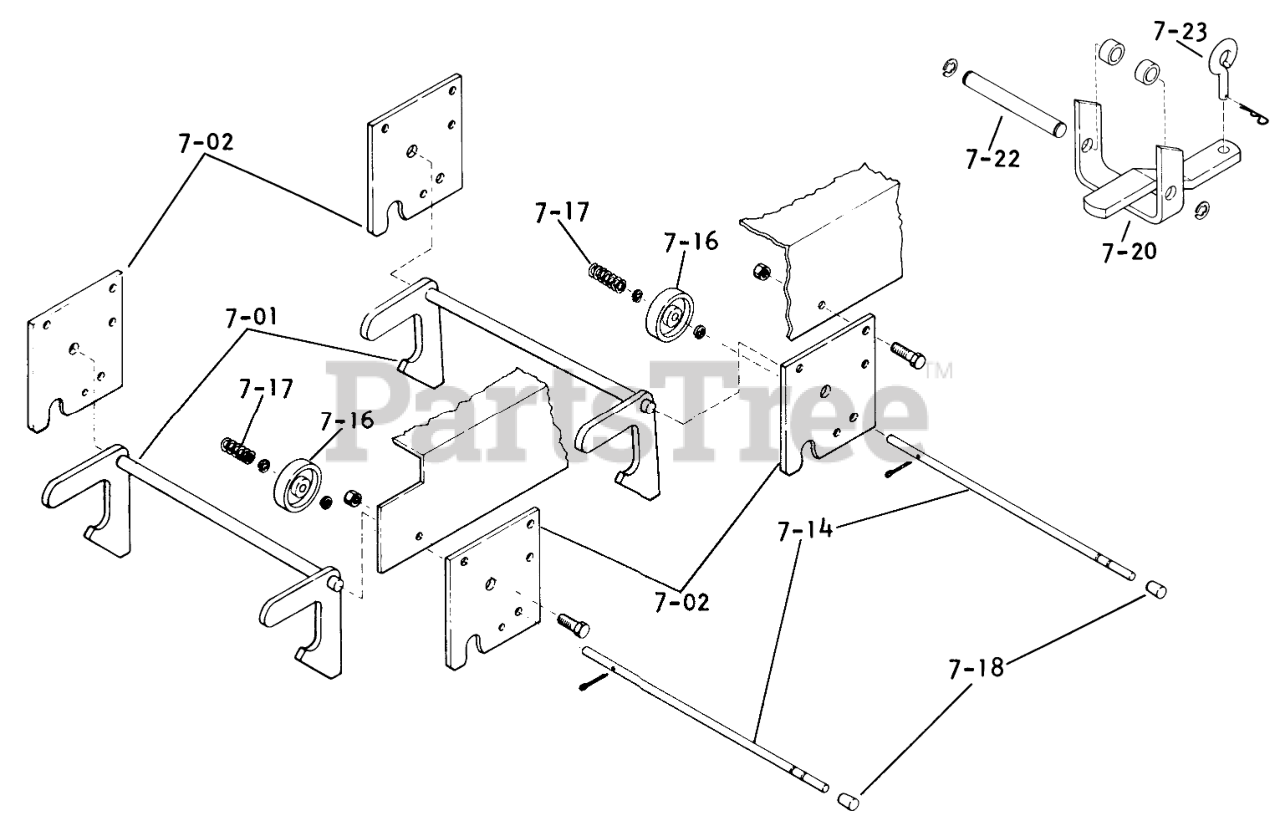

Hitches Parts Diagram

  • Title
7-01

Toro 101014

DISCONTINUED

$

$

Not available

7-02

Toro 101013

DISCONTINUED

$

$

Not available

7-02

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

7-02

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 16

0

7-14

Toro 100995

DISCONTINUE

$

$

Not available

7-16

$31.99

$

Usually ships in 3-6 days

0

7-16

Toro MW-4564

Lock Rod

$

$

Currently unavailable

7-16

Toro 932009

See Supercession: 3272-9
(Superseded to 3272-9)

$0.99

$

Usually ships in 3-6 days

0

7-17

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

7-18

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

7-20

Toro 8270

DISCONTINUED

$

$

Not available

7-22

Toro 105269

PIN-STATIONARY HITCH

$

$

Not available

7-22

Toro 8272

DISCONTINUED

$

$

Not available

7-22

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

7-23

Toro 1813

See Supercession: 106634
(Superseded to 106634)

$

$

Not available

7-23

Toro 933105

Hairpin

$

$

Not available
