61-16KS03 (C-160) - Toro Lawn Tractor (1976) HYDRAULIC SYSTEM- ONLY Parts Diagram

Lawn Tractor

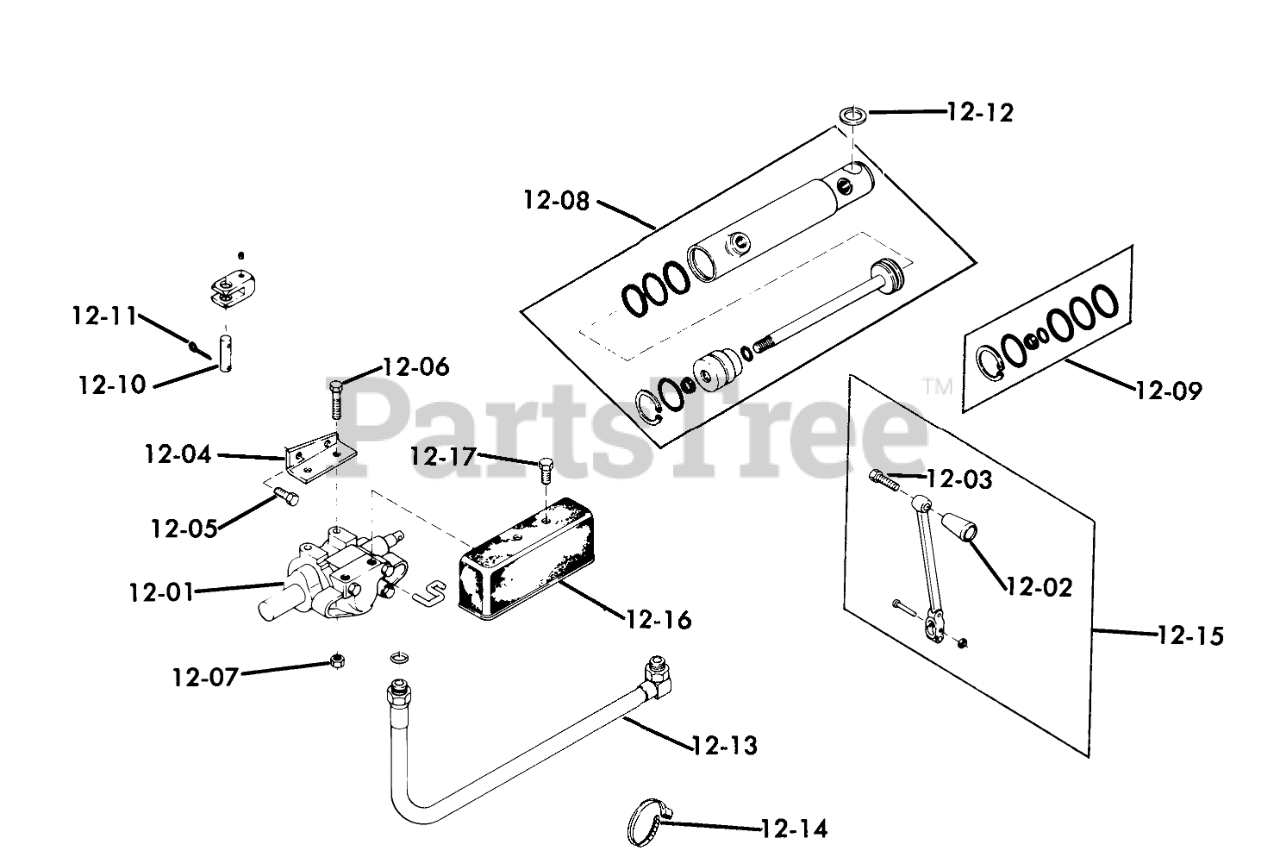

HYDRAULIC SYSTEM- ONLY Parts Diagram

  • Title

12-01

Toro 103204

Valve

$

$

Not available

12-01

Toro 101538

Ring Kit
(Superseded to 110976)

$

$

Not available

12-01

Toro 101536

Spool Cap Kit

$

$

Not available

12-02

Toro 102892

KNOB

$

$

Not available

12-03

Toro 960154

SCREW

$

$

Not available

12-04

Toro 6620

SUPPORT-VALVE

$

$

Not available

12-05

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

12-06

Toro 908007

Bolt 1/4-20 X 1 1/2
(Superseded to 321-9)

$4.99

$

In Stock, only 2 left!

0

12-07

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

Usually ships in 3-6 days

0

12-08

Toro 105254

CYLINDER ASSY R

$

$

Not available

12-09

Toro 101699

S/A O-RING&GASKET AS

$166.99

$

Usually ships in 3-6 days

0

12-10

Toro 6619

PIN

$

$

Not available

12-11

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

12-12

Toro 4064

Spacer
(Superseded to 703269)

$128.99

$

Usually ships in 3-6 days

0

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

12-13

Toro 103213

16" Hose Assembly

$

$

Not available

Toro 103214

HOSE HYDRAULIC 19"

$274.99

$

Usually ships in 3-6 days

0

Toro 104983

ASSY-HYDRAULIC HOSE

$

$

Not available

Toro 101423

HYD HOSE ASSY

$

$

Not available

12-14

Toro 100571

PLASTIC TIE

$

$

Not available

12-15

Toro 101537

Assy-Handle
(Superseded to 105145)

$

$

Not available

12-16

Toro 105253

Cover-Valve

$

$

Not available

12-17

Toro 926693

Bolt
(Superseded to 9266934)

$8.99

$

In Stock, Qty 7

0
